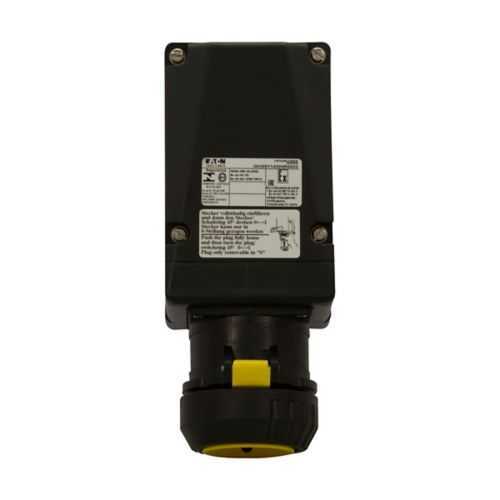

Eaton GHG5124407R3001 Hazardous Area Interlock - IP66
Part Number: GHG5124407R3001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG5124407R3001
Category
Quick Summary
The Eaton Crouse-Hinds GHG5124407R3001 hazardous area interlock receptacle is designed to provide secure, failsafe power isolation in demanding industrial environments. In practice, keeping reliable interlock connections in hazardous zones can be costly, labor-intensive, and prone to miswiring during maintenance. It meets IP66 and NEMA 4X protection, plus NEC/CEC and IEC hazardous-location standards for Class I, Zone 1/2 and Division 2 installations, ensuring compliance across global sites. Designed for IEC 60309 devices and nylon housing, it supports quick field wiring, reliable mating with fixed or portable equipment, and long-term cost savings through rugged operation. This combination minimizes downtime during swaps and improves safety audits, aligning with plant-wide reliability targets.
Product Information
Extended Description
GHG5124407R3001 Eaton Crouse-Hinds: Eaton's Crouse-Hinds series IEC 60309 hazardous area interlock receptacle, 32A, Three-wire, four-pole, Nylon, M32, 500 Vac
Product Name
Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle
Catalog Number
GHG5124407R3001
Product Length/Depth
4.7 in
Product Height
11.5 in
Product Width
6.6 in
Product Weight
5.11 lb
EAN
4250217427114
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
32A
Trade size
M32
Configuration
Three-wire, four-pole
Voltage rating
500 Vac
Material
Nylon
IEC 60309 Hazardous Area Pin and Sleeve Devices catalog page
Eaton Specification Sheet - GHG5124407R3001
Feature → 32A current rating at 500 Vac in a three-wire, four-pole configuration. Business Impact → Enables full-load interlock operation with safe, controlled current, reducing overload risk and electrical faults. Application → Suitable for IEC 60309 hazardous area interlock devices in Class I Zone 1/2 locations, including offshore platforms and chemical plants. Feature → IP66 ingress protection and NEMA 4X enclosure ratings. Business Impact → Delivers reliable performance in wet, dusty, and washdown environments, lowering maintenance costs and downtime. Application → Ideal for outdoor, marine, and chemical processing facilities where rugged interlocks are required. Feature → NEC/CEC IEC standards compliance plus Hazardous Location ratings (Class I, Zone 1/2; Division 2). Business Impact → Simplifies regulatory approvals and cross-border installation, reducing audit risk. Application → Supports global deployment across multi-site operations. Feature → IEC 60309 compatibility with nylon housing and M32 trade size. Business Impact → Facilitates fast field wiring, modular mounting, and straightforward retrofits. Application → Perfect for upgrades in existing plants and new hazardous-area installations. Feature → Compact footprint and robust construction (4.7 in L, 11.5 in H, 6.6 in W; 5.11 lb). Business Impact → Eases mounting in enclosures and reduces installation time, improving project timelines. Application → Beneficial for retrofit projects and new builds in Class I, Zone 1/2 environments.
Get a Quick Quote for a Eaton Crouse-Hinds GHG5124407R3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG5124407R3001?
Enquire Now
FAQs
To install the GHG5124407R3001, mount the interlock receptacle in a compliant enclosure using the mounting hardware, ensure the M32 threaded connection is clean, and route conductors for the three-wire four-pole configuration. Tighten lugs to the manufacturer’s torque specification, verify the 500 Vac rating, and confirm IP66 integrity with appropriate gaskets and seals to maintain hazardous-area protection.
This interlock receptacle is rated for 32A at 500 Vac, with a three-wire, four-pole configuration. It features IP66 ingress protection and a NEMA 4X enclosure rating, providing robust protection against dust, water, and harsh environments. It complies with NEC/CEC IEC standards for hazardous locations, including Class I Zone 1/ Zone 2 and Division 2 classifications.
Yes. The device is designed for hazardous area environments typical of offshore platforms and chemical processing plants. Its nylon housing, IP66/NEMA 4X protection, and IEC 60309 compatibility deliver reliable operation under moisture, chemical exposure, and washdown, while meeting Class I Zone 1/2 and Division 2 regulatory requirements for global deployment.
The interlock complies with NEC/CEC IEC standards for hazardous locations, and it carries IP66 protection and NEMA 4X enclosure ratings. It supports Class I Zone 1/2 and Division 2 installations, ensuring regulatory alignment across multiple international codes and simplifying site acceptance during audits.
The GHG5124407R3001 interlock reduces downtime through rugged, durable nylon construction and sealed protection that resists moisture and dust ingress. Its standardized IEC 60309 compatibility streamlines retrofits and field wiring, lowering commissioning time and maintenance costs, while improving safety and uptime in hazardous-area facilities, contributing to a favorable return on investment.
