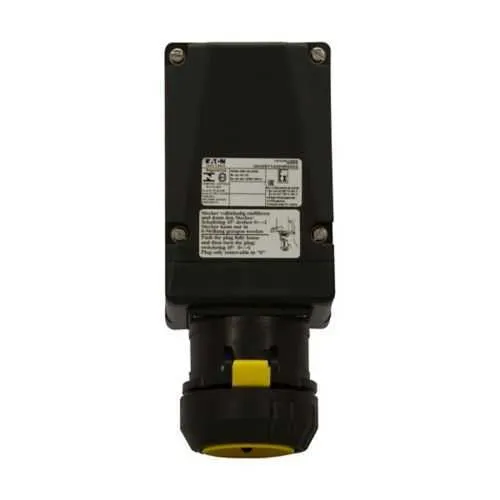

Eaton Crouse-Hinds GHG5144506R3001 Interlock Receptacle - IP66
Part Number: GHG5144506R3001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG5144506R3001
Category
Quick Summary
Interlock receptacle is a rugged solution for safe, hazardous-area power connections in industrial plants. In demanding environments, inconsistent ratings, corrosion, and difficult installations slow maintenance and elevate risk. Certified for NEC/CEC IEC, IP66 protection, and NEMA 4X, it supports Zone 1/Zone 2 hazardous locations with a durable Nylon housing. This design minimizes downtime while simplifying compliance, offering a reliable, standards-aligned connection for IEC 60309 systems and other hazardous-area devices.
Product Information
Extended Description
GHG5144506R3001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle, 63A, Four-wire, five-pole, Nylon, M40, 380-415 Vac
Product Name
Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle
Catalog Number
GHG5144506R3001
Product Length/Depth
7.9 in
Product Height
18.7 in
Product Width
8.9 in
Product Weight
17.22 lb
EAN
4250959904089
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
63A
Trade size
M40
Configuration
Four-wire, five-pole
Voltage rating
380-415 Vac
Material
Nylon
IEC 60309 Hazardous Area Pin and Sleeve Devices catalog page
Eaton Specification Sheet - GHG5144506R3001
Feature → Business Impact → Application: The 63A, 380-415 Vac, four-wire five-pole configuration supports high-current interlocks with clean, through-the-wall installation, reducing wiring errors and enabling faster maintenance in assembly lines and processing plants. The IEC 60309 hazardous-area interlock design standardizes plug-in connections, lowering training time and mis-matches across sites. Nylon housing provides chemical resistance and abrasion durability, extending service life in offshore, mining, and chemical facilities, while reducing replacement costs. IP66 and NEMA 4X protection minimize ingress from washdowns and harsh environments, translating to lower corrosion risk and fewer unscheduled outages in washdown zones and outdoor installations. Area classification for Hazardous/Classified Locations, plus NEC/CEC IEC compliance, guarantees regulatory alignment and safer operation in Zone 1/Zone 2 environments. M40 trade size compatibility ensures easy integration with existing IEC 60309 devices and accessories, supporting scalable upgrades without rewiring.
Get a Quick Quote for a Eaton Crouse-Hinds GHG5144506R3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG5144506R3001?
Enquire Now
FAQs
Plan for zone classification and regulatory compliance, verify enclosure compatibility, and follow NEC/CEC IEC requirements. Use proper mounting hardware and strain relief, ensure IP66/NEMA 4X protection is maintained, and verify correct wiring for the four-wire, five-pole configuration. Use appropriate torque values for connections and confirm sealing integrity after installation to preserve hazardous-location ratings.
Yes. This interlock receptacle is designed for IEC 60309 hazardous-area devices and uses the M40 trade size. The four-wire, five-pole configuration delivers a 63 A rating at 380–415 Vac, aligning with standard IEC 60309 equipment. Its Nylon body supports chemical resistance, aiding long-term compatibility in harsh environments.
It carries NEC hazardous ratings for Class I locations, Zone 1 and Zone 2, along with Division 2 capability, ensuring safe operation where flammable atmospheres may exist. IP66 ingress protection and NEMA 4X enclosure resilience further enhance suitability for harsh industrial areas, offshore platforms, and mining sites, reducing ignition risk and downtime.
The device is certified for Hazardous/Classified Locations and complies with NEC/CEC IEC standards. It provides IP66 ingress protection, NEMA 4X enclosure rating, and NEC hazardous ratings for Class I, Zone 1, Zone 2, as well as Division 2. These certifications support rigorous regulatory requirements in industrial facilities.
The robust Nylon housing and IP66/NEMA 4X protection reduce ingress-related wear, lowering maintenance frequency and spare-part costs. Standardized IEC 60309 compatibility minimizes training and replacement errors, shortening downtime during interlock replacements or upgrades and delivering a favorable total cost of ownership over the equipment lifecycle.
