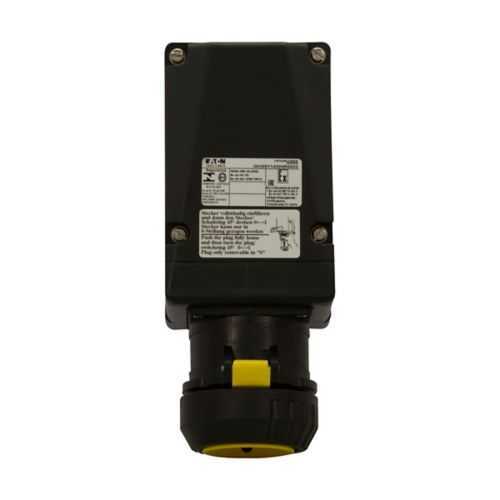

Eaton Crouse-Hinds GHG5154405R3001 Interlock Receptacle - 690 Vac IP66
Part Number: GHG5154405R3001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG5154405R3001
Category
Quick Summary
GHG5154405R3001 interlock receptacle enables safe, controlled power interlocks for IEC 60309 systems in hazardous locations. This design addresses the common challenge of achieving reliable interlock functionality in Class I, Zone 1 environments where safety and continuous operation matter most. It carries critical certifications such as NEC/CEC IEC standards, IP66 ingress protection, and NEMA 4X enclosure rating, ensuring robust performance in demanding conditions. The solution integrates a nylon body for chemical resistance with a sturdy footprint, supporting easy installation and long-term reliability. By aligning with industry standards while delivering installation-friendly features, this receptacle helps reduce downtime and improve maintenance efficiency in industrial automation and process industries.
Product Information
Extended Description
GHG5154405R3001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle, 125A, Three-wire, four-pole, Nylon, M63, 690 Vac
Product Name
Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle
Catalog Number
GHG5154405R3001
Product Length/Depth
10 in
Product Height
21.1 in
Product Width
8.9 in
Product Weight
17.22 lb
EAN
4250959903983
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
125A
Trade size
M63
Configuration
Three-wire, four-pole
Voltage rating
690 Vac
Material
Nylon
IEC 60309 Hazardous Area Pin and Sleeve Devices catalog page
Eaton Specification Sheet - GHG5154405R3001
Feature: 125A amperage rating with 690 Vac voltage in a three-wire, four-pole configuration. Business Impact: Supports high-current interlocks with reliable switching, reducing risk of accidental energization and enabling safe equipment lockout procedures. Application: Suitable for heavy-duty automation lines on oil, gas, and chemical plants where IEC 60309 interlocks are standard. Long-tail keywords: IEC 60309 interlock receptacle, 125A interlock, three-wire four-pole, M63 trade size.Feature: IP66 ingress protection and NEMA 4X enclosure. Business Impact: Delivers superior dust, water, and corrosion resistance for harsh environments, lowering maintenance costs and downtime. Application: Outdoor racks, offshore platforms, and marine installations requiring rugged electrical interfaces. Long-tail keywords: IP66 hazardous location receptacle, NEMA 4X rated interlock, rugged outdoor electrical server, marine equipment connector.Feature: Nylon construction with molded housing. Business Impact: Combines chemical resistance with lightweight, simplifying handling and installation while sustaining long service life. Application: Chemical processing facilities and paint shops where chemical exposure is a concern. Long-tail keywords: Nylon interlock housing, chemical-resistant receptacle, durable electrical enclosure.Feature: IEC 60309 compatibility and M63 trade size. Business Impact: Ensures standardization across multi-vendor installations, promoting compatibility and faster commissioning. Application: Industrial plants with modular IEC 60309 devices and modular power distribution. Long-tail keywords: M63 connector, IEC 60309 device compatibility, hazardous-area connector standard.Feature: Certifications for hazardous locations (Class I, Zone 1, Zone 2, Division 2) and safety compliance. Business Impact: Supports regulatory compliance and safer start-up/shutdown sequences, reducing risk of noncompliance penalties. Application: Refineries, chemical plants, and offshore sites where strict classification applies. Long-tail keywords: NEC hazardous rating, Class I Zone 1, hazardous location certification, compliance-ready interlock.
Get a Quick Quote for a Eaton Crouse-Hinds GHG5154405R3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG5154405R3001?
Enquire Now
FAQs
Yes. The GHG5154405R3001 is designed as an IEC 60309 hazardous-area interlock receptacle with a M63 trade size and a three-wire, four-pole configuration, enabling seamless integration with standard IEC 60309 plugs and matching adapters for quick commissioning in industrial facilities.
It carries NEC/CEC IEC standards and supports Hazardous/Classified Locations with Class I Zone 1, Zone 2, and Division 2 ratings. It is IP66 sealed and NEMA 4X rated, providing robust protection in harsh environments.
The unit is 10 in deep, 21.1 in high, and 8.9 in wide, with an approximate weight of 17.22 lb. These dimensions influence mounting footprint and enclosure clearances, so plan panel cutouts and positioning to accommodate the interlock’s size while preserving access for maintenance.
Ideal for oil and gas, chemical processing, refineries, offshore platforms, and other hazardous-area automation projects requiring reliable interlock control, durable construction, and compliance with IEC 60309 standards.
By delivering proven interlock reliability in hazardous locations and reducing unplanned downtime, the GHG5154405R3001 supports longer service intervals, lower maintenance costs, and faster fault resolution, enhancing overall project ROI in mission-critical systems.
