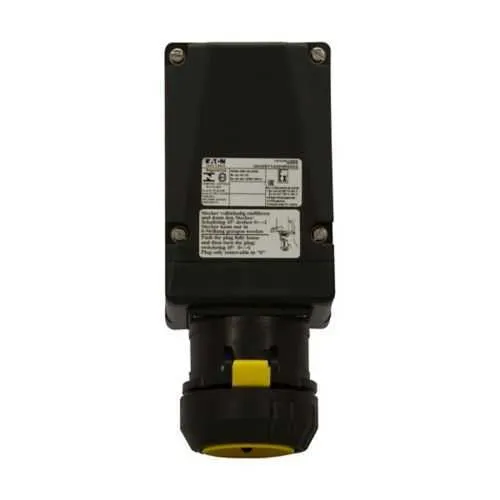

Eaton GHG5154407L3001 Hazardous Interlock Receptacle - IP66
Part Number: GHG5154407L3001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG5154407L3001
Category
Quick Summary
Eaton Crouse-Hinds hazardous area interlock receptacle enables safe power control in hazardous locations such as chemical plants and oil facilities. This design minimizes the risk of accidental energization during maintenance and streamlines lockout/tagout procedures, helping operators stay compliant with safety protocols. It carries robust certifications that matter in the field—IEC 60309 standards for industrial connectors, IP66 ingress protection, and NEMA 4X enclosure ratings—so teams can deploy with confidence across indoor and outdoor environments. Its area classifications include Hazardous/Classified Locations with NEC/CEC IEC compliance, enabling global deployment. Beyond safety, the device supports reliable 480 VAC distribution and easy compatibility with 1-1/2 inch trade fittings, delivering uptime, reduce risk, and operational efficiency.
Product Information
Extended Description
GHG5154407L3001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle, 100A, Three-wire, four-pole, Nylon, 1-1/2", 3 phase 480 Vac
Product Name
Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle
Catalog Number
GHG5154407L3001
Product Length/Depth
10 in
Product Height
21.1 in
Product Width
8.9 in
Product Weight
17.22 lb
EAN
4250217436475
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
100A
Trade size
1-1/2"
Configuration
Three-wire, four-pole
Voltage rating
480 Vac
Material
Nylon
IEC 60309 Hazardous Area Pin and Sleeve Devices catalog page
Eaton Specification Sheet - GHG5154407L3001
High current capability and voltage: The receptacle is rated for 100A at 480 VAC in a three-wire, four-pole configuration. Business impact: This supports heavy motor loads and pump circuits common in hazardous-area installations, reducing the need for parallel splices or auxiliary gear. Application: Ideal for 3-phase equipment such as chemical pumps and explosion-protected conveyors in refineries and plants. Protection and standards: IP66 and NEMA 4X provide robust enclosure protection against dust, water jets, and corrosive environments. Business impact: increases service life in harsh environments and reduces maintenance costs. Application: Suitable for outdoor installations and wet locations. Material and footprint: Nylon housing resists chemicals and offers good dielectric strength, while the 1-1/2 inch trade size fits standard IEC 60309 connectors. Product dimensions: 10 in length, 21.1 in height, 8.9 in width, and weight 17.22 lb. Business impact: simplifies mounting and reduces installation time. Configuration and interlock protection: Three-wire, four-pole configuration ensures correct phase and grounding sequencing. Business impact: reduces mis-wiring risk and enhances operator safety. Application: Works with safety circuits and lockout/tagout schemes in hazardous-area power systems. Compatibility and installation ease: Designed for IEC 60309 hazardous-area devices and standard cables; seamless integration with Eaton interlock hardware; improved procurement with a single family of devices.
Get a Quick Quote for a Eaton Crouse-Hinds GHG5154407L3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG5154407L3001?
Enquire Now
FAQs
To install the GHG5154407L3001 in a hazardous area, follow IEC 60309 connector guidelines and use a compatible enclosure. Mount the unit using its 1-1/2 inch trade size, connect the three-wire, four-pole wiring for 480 VAC, and verify IP66 sealing and NEMA 4X ratings are intact. Ensure the installation complies with NEC/CEC IEC standards and Zone 1/Class I requirements before energizing.
Key specs include a 100 A amperage rating, 480 VAC voltage rating, and a three-wire, four-pole configuration. The nylon housing provides chemical resistance, with IP66 ingress protection and a NEMA 4X enclosure. The unit fits a 1-1/2 inch trade size and is designed for hazardous-area IEC 60309 applications in heavy-duty industrial environments.
Yes. The unit is specified for Class I, Zone 1 (and related NEC/IEC classifications) and features IP66/NEMA 4X protection to withstand dust, water exposure, and harsh environments typical of Zone 1 facilities. Ensure proper wiring and adherence to local codes for compliant operation in hazardous locations.
The interlock carries NEC/CEC IEC standards, IP66 ingress protection, and NEMA 4X enclosure ratings, plus Hazardous/Classified Location area classification and Class I Zone 1/Division 2/Zone 2 ratings. These certifications ensure safe operation, regulatory compliance, and reliable performance in hazardous sites such as refineries, chemical plants, and offshore facilities.
The interlock reduces unintentional energization, improves lockout/tagout safety, and lowers maintenance downtime in hazardous environments. Its durable nylon body resists chemicals, contributing to longer service life. Combined with IEC 60309 compatibility and standardized fittings, this yields lower life-cycle costs and greater uptime in critical process areas.
