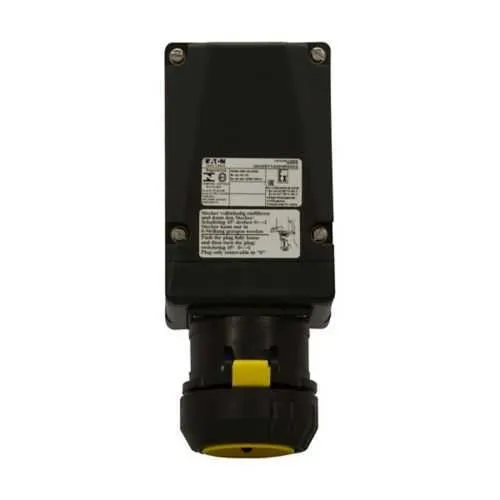

Eaton Crouse-Hinds GHG5154407R3001 Interlock - IP66
Part Number: GHG5154407R3001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG5154407R3001
Category
Quick Summary
Eaton Crouse-Hinds GHG5154407R3001 hazardous area interlock receptacle enables safe, reliable power connections in hazardous industrial environments. A common challenge is maintaining uptime while meeting strict code requirements and protecting personnel from ignition risks in explosive atmospheres. This unit meets NEC/CEC IEC standards, IP66 sealing, and NEMA 4X protection, with Class I Zone 1 and Zone 2 ratings for versatile deployment. Built for IEC 60309 systems and modular power distribution, it delivers faster installations, lower maintenance, and clearer total cost of ownership for OEMs and maintenance teams.
Product Information
Extended Description
GHG5154407R3001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle, 125A, Three-wire, four-pole, Nylon, M63, 500 Vac
Product Name
Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle
Catalog Number
GHG5154407R3001
Product Length/Depth
10 in
Product Height
21.1 in
Product Width
8.9 in
Product Weight
17.22 lb
EAN
4250959903907
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
125A
Trade size
M63
Configuration
Three-wire, four-pole
Voltage rating
500 Vac
Material
Nylon
IEC 60309 Hazardous Area Pin and Sleeve Devices catalog page
Eaton Specification Sheet - GHG5154407R3001
125A at 500 VAC with a three-wire, four-pole configuration provides a robust power interlock for heavy loads, supporting reliable startup sequences and safe disconnection in demanding environments. This directly translates to reduced risk of accidental energization during maintenance and faster handoffs between shift changes, improving overall plant safety and productivity. The IP66 and NEMA 4X protection prevents ingress from dust, water, and chemical sprays, minimizing unscheduled downtime and corrosion-related failures in outdoor or process areas. Nylon construction delivers chemical resistance and lighter weight without compromising durability, enabling easier handling and installation in tight equipment spaces while maintaining long-term reliability. The hazardous-location ratings and NEC compliance ensure you stay aligned with stringent regulatory requirements, reducing audit findings and costly rework in compliance-driven projects. With IEC 60309 compatibility and a standardized M63 trade size, installation is straightforward across OEM and retrofit programs, supporting scalable power distribution without custom parts. Overall, this interlock receptacle offers a compelling blend of safety, performance, and lifecycle cost benefits for hazardous-area electrical installations.
Get a Quick Quote for a Eaton Crouse-Hinds GHG5154407R3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG5154407R3001?
Enquire Now
FAQs
Installation requires adherence to NEC/CEC IEC guidelines for Class I, Zone 1 locations. The device utilizes standard IEC 60309 mounting footprints with a 10 inch depth and 8.9 inch width, enabling straightforward panel or enclosure integration. Ensure proper enclosure sealing, grounding, and cord grips are used to maintain IP66/NEMA 4X protection and maintain safe, accessible interlock operation during maintenance and tests.
The interlock receptacle is rated for 125A at 500 VAC, configured three-wire with four poles, and uses a M63 trade size. This combination supports heavy-duty motor and equipment interlocks while maintaining compatibility with IEC 60309 connector systems. Always verify matching plug and receptacle components to preserve safety interlock integrity and compliance.
Yes. It carries NEC hazardous ratings for Class I, Zone 1, and Zone 2, along with NEMA 4X and IP66 ingress protection, making it suitable for oil and gas, chemical processing, and other demanding environments. Always confirm local classifications and ensure installation follows approved wiring methods, enclosure integrity, and proper gasketing to maintain performance.
The device conforms to NEC/CEC IEC standards, with area classification for Hazardous/Classified Locations, and provides Class I Zone 1/Zone 2 ratings plus Division 2 coverage. It also carries IP66 sealing and NEMA 4X protection, ensuring robust performance in challenging environments and simplifying regulatory documentation for audits and vendor qualification.
Robust IP66/NEMA 4X protection reduces ingress-related failures and maintenance frequency, delivering improved uptime and lower lifecycle costs. The nylon body resists chemicals while keeping weight manageable, easing handling and replacement. Standardized IEC 60309 compatibility streamlines spares and retrofits, shortening downtime during upgrades and enabling more predictable maintenance budgeting.
