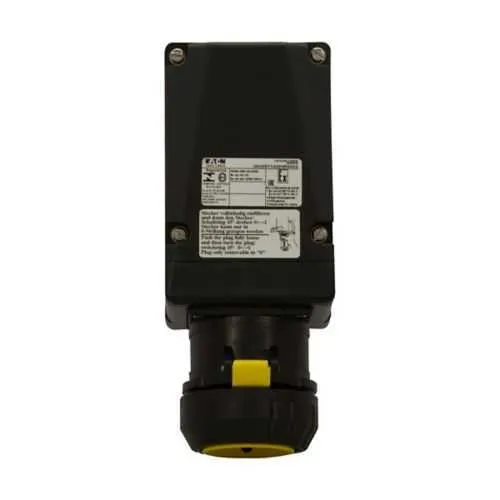

Eaton GHG5154409L3001 Interlock Receptacle - IP66
Part Number: GHG5154409L3001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG5154409L3001
Category
Quick Summary
Interlock Receptacle provides safe, controlled power connections for hazardous-area equipment in industrial facilities. Many buyers struggle with sourcing devices that meet IP66, NEMA 4X, and NEC/CEC IEC requirements, risking noncompliance and downtime. This model from Eaton Crouse-Hinds delivers hazardous-location protection with IP66 protection, Class I Zone 1, and 4X ruggedness, aligned to IEC 60309 interlock standards. For buyers, the combination of robust enclosure, 100A capacity, and 250 V AC operation translates to safer installations, faster commissioning, and lower lifecycle costs in harsh environments. The solution also complements other IEC 60309 components and supports reliable automation in oil and gas, chemical processing, and maritime facilities.
Product Information
Extended Description
GHG5154409L3001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle, 100A, Three-wire, four-pole, Nylon, 1-1/2", 3 phase 250 Vac
Product Name
Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle
Catalog Number
GHG5154409L3001
Product Length/Depth
10 in
Product Height
21.1 in
Product Width
8.9 in
Product Weight
17.22 lb
EAN
4250217436468
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
100A
Trade size
1-1/2"
Configuration
Three-wire, four-pole
Voltage rating
250 V AC
Material
Nylon
IEC 60309 Hazardous Area Pin and Sleeve Devices catalog page
Eaton Specification Sheet - GHG5154409L3001
Feature: Rugged Nylon housing with IP66 and NEMA 4X protection. Business Impact: Withstanding washdowns, dust, and corrosion reduces maintenance frequency and lifecycle costs. Application: Ideal for chemical plants, offshore platforms, and marine facilities where harsh conditions are common. Feature: High current and voltage capability—100A at 250V AC. Business Impact: Supports heavy motor loads and interlocked power circuits, reducing the need for multiple devices and simplifying wiring. Application: Power interlocks for large pumps, fans, and presses in automated lines. Feature: IEC 60309 three-wire, four-pole configuration at 1-1/2" trade size. Business Impact: Ensures correct, safe interconnection with standard IEC60309 plugs, lowering mis-wiring risk and commissioning time. Application: Hazardous-location control panels and remote power distribution. Feature: Robust protection rating combination IP66/NEMA 4X. Business Impact: Maximizes uptime by guarding against water, dust, and corrosion in challenging environments. Application: Outdoor, washdown, and offshore installations. Feature: Comprehensive certifications and documentation ready for audit. Business Impact: Quick standards alignment reduces procurement lead time and streamlines compliance workflows. Application: Projects in chemical, oil & gas, mining, and maritime sectors.
Get a Quick Quote for a Eaton Crouse-Hinds GHG5154409L3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG5154409L3001?
Enquire Now
FAQs
For installation, verify compatibility with IEC 60309 plugs and sockets and mount to a stable surface appropriate for a 1-1/2" trade size. Ensure proper termination using earthed wiring, observe torque specs for terminations, and use suitable gaskets to maintain IP66 integrity. Plan interlock sequencing to match control circuitry and confirm conduit entries are sealed against dust and water ingress.
Yes. The device is rated IP66 for dust and water ingress protection and conforms to NEMA 4X enclosure requirements. It is specified for hazardous locations under NEC/CEC IEC standards, including Class I Zone 1 and Zone 2 ratings, ensuring safe operation in hazardous areas and compliance with regulatory requirements.
Industries such as chemical processing, oil and gas, mining, and maritime/Offshore facilities benefit most. The 100A, 250V AC, three-wire four-pole configuration and rugged nylon housing support high-demand interlock applications in harsh environments, enabling safe power control for motors, pumps, and control panels.
It complies with NEC/CEC IEC standards for hazardous locations, provides Class I Zone 1/Zone 2 protection, is rated NEMA 4X, and offers IP66 ingress protection. Area classification for hazardous/classified locations is supported, making regulatory documentation and audits more straightforward.
Maintenance is typically low due to the durable nylon enclosure, IP66/NEMA 4X protection, and sealed interlock mechanism that resists contaminants. ROI stems from reduced downtime, fewer field failures, and fewer component replacements in aggressive environments, along with smoother commissioning and fewer nonconformities during audits.
