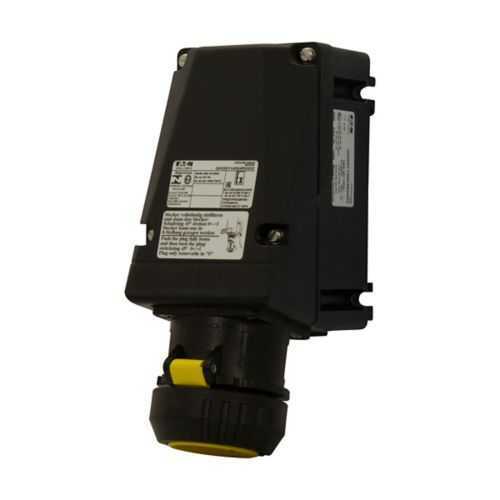

Eaton GHG5154409R3001 Hazardous Area Interlock Receptacle - IP66
Part Number: GHG5154409R3001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG5154409R3001
Category
Quick Summary
Hazardous Area Interlock Receptacle GHG5154409R3001 from Eaton provides safe, interlocked power for equipment in classified environments. Maintenance teams often struggle with ingress, corrosion, and compatibility when selecting interlock solutions for hazardous locations. This receptacle, compatible with IEC 60309 devices, offers IP66 protection, a NEMA 4X enclosure, and NEC/IEC hazardous-location approvals for Class I Division 2, Zone 1 and Zone 2. With durable nylon construction and a 125A rating, it supports reliable operation and simplifies compliance while reducing downtime for critical processes. The design supports rugged field installation and scalable interlock standardization across facilities, improving safety and efficiency for procurement and maintenance teams.
Product Information
Extended Description
GHG5154409R3001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle, 125A, Three-wire, four-pole, Nylon, M63, 220-240 Vac
Product Name
Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle
Catalog Number
GHG5154409R3001
Product Length/Depth
226.06 mm
Product Height
535.94 mm
Product Width
254 mm
Product Weight
12.5 kg
EAN
4250959903860
Area classification
Hazardous/Classified Locations
Standards type
IEC NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class I, Zone 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
125A
Trade size
M63
Configuration
Three-wire, four-pole
Voltage rating
220-240 Vac
Material
Nylon
IEC 60309 Hazardous Area Pin and Sleeve Devices catalog page
Russian Customs Union - CEAG IEC 60309 Hazardous Area Devices
Feature: 125A amperage rating with 220-240 VAC supply and three-wire, four-pole configuration delivers high-current interlocks for heavy machinery. Business Impact: enables secure, intentional power disconnection with minimal voltage drop, reducing arc risk and boosting operator safety. Application: ideal for large motors, pumps, and conveyors in chemical plants and energy facilities. Paragraph two highlights Nylon housing, which provides corrosion resistance and durability; Impact: longer service life and lower maintenance costs; Application: marine, offshore, and washdown environments. Paragraph three emphasizes IP66 ingress protection and NEMA 4X enclosure; Impact: minimized ingress of dust, water, and chemicals, lowering maintenance needs; Application: outdoor, washdown, and hazardous-area switchgear assemblies. Paragraph four focuses on IEC 60309 compatibility and M63 trade size; Impact: procurement standardization and faster installation across facilities; Application: retrofit projects and new builds. Paragraph five notes the compact mounting footprint and robust dimensions (L 226.06 mm, H 535.94 mm, W 254 mm, weight 12.5 kg); Impact: improved vibration resistance and reliability in harsh environments; Application: panel-mounted interlock assemblies in hazardous locations.
Get a Quick Quote for a Eaton Crouse-Hinds GHG5154409R3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG5154409R3001?
Enquire Now
FAQs
To install the GHG5154409R3001, begin with a thorough site assessment to confirm hazardous-location class, zone, and mounting requirements. Mount the interlock receptacle on a compliant panel or enclosure, secure the mounting hardware, and connect the three-wire, four-pole conductors to the designated terminals. Ensure proper grounding and seal interfaces to maintain IP66 integrity, then perform functional testing and verification of interlock operation per OEM and regulatory guidelines.
The receptacle is rated for 125A with 220-240 VAC supply in a three-wire, four-pole configuration. It features an IP66 ingress rating and a NEMA 4X enclosure, making it suitable for harsh environments. It is designed for Hazardous/Classified Locations per NEC and IEC standards, with Class I Division 2, Zone 1 and Zone 2 approvals, ensuring compliant operation in hazardous areas.
Yes. The GHG5154409R3001 is designed for both offshore and onshore hazardous locations. Its IP66 and NEMA 4X enclosure provide robust protection against dust, water, and chemicals, while its Class I Division 2 and Zone 1/Zone 2 approvals align with common oil & gas and chemical processing codes. Nylon construction further resists corrosion in marine and industrial environments.
This interlock receptacle meets IP66 ingress protection, NEMA 4X enclosure rating, and hazardous-area approvals across Class I Division 2 and Zone 1/Zone 2. It adheres to IEC 60309 device compatibility, IEC NEC/CEC standards, and is listed for hazardous/classified locations as part of Eaton Crouse-Hinds hazardous-area devices portfolio.
The 125A, nylon-bodied interlock is engineered for long service life in challenging environments, reducing replacement cycles and maintenance labor. Its robust IP66/NEMA 4X protection minimizes ingress-related failures, improving uptime. Standardized IEC 60309 compatibility simplifies spares management and procurement, delivering predictable ROI through reduced downtime and streamlined maintenance workflows.
