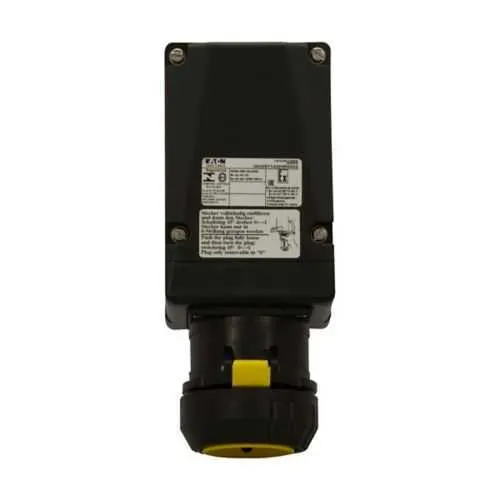

Eaton GHG5154506L3001 Hazardous Area Interlock - IP66
Part Number: GHG5154506L3001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG5154506L3001
Category
Quick Summary
Eaton Crouse-Hinds hazardous area interlock receptacle enables safe, reliable power interlock for industrial equipment in hazardous locations. This design addresses maintenance downtime and safety concerns caused by corrosive atmospheres and inadequate protective enclosures. Its IP66 enclosure, NEMA 4X protection, and IEC/NEC hazardous-location approvals (Class I, Division 2; Zone 1) support compliant operation across global sites. Coupled with IEC 60309 compatibility and a 100A, 1-1/2 inch trade size, it simplifies installation and reduces wiring time, delivering higher uptime and lower maintenance costs for offshore, chemical, and heavy manufacturing environments. For buyers, this means robust performance without compromising safety or compliance.
Product Information
Extended Description
GHG5154506L3001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle, 100A, Four-wire, five-pole, Nylon, 1-1/2", 230-400 Vac
Product Name
Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle
Catalog Number
GHG5154506L3001
Product Length/Depth
226.06 mm
Product Height
535.94 mm
Product Width
254 mm
EAN
4250217436437
Area classification
Hazardous/Classified Locations
Standards type
IEC NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 1 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
100A
Trade size
1-1/2"
Configuration
Four-wire, five-pole
Voltage rating
230-400 Vac
Material
Nylon
IEC 60309 Hazardous Area Pin and Sleeve Devices catalog page
Canadian Certification - 60A and 100A CEAG IEC 60309 Hazardous Area Devices
Canadian Certification - 60A and 100A CEAG IEC 60309 Hazardous Area Devices
Operating Instructions - 100A CEAG IEC 60309 NEC Devices
Feature: 100A amperage rating with four-wire, five-pole configuration → Business Impact: Enables standard interlock circuits with strong fault isolation and reliable power control → Application: 230-400 Vac systems in hazardous locations such as chemical plants and refineries. Feature: Nylon enclosure housing with IP66 and NEMA 4X ratings → Business Impact: Delivers rugged, corrosion-resistant protection against washdowns and harsh environments → Application: Offshore platforms, marine facilities, and multi-shift facilities demanding aggressive cleaning regimes. Feature: IEC 60309 hazardous area device design with recognized hazardous-location approvals → Business Impact: Facilitates compliance with IEC NEC/CEC standards and reduces site validation time → Application: Global installations requiring Class I, Zone 1/Division 2 compatibility and rapid commissioning. Feature: 1-1/2" trade size and 230-400 Vac voltage rating → Business Impact: Streamlines panel integration and wiring, lowering installation labor and material costs → Application: Control panels, motor starters, and heavy-duty power distribution in industrial plants. Feature: NEMA 4X protection and robust interlock mechanism → Business Impact: Improves system uptime by resisting corrosion, dust ingress, and impact → Application: Hazardous area interlock solutions for continuous operation and safer maintenance cycles.
Get a Quick Quote for a Eaton Crouse-Hinds GHG5154506L3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG5154506L3001?
Enquire Now
FAQs
The GHG5154506L3001 is designed for IEC 60309 hazardous-area networks and supports 100A, four-wire, five-pole configurations at 230-400 Vac. It pairs with standard IEC 60309 plugs and receptacles, enabling quick, code-compliant interlock circuits in Class I, Division 2 and Zone 1 environments. The nylon body adds corrosion resistance for challenging plants and offshore facilities.
Key specs include a 100A amperage rating, voltage range of 230-400 Vac, 4X/NEMA-rated enclosure, and a 1-1/2" trade size. It is part of the IEC 60309 hazardous-area family and is configured as four-wire, five-pole, suitable for interlock and control-circuit applications in hazardous locations, delivering reliable power interlock with robust protection.
Yes. The GHG5154506L3001 is IP66 rated and suitable for hazardous locations, including Zone 1 and Class I, Division 2 environments. It adheres to IEC 60309 device standards and NEC/CEC compliance, ensuring regulatory alignment across global facilities while supporting safer interlocks and easier certification processes.
With a nylon, corrosion-resistant housing and IP66/NEMA 4X protection, the interlock resists washdowns and harsh chemicals, reducing maintenance intervals. The robust construction minimizes downtime, while the standardized 1-1/2" trade size and 230-400 Vac rating simplify installation and spare-part compatibility, delivering lower total cost of ownership across hazardous-area operations.
Installation is streamlined by IEC 60309 compatibility and a compact, rugged nylon enclosure. The four-wire, five-pole configuration aligns with common interlock circuits, enabling faster panel integration and commissioning. This reduces on-site wiring time, accelerates safety approvals, and minimizes downtime during maintenance or retrofit projects on offshore rigs and chemical processing facilities.
