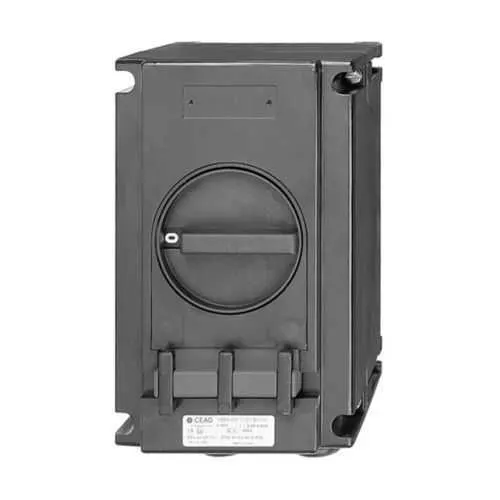

Eaton GHG6351101L0103 Manual Motor Starter - IP66
Part Number: GHG6351101L0103
Quick Summary
Manual Motor Starter is a compact device that safely starts and stops small motors in hazardous-location panels. Engineers often face downtime and compliance risk when selecting motor starters for explosion-protected environments. This model carries IECEx/ATEX certifications for Zone 1 and Zone 2, NEC/CEC ratings for Class I, Division 2, and a rugged IP66/NEMA 4X enclosure. With fiberglass-reinforced polyester construction, it resists chemicals and harsh washdowns, while its 0.25-0.40 A rating supports efficient motor control. Designed for easy integration into existing control schemes, it delivers reliability, reduced maintenance, and a lower total cost of ownership for industrial facilities.
Product Information
Extended Description
GHG6351101L0103 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG635 manual motor starter, 0.25-0.40A, Fiberglass-reinforced polyester
Product Name
Eaton Crouse-Hinds series GHG635 manual motor starter
Catalog Number
GHG6351101L0103
Product Length/Depth
5.51 in
Product Height
8.86 in
Product Width
6.14 in
Product Weight
5.95 lb
EAN
4251510767730
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
IECEx/ATEX hazardous rating
Zone 2 Zone 1 Zone 21 Zone 22
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
0.25-0.40 A
Material
Fiberglass-reinforced polyester
GHG635 Series Ex Explosion Protected Motor Starters catalog page
Eaton Specification Sheet - GHG6351101L0103
Feature: IP66/NEMA 4X enclosure protection keeps internal components safe from dust, water, and corrosion. Business Impact: Extends service life in harsh environments and reduces unscheduled maintenance. Application: Outdoor substations, chemical plants, and wash-down zones where ingress protection is critical. Feature: Fiberglass-reinforced polyester housing provides chemical and impact resistance. Business Impact: Improves durability in demanding locations and lowers replacement costs. Application: Hazardous-location control panels and rugged industrial installations. Feature: Certified for hazardous locations (IECEx/ATEX Zone 1/2; NEC/CEC Class I Div 2; Zone 21/22). Business Impact: Simplifies compliance, lowers regulatory risk, and speeds installation approvals. Application: Oil & gas, mining, and chemicals sectors requiring explosion protection. Feature: Amperage rating of 0.25–0.40 A and compact footprint. Business Impact: Optimizes control of small motors with reduced inrush and efficient wiring. Application: Motor control circuits in space-constrained panels. Feature: Dimensions 5.51 in L × 8.86 in H × 6.14 in W and weight 5.95 lb. Business Impact: Easy fit in standard enclosures and straightforward mounting, accelerating install time. Application: Retrofit and new build projects in hazardous environments. Feature: Comprehensive technical documentation and catalog access. Business Impact: Streamlines spec compliance and procurement with readily available references. Application: Design validation, maintenance planning, and user training.
Get a Quick Quote for a Eaton Crouse-Hinds GHG6351101L0103
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG6351101L0103?
Enquire Now
FAQs
The GHG6351101L0103 is designed for hazardous locations with IECEx/ATEX Zone 1/2 and Zone 21/22 compliance, plus NEC/CEC Class I Div 2 ratings. Its IP66/NEMA 4X enclosure protects against dust, water, and corrosion, enabling straightforward mounting in standard panels. Use compatible wiring practices for 0.25–0.40 A loads and connect to standard motor control circuits to achieve quick, safe start-stop operation with minimal panel redesign.
Key specs include an amperage rating of 0.25–0.40 A and a fiberglass-reinforced polyester enclosure. The physical footprint measures 5.51 in L, 8.86 in H, and 6.14 in W with a weight of 5.95 lb. It carries IP66 protection and NEMA 4X enclosure ratings, suitable for tough industrial environments and hazardous-location motor control.
Industries like oil and gas, chemical processing, mining, and power generation benefit from this explosion-protected motor starter. It is ideal for small-motor control in panels located in Zone 1/2 and Zone 21/22 areas, where robust enclosure protection and certified safety standards help prevent ignition sources and improve overall process reliability.
The GHG6351101L0103 complies with IECEx/ATEX for Zone 1 and Zone 2, NEC/CEC ratings for Class I Division 2, and Zone 21/22 (hazardous areas). It features IP66 ingress protection and a NEMA 4X enclosure, ensuring suitability for harsh environments and regulatory alignment across multiple regions.
The rugged fiberglass-reinforced polyester housing and certified hazardous-location protection reduce downtime and replacement costs, extending mean time between failures. Access to Eaton catalog pages and specification sheets simplifies maintenance planning and compliance audits, supporting faster ROI through reliable operation and lower lifecycle costs in demanding facilities.
