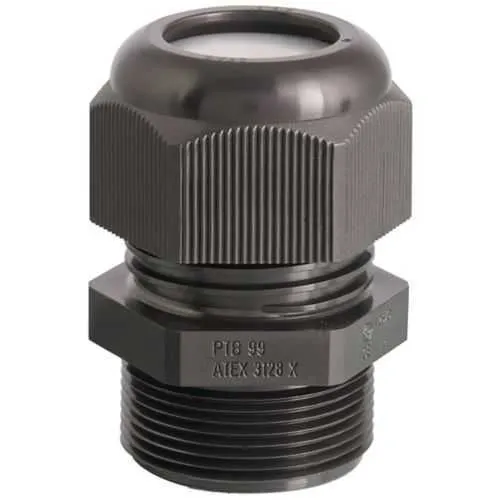

Eaton GHG9601955R0005 Ex-e cable gland - IP66/IP68
Part Number: GHG9601955R0005
Quick Summary
Ex-e cable gland from Eaton provides safe sealing for non-armoured cables in hazardous locations. For installers, the challenge is maintaining IP protection while meeting IECEx/ATEX and local electrical codes for non-armoured cables. This gland meets IECEx/ATEX requirements and is approved for Hazardous/Classified Locations, giving users confidence in field deployments. Its polyamide 6 body, M32 metric thread, and short-thread design streamline installation on control panels and enclosures, reducing downtime. By combining robust protection with compact dimensions, it supports safer, faster wiring projects and lowers total installed cost, aligning with standards-driven procurement and ongoing maintenance strategies.
Product Information
Extended Description
GHG9601955R0005 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Ex-e cable gland, Non-armoured cable, Non-armoured gland, Polyamide 6, Increased safety, M32, Short thread
Product Name
Eaton Crouse-Hinds series Ex-e cable gland
Catalog Number
GHG9601955R0005
Product Length/Depth
45.5 mm
Product Height
36 mm
Product Width
36 mm
Product Weight
0.03 kg
EAN
4250217429415
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX
Ingress protection (IP) ratings
IP66 IP68
Protection type
Increased safety
Cable type
Non-armored Non-armoured
Gland type
Non-armoured
Type
Short thread
Thread Size
M32
Thread type
Metric
Material
Polyamide 6
Crouse-Hinds series CEAG GHG Non-metallic EX Cable Glands catalog page for North American applications
CEAG GHG Non-metallic Ex Cable Glands EU Type Examination Certificate
CEAG GHG Non-metallic Ex Cable Glands EU Type Examination Certificate
CEAG GHG Non-metallic Ex Cable Glands EU Type Examination Certificate
Eaton Specification Sheet - GHG9601955R0005
Feature → Business Impact → Application: Ex-e protection and increased safety rating deliver compliant equipment design for hazardous locations, reducing risk of ignition and equipment damage; the result is safer operations and lower insurance exposure in chemical plants or oil & gas facilities. Application: Use with non-armoured cable in exposed panel installations where increased safety is required. Feature → Material and durability → Business impact: Polyamide 6 offers chemical resistance and high dimensional stability, improving seal integrity over time and decreasing maintenance cycles; Application: Harsh environments and high-temperature zones within IECEx/ATEX scopes. Feature → Thread design → Business impact: Short thread M32 enables quick, secure mounting with fewer parts, speeding assembly and reducing installation errors; Application: Control panels and electrical cabinets with limited space. Feature → IP66/IP68 and certifications → Business impact: Dual ingress protection supports reliable operation in washdown or submerged scenarios; Certification: IECEx/ATEX and Hazardous Locations compliance ensures regulatory adherence across markets; Application: Offshore platforms, refineries, and processing plants. Feature → Cable type and gland type → Business impact: Non-armoured gland matched to non-armoured cables minimizes connector stress and simplifies termination; Application: Standard industrial automation and machine builds. Feature → Size and weight → Business impact: Lightweight at 0.03 kg and compact 45.5 mm length save space on compact enclosures and reduce enclosure weight, improving handling and transport; Application: Compact control boxes and machine enclosures where space is critical.
Get a Quick Quote for a Eaton Crouse-Hinds GHG9601955R0005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG9601955R0005?
Enquire Now
FAQs
Begin by preparing the panel cut-out for a standard M32 gland, ensuring the cable entry seals are clean and undamaged. Slide the gland body into place, insert the non-armoured cable, and tighten to the manufacturer’s torque spec to maintain IP66/IP68 integrity. Verify the enclosure is rated for Hazardous/Classified Locations and conduct a post-installation ingress protection check. This process minimizes leakage paths and preserves IECEx/ATEX compliance during equipment commissioning.
Key specs include IP66/IP68 protection, Increased Safety (Ex-e), non-armoured cable type, and a short-thread M32 metric connection. The gland uses polyamide 6 material, with dimensions of 45.5 mm length, 36 mm width and height, and a weight of 0.03 kg. It is designed for Hazardous/Classified Locations and supports IECEx/ATEX certification requirements for safe operation in demanding environments.
Yes, the GHG9601955R0005 is designed for IECEx/ATEX environments and Hazardous/Classified Locations. It protects non-armoured cables, offering a secure, compliant interface between cables and enclosures in explosive atmospheres. The combination of IP66/IP68 sealing and increased safety ensures reliable operation in oil and gas, chemical, and other harsh industrial settings where non-armoured cables are present.
The gland carries IECEx/ATEX certifications for Ex-e increased safety and supports IP66/IP68 ingress protection. It is approved for Hazardous/Classified Locations, aligning with international regulations for electrical equipment in explosive atmospheres. This broad compliance reduces risk during audits, accelerates procurement, and simplifies multi-region project approvals for global deployments.
The gland’s polyamide 6 body offers chemical resistance and stable seals, reducing ingress-related maintenance. Its lightweight, compact design simplifies replacement and upgrades, while the M32 short-thread mount speeds installation, minimizing labor costs. The IECEx/ATEX compliance and IP66/IP68 protection help prevent costly outages in hazardous environments, delivering lower total cost of ownership over the equipment lifecycle.
