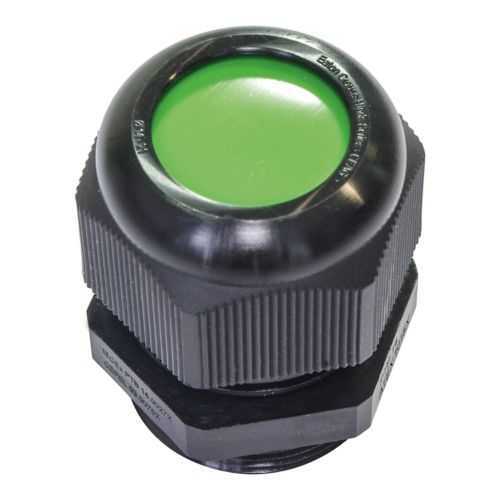

Eaton GHG9601955R0010 Ex-e Cable Gland - IECEx/ATEX
Part Number: GHG9601955R0010
Quick Summary
Ex-e cable gland for hazardous locations provides reliable cable sealing for electrical installations in hazardous environments, supporting safe enclosure integrity and long-term performance. Many buyers struggle to maintain IP66/IP68 protection, achieve IECEx/ATEX compliance, and complete field installations quickly when space is limited or in harsh ambient conditions. This gland is certified for IECEx/ATEX and rated IP66/IP68, ensuring safe operation in Hazardous or Classified Locations across regional standards. Engineered by Eaton Crouse-Hinds, the unit features a 5.5–7 mm sealing range, M20 x 1.5 metric thread, and a compact 33 mm length that reduces panel footprint while speeding installation. Together, these advantages translate to safer systems, faster commissioning, and lower lifecycle costs for industrial facilities.
Product Information
Extended Description
GHG9601955R0010 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Ex-e cable gland, 5.5-7 mm cable sealing range, Black, Polyamide, -40/-55°C up to +70°C, M20 x 1.5 Metric, Short thread
Product Name
Eaton Crouse-Hinds series Ex-e cable gland
Catalog Number
GHG9601955R0010
Product Length/Depth
33 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
0.09 kg
EAN
4250217401053
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX
Ingress protection (IP) ratings
IP66 IP68
Type
Short thread
Thread Size
M20 x 1.5
Thread type
Metric
Material
Polyamide
Crouse-Hinds series CEAG GHG Non-metallic EX Cable Glands catalog page for North American applications
CEAG GHG Non-metallic Ex Cable Glands EU Type Examination Certificate
Crouse-Hinds series CEAG GHG Non-metallic EX Cable Glands operating instructions
Feature: The Ex-e cable gland supports a 5.5–7 mm cable sealing range and uses a short-thread M20 x 1.5 metric connection. Business impact: This flexibility reduces the need for multiple gland sizes, lowers inventory, and improves sealing reliability, which minimizes downtime due to misfit cables and gasket displacement. Application: Ideal for compact control panels, valve manifolds, and machine enclosures where cabling varies in diameter and space is limited. Feature: IP66/IP68 ingress protection ensures robust enclosure sealing against dust and water. Business impact: Higher protection reduces corrosion risk and maintenance cycles, extending equipment life and lowering lifecycle costs. Application: Suitable for outdoor installations, coastal plants, and hazardous area enclosures where moisture exposure and washdowns are routine. Feature: IECEx/ATEX certification for Ex-e sealing in hazardous environments. Business impact: Compliance simplifies project approvals, reduces certification overhead, and supports cross-regional deployments. Application: Used in Chemical, Oil & Gas, and Mining facilities requiring explosion-proof classification and safe cabling in hazardous locations. Feature: Material is polyamide with operating temperature range from -40/-55°C up to +70°C. Business impact: Delivers reliable performance in extreme temperatures, preventing brittleness in cold starts and degradation in heat, lowering replacement frequency. Application: Works in cold rooms, outdoor enclosures, and high-temperature machinery bays across industrial plants. Feature: Compact footprint with 33 mm product length and short-thread design. Business impact: Eases panel layout, speeds installation, and reduces potential interference with nearby components. Application: Particularly beneficial in dense control cabinets, robotic cells, and machine frames where space is at a premium.
Get a Quick Quote for a Eaton Crouse-Hinds GHG9601955R0010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG9601955R0010?
Enquire Now
FAQs
To install, verify the cable diameter falls within the 5.5–7 mm sealing range, insert the cable through the gland body, and tighten the nut to the manufacturer's torque specification so the gasket seats firmly. Ensure the M20 x 1.5 short-thread connection aligns with the enclosure port and re-check IP66/IP68 sealing after installation. Refer to the Crouse-Hinds operating instructions for torque values and gasket seating guidance.
Sealing reliability is driven by the 5.5–7 mm cable range, IP66/IP68 protection, and the polyamide body designed for harsh environments. The -40/-55°C to +70°C operating range further ensures material resilience under extreme temperatures, reducing seal degradation. Proper torque, correct cable sizing, and correct installation orientation are essential to maintain the intended ingress protection.
Yes. The GHG9601955R0010 is IECEx/ATEX certified for Ex-e applications and rated IP66/IP68, making it suitable for Hazardous/Classified Locations. This supports cross-regional deployments, meeting global safety requirements in industries like oil and gas, chemical processing, and mining. Always verify site-specific certification requirements and enclosure compatibility before deployment.
Compliance is supported by the CEAG GHG Non-metallic Ex Cable Glands catalog page, the EU Type Examination Certificate, and the operating instructions. For quick reference, consult the downloadable materials: Crouse-Hinds Exe Exi gland catalog page, EU Type Certificate, and the operating instructions PDF. These documents guide installation, certification alignment, and safety compliance.
The gland’s robust IP66/IP68 rating, wide operating temperature range, and durable polyamide body reduce ingress-related downtime and component replacement. The 5.5–7 mm sealing range minimizes spare parts for different cable sizes, while the compact 33 mm length simplifies future cabinet redesigns. Overall, this translates to lower maintenance costs, faster commissioning, and improved system reliability.
