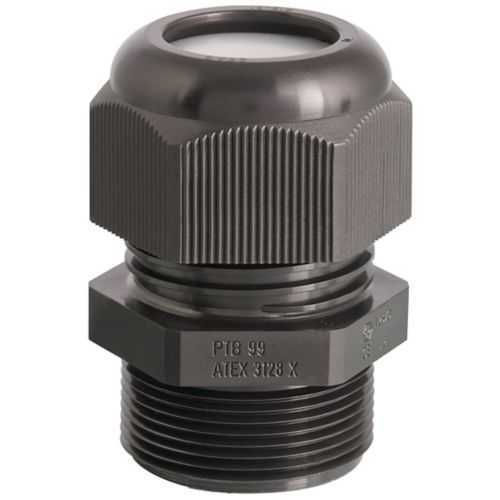

Eaton Crouse-Hinds Ex-e cable gland GHG9601955R0023 - IECEx
Part Number: GHG9601955R0023
Quick Summary
The Eaton Crouse-Hinds Ex-e cable gland is a non-armoured, increased-safety gland designed for safe, reliable sealing of non-armoured cables in hazardous locations. In demanding facilities, installers often struggle to achieve compliance without slowing panel builds or increasing ingress risk. Key certifications—IECEx/ATEX, IP66/IP68, and Hazardous/Classified Locations area classification—provide global coverage and protection against dust, water, and ignition sources. Compact, lightweight design with M20 threads and a 38 mm length delivers easy mounting in tight spaces, while polyamide 6 ensures chemical resistance and long-term durability. This combination supports faster procurement, lower lifecycle costs, and safer operations across industrial automation and electrical distribution networks.
Product Information
Extended Description
GHG9601955R0023 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Ex-e cable gland, Non-armoured cable, Non-armoured gland, Polyamide 6, Increased safety, M20, Long thread
Product Name
Eaton Crouse-Hinds series Ex-e cable gland
Catalog Number
GHG9601955R0023
Product Length/Depth
38 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
0.01 kg
EAN
4250217429422
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX
Ingress protection (IP) ratings
IP66 IP68
Protection type
Increased safety
Cable type
Non-armored Non-armoured
Gland type
Non-armoured
Type
Long thread
Thread Size
M20
Thread type
Metric
Material
Polyamide 6
Crouse-Hinds series CEAG GHG Non-metallic EX Cable Glands catalog page for North American applications
Enlargement Gland Sizes M20 to M63 ATEX Certification
Enlargement Gland Sizes M20 to M63 ATEX Certification
Enlargement Gland Sizes M20 to M63 ATEX Certification
Eaton Specification Sheet - GHG9601955R0023
Feature: Ex-e increased-safety design tailored for non-armoured cables. Business Impact: minimizes ignition risk and helps meet IECEx/ATEX compliance, streamlining regulatory acceptance across sites. Application: ideal for control panels, junction boxes, and field enclosures operating in hazardous locations. Feature: M20 long-thread metric connection. Business Impact: simplifies sourcing and installation with a universal thread, reducing misfits and rework. Application: suitable for standard cable rundowns and panel entries in automation cabinets. Feature: Polyamide 6 body. Business Impact: offers chemical resistance and durable sealing, extending service life in tough environments. Application: chemical plants, refineries, mining, and water treatment facilities. Feature: IP66 IP68 ingress protection ratings. Business Impact: protects against dust and water ingress, improving uptime and asset reliability. Application: outdoor, damp, or wash-down areas and offshore platforms. Feature: Compact 38 mm length and 24 mm width/height with 0.01 kg weight. Business Impact: saves panel space, lowers handling costs, and enables faster installation in tight enclosures. Application: small control panels, machinery boxes, and limited-entry applications. Additionally, IECEx/ATEX documentation supports procurement confidence.
Get a Quick Quote for a Eaton Crouse-Hinds GHG9601955R0023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG9601955R0023?
Enquire Now
FAQs
Consider using the M20 long-thread entry with a non-armoured cable to achieve a reliable seal. Ensure the polyamide 6 gland body matches the cable diameter and tighten to the manufacturer’s torque specification to preserve IP66/IP68 protection. Verify compatibility with your enclosure gaskets and mounting method, and use appropriate sealing compounds if recommended. Field installation should follow standard hazardous-location wiring practices.
Key performance specifications include M20 thread size, long-thread variant, polyamide 6 construction, 38 mm length, 24x24 mm footprint, 0.01 kg weight, IP66/IP68 ingress protection, and suitability for non-armoured cables. It carries IECEx/ATEX certification for use in hazardous/classified locations, ensuring global applicability and compliance.
Yes. The gland is designed for hazardous-location installations in chemical plants, refineries, and oil and gas facilities. IECEx/ATEX certification confirms regulatory compliance, while IP66/IP68 ratings protect against dust and water ingress. Its non-armoured configuration and standard M20 thread fit typical automation cabinets and field enclosures used in rugged environments.
Support documents include IECEx/ATEX certificates, catalog pages, and the Eaton datasheet. The GTIN 4250217429422 and catalog number GHG9601955R0023 assist procurement teams in matching parts, while the 38 mm length, 24 mm width, and M20 thread are clearly specified in technical sheets for quick validation.
Using a certified Ex-e gland reduces risk and avoids costly redesigns, delivering faster time-to-solution and lower maintenance due to robust sealing. The compact form saves panel space and lowers shipping costs, while consistent documentation supports streamlined vendor qualification and longer asset life in hazardous environments.
