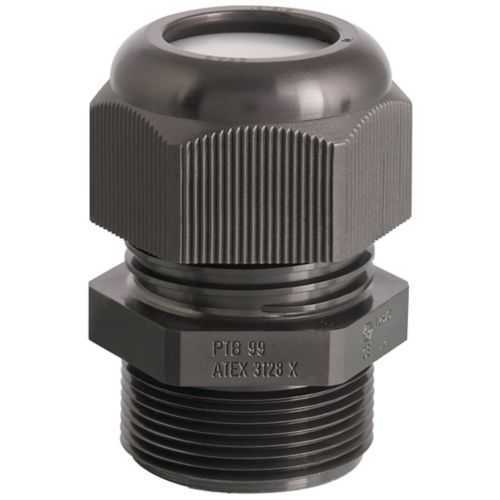

Eaton Crouse-Hinds GHG9601955R0026 Cable Gland IP66/IP68
Part Number: GHG9601955R0026
Quick Summary
Ex-e cable glands protect electrical connections by sealing non-armoured cables in hazardous locations, ensuring safe, reliable operation in demanding environments. Maintenance teams often struggle with maintaining ingress protection while staying compliant with explosive atmosphere standards and tight project schedules. The GHG9601955R0026 delivers IECEx/ATEX certification, IP66/IP68 ingress protection, and Increased Safety design, enabling safe installation in hazardous/classified locations. Compact M40 thread compatibility and a non-armoured profile streamline integration with existing field wiring, reducing commissioning time and long-term maintenance costs. For buyers, the gland's robust polyamide 6 construction provides chemical resistance and solid torque retention at high ambient temperatures, supporting asset uptime across oil, gas, and industrial automation sites.
Product Information
Extended Description
GHG9601955R0026 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Ex-e cable gland, Non-armoured cable, Non-armoured gland, Polyamide 6, Increased safety, M40, Long thread
Product Name
Eaton Crouse-Hinds series Ex-e cable gland
Catalog Number
GHG9601955R0026
Product Length/Depth
54.5 mm
Product Height
46 mm
Product Width
46 mm
Product Weight
0.05 kg
EAN
4250217429453
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX
Ingress protection (IP) ratings
IP66 IP68
Protection type
Increased safety
Cable type
Non-armored Non-armoured
Gland type
Non-armoured
Type
Long thread
Thread Size
M40
Thread type
Metric
Material
Polyamide 6
Crouse-Hinds series CEAG GHG Non-metallic EX Cable Glands catalog page for North American applications
Enlargement Gland Sizes M20 to M63 ATEX Certification
Enlargement Gland Sizes M20 to M63 ATEX Certification
Enlargement Gland Sizes M20 to M63 ATEX Certification
Eaton Specification Sheet - GHG9601955R0026
Robust Ex-e cable gland construction uses polyamide 6 with Increased Safety protection, delivering improved chemical resistance and thermal stability. This combination reduces ingress risk and helps ensure compliance with hazardous location standards, even in offshore or chemical sites where sealing integrity and reliability are non-negotiable. Non-armoured cable compatibility and long-thread design simplify mounting while minimizing the risk of cable damage and seal failure, and provide a secure, long-lasting termination in control panels and enclosures. This supports fast field retrofits and reduces commissioning time in busy production lines. IP66/IP68 ratings and IECEx/ATEX certification address global regulatory requirements, enabling procurement consistency across multinational sites and reducing project risk in gas, dust, or mixed-process environments. The Increased Safety design and non-armoured configuration further ensure safe terminations for hazardous locations. Compact footprint and lightweight construction (54.5 mm length, 46 mm width, 0.05 kg) allow easier handling, quicker installations, and reduced storage needs in crowded electrical rooms and cabinet interiors. These advantages translate to lower labor costs and improved asset uptime. Documentation and support are readily accessible, with specification sheets and certification data available to accelerate engineering reviews, audits, and safe-by-design adoption across industrial automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds GHG9601955R0026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG9601955R0026?
Enquire Now
FAQs
GHG9601955R0026 is designed for non-armoured cables and uses a metric M40 long thread, simplifying gland mounting in control panels and enclosures. The gland’s compact profile reduces installation clearance requirements, while the polyamide 6 material provides solid torque retention. This combination supports quick terminations and minimizes the risk of strap damage or over-tightening during field assembly.
IECEx and ATEX certifications validate safe operation in explosive atmospheres, while IP66/IP68 ratings ensure robust ingress protection against water and dust. In hazardous locations this gland supports Increased Safety design and non-armoured cable terminations, helping buyers meet regulatory requirements and pass compliance audits across multinational sites. It also aligns with industry standards for oil, gas, and chemical processing environments. Expect extensive documentation and verified test reports.
Yes. This Ex-e cable gland is explicitly intended for Hazardous and Classified Locations, backed by IECEx/ATEX certifications and IP66/IP68 protection. It accommodates non-armoured cables and uses a M40 metric long thread to ensure a secure, sealed termination inside enclosures, cabinets, and process equipment. When installed per standards, it maintains critical safety margins in refineries, chemical plants, and offshore facilities.
Key considerations include confirming non-armoured cable type, ensuring proper gland entry alignment, and applying appropriate torque to avoid over-tightening. The gland’s 54.5 mm length and 46 mm diameter, plus 0.05 kg weight, provide a compact, manageable solution for panel entries and conduit glands. The M40 metric long thread enables a secure grip on standard gland holes, simplifying field retrofits and ensuring reliable sealing under vibration and temperature variation.
By delivering a durable, sealed termination in hazardous environments, this gland reduces unscheduled downtime due to moisture ingress and equipment failure. IECEx/ATEX compliance simplifies procurement for multinational sites, while IP66/IP68 ratings minimize wear from moisture and temperature cycling. Over the asset lifecycle, fewer gland replacements and faster maintenance cycles translate to lower total cost of ownership.
