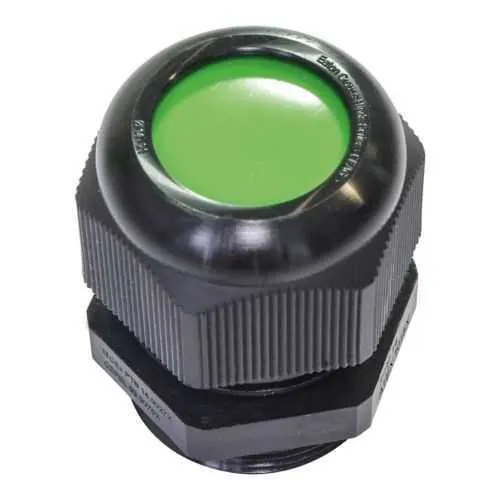

Eaton GHG9601955R0029 Ex-e Cable Gland - Long Thread
Part Number: GHG9601955R0029
Quick Summary
Eaton GHG9601955R0029 Ex-e cable gland is a robust sealing solution for hazardous locations in industrial wiring. When field cables require reliable ingress protection under harsh conditions, installers often face fitment and compatibility challenges. This gland carries IECEx/ATEX certification, IP66/IP68 ratings, and hazardous-location suitability, supporting compliant installs across industries. With polyamide construction and a 5.5–7 mm sealing range on an M20 x 1.5 metric thread, it also enables faster, more reliable panel wiring and reduced maintenance costs. Designed for -40/-55°C up to +70°C and a compact long-thread profile, it helps keep assemblies compact yet sealed against dust, moisture, and chemical exposures.
Product Information
Extended Description
GHG9601955R0029 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Ex-e cable gland, 5.5-7 mm cable sealing range, Black, Polyamide, -40/-55°C up to +70°C, M20 x 1.5 Metric, Long thread
Product Name
Eaton Crouse-Hinds series Ex-e cable gland
Catalog Number
GHG9601955R0029
Product Length/Depth
38 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
0.01 kg
EAN
4250217414640
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX
Ingress protection (IP) ratings
IP66 IP68
Type
Long thread
Thread Size
M20 x 1.5
Thread type
Metric
Material
Polyamide
Crouse-Hinds series CEAG GHG Non-metallic EX Cable Glands catalog page for North American applications
CEAG GHG Non-metallic Ex Cable Glands EU Type Examination Certificate
Crouse-Hinds series CEAG GHG Non-metallic EX Cable Glands operating instructions
Ex-e long-thread, non-metallic gland with a 5.5–7 mm cable sealing range reduces field cabling complexity and enhances ingress protection. This translates directly to faster commissioning and fewer rework tasks in hazardous-area panels. Apply this in control panels, instrument enclosures, and motor assemblies in chemical plants and mining sites where reliability is mission-critical. IP66/IP68 rated construction with a temperature range of -40/-55°C to +70°C ensures consistent performance in outdoor and industrial environments. This reduces unplanned downtime and maintenance costs while enabling compliant installations across harsh climates. The polyamide body delivers corrosion resistance and cost efficiency relative to metallic glands. IECEx/ATEX compliance and hazardous-location suitability streamline regulatory approvals and qualification processes. The M20 x 1.5 metric thread and 38 mm length aid quick mounting in tight spaces, while allowing adapters to be minimized. Five key specs—sealing range, thread, IP rating, material, and temperature range—support scalable, dependable installations across facilities.
Get a Quick Quote for a Eaton Crouse-Hinds GHG9601955R0029
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG9601955R0029?
Enquire Now
FAQs
The Ex-e gland uses a standard M20 x 1.5 thread and supports a 5.5–7 mm cable sealing range, compatible with common gland housings in control panels, instrument enclosures, and motor assemblies. It delivers IP66/IP68 protection and is suitable for hazardous locations, helping installers avoid adapters and reduce wiring time.
This gland is IECEx and ATEX certified, with hazardous-location suitability and IP66/IP68 ingress protection. The certifications support compliance inOil & Gas, chemical processing, mining, and other industries requiring regulatory alignment and safe, documented installation practices.
The non-metallic polyamide body resists corrosion and reduces overall weight, while the long-thread design simplifies mounting in tight spaces. Its 5.5–7 mm sealing range accommodates typical field cables, enabling faster commissioning and lowering maintenance needs due to fewer ingress-related issues.
Yes. It operates from -40/-55°C up to +70°C and carries IP66/IP68 ratings, making it suitable for harsh outdoor environments and climate swings inside industrial facilities, minimizing the risk of sealing failure and enabling longer service life.
You can access the installation instructions, EU Type Examination Certificate, and the product catalog page via Eaton’s hosted documents: installation instructions PDF, EU Type Certificate PDF, and the North American catalog page PDF provided in the product downloads section.
