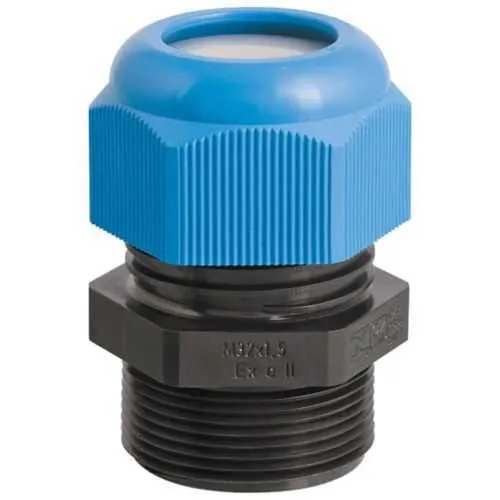

Eaton GHG9601955R0109 Ex-i Cable Gland - IP66/IP68
Part Number: GHG9601955R0109
Quick Summary
Ex-i cable gland provides reliable sealing for hazardous locations, enabling safe, compliant cable entry for Ex-certified equipment. Poor sealing and non-compliant parts drive moisture ingress, maintenance downtime, and audit costs. Certified to IECEx/ATEX with IP66/IP68 protection, and capable of operating from -40/-55°C up to +70°C. The polyamide body and short-thread M20 x 1.5 design support fast installation in tight spaces, boosting commissioning speed and reducing lifecycle costs. The blue color aids identification in field workmanship and maintenance planning. Whether you are retrofitting control panels in hazardous zones or engineering new plant equipment, it offers predictable performance. The blue polyamide body also simplifies inspection and traceability during audits and maintenance rounds. Together, these features support safer, faster project delivery and lower total cost of ownership.
Product Information
Extended Description
GHG9601955R0109 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Ex-i cable gland, 5.5-7 mm cable sealing range, Blue, Polyamide, -40/-55°C up to +70°C, M20 x 1.5 Metric, Short thread
Product Name
Eaton Crouse-Hinds series Ex-i cable gland
Catalog Number
GHG9601955R0109
Product Length/Depth
33 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
0.009 kg
EAN
4250959947246
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX
Ingress protection (IP) ratings
IP66 IP68
Type
Short thread
Thread Size
M20 x 1.5
Thread type
Metric
Material
Polyamide
Crouse-Hinds series CEAG GHG Non-metallic EX Cable Glands catalog page for North American applications
CEAG GHG Non-metallic Ex Cable Glands EU Type Examination Certificate
Crouse-Hinds series CEAG GHG Non-metallic EX Cable Glands operating instructions
Feature → The Ex-i cable gland is manufactured with a polyamide body, offering excellent chemical resistance and lightweight handling. Business Impact → This reduces corrosion risk in damp or chemically challenging environments and lowers installation effort, leading to faster commissioning and lower handling costs. Application → Ideal for control panels and enclosure entries in chemical plants, offshore platforms, and industrial facilities seeking durable, corrosion-resistant glands. Feature → Sealing range of 5.5–7 mm ensures a secure fit for small to mid-size cables. Business Impact → Improves ingress protection and cable retention, reducing the chance of micromovements under vibration and moisture ingress. Application → Suitable for machine rooms, outdoor enclosures, and hazardous area cabinets needing reliable sealing without over-compression. Feature → Short-thread M20 x 1.5 design enables quick installation in limited-space panels. Business Impact → Speeds up assembly and maintenance tasks, minimizing downtime and improving project throughput. Application → Fits compact control panels, junction boxes, and field devices where space is at a premium. Feature → IP66 and IP68 ratings provide robust protection against dust and water ingress. Business Impact → Enhances reliability in harsh environments, extends equipment life, and reduces environmental fault-related maintenance. Application → Use in outdoor installations, wash-down areas, and chemical processing facilities with demanding cleanliness and reliability requirements. Feature → Operating temperature range from -40/-55°C to +70°C covers extreme industrial conditions. Business Impact → Guarantees performance in cold rooms, heat-intensive zones, and fluctuating climates, reducing the need for alternative gaskets or redundant components. Application → Suitable for refrigeration plants, petroleum facilities, and ambient-temperature variances in manufacturing. Feature → IECEx/ATEX certification and Hazardous/Classified Locations classification ensure regulatory compliance. Business Impact → Eases procurement and inspection cycles, supports safe operation and audits, and aligns with international safety standards. Application → Essential for installations in hazardous locations and regulatory-compliant automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds GHG9601955R0109
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG9601955R0109?
Enquire Now
FAQs
It seals cables with a 5.5–7 mm diameter range using an M20 x 1.5 short-thread design. The polyamide body provides reliable chemical resistance and a compact footprint suitable for tight panels and enclosures in hazardous locations.
The gland is IECEx/ATEX certified for hazardous locations and features IP66/IP68 ingress protection, ensuring strong dust and water resistance in demanding industrial environments.
Yes. The short-thread M20 x 1.5 design and compact dimensions (33 mm length, 24 mm width, 24 mm height) enable quick installation in tight control panels and enclosures.
It operates from -40/-55°C up to +70°C, making it suitable for cold rooms, outdoor installations, and environments with wide temperature fluctuations typically found in chemical and industrial facilities.
With IECEx/ATEX certification, IP66/IP68 protection, and a durable polyamide body, it reduces maintenance downtime, minimizes audit risk, and lowers lifecycle costs by providing reliable, long-lasting sealing in hazardous locations.
