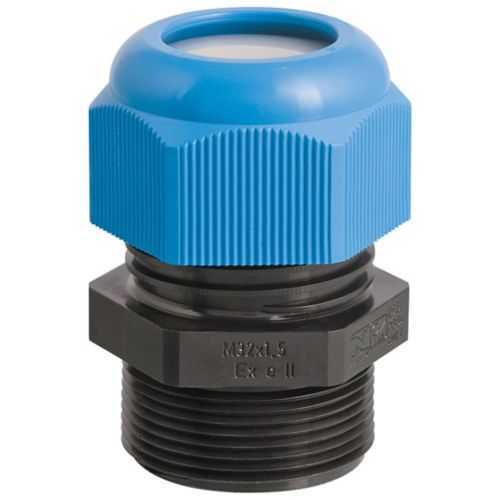

Eaton GHG9601955R0111 Ex-i Cable Gland - IECEx/ATEX

IECEx/ATEX certification and IP68/IP66 protection establish the gland as a compliant solution for hazardous locations. This reduces the risk of non-compliance during inspections and lowers change-out costs for approved equipment. It is suitable for Class I/II areas and washdown environments, including chemical processing, oil and gas, and power distribution panels. Cable sealing range of 14–17 mm covers common field cables without compromising sealing integrity. The M32 x 1.5 short-thread interface enables a compact, secure mount in tight panel spaces. This combination minimizes rework and torque damage during installation. Blue polyamide material delivers good chemical resistance and low moisture uptake, even in damp facilities. The temperature range of -40/-55°C to +70°C supports cold rooms, outdoor enclosures, and high-heat zones without degradation. This material choice also helps extend component service life in demanding environments. Overall dimensions (45.5 mm length, 36 mm width, and 36 mm height) provide predictable fit in standard panels. The gland is designed for compatibility with existing conduit and sealing systems using the same M32 thread. This simplifies procurement and reduces the number of different gland variants needed on a site. IP68/IP66 protection protects against dust ingress and water exposure in harsh environments, helping maintain enclosure integrity. The non-metallic polyamide construction resists corrosion, lowering maintenance costs. The blue body aids quick identification during inspection and troubleshooting in crowded panels. IECEx/ATEX certification, combined with hazardous-location suitability, translates to faster project approvals and smoother supply-chain interactions. For engineers, this gland offers a trusted, standards-aligned sealing solution that minimizes risk across multiple industries.
