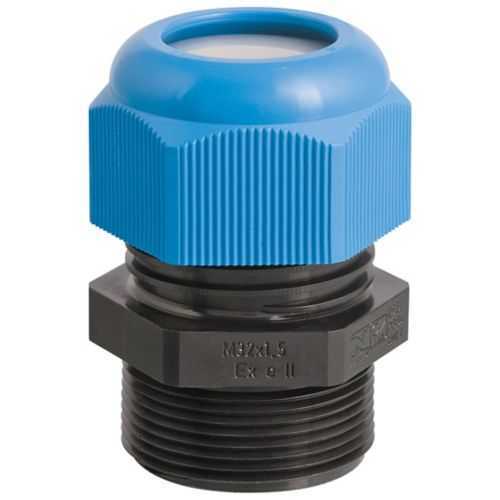

Eaton GHG9601955R0125 Ex-i Cable Gland - IP66/IP68
Part Number: GHG9601955R0126
Quick Summary
Ex-i cable gland protects electrical terminations in hazardous locations by providing sealed, intrinsically safe cable entry. In many industrial installs, sealing integrity, IP rating fulfillment, and regulatory compliance can pace or stall a project. This gland carries IECEx/ATEX certification and IP66/IP68 protection, addressing safety and performance concerns across process plants, mining sites, and offshore facilities. The non-metallic polyamide body, long-thread M32×1.5, and 14–17 mm sealing range simplify installation, while operating from -20°C to +70°C. With compact dimensions and global approvals, it supports faster commissioning, reduced field rework, and lower lifecycle costs in demanding environments.
Product Information
Extended Description
GHG9601955R0126 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Ex-i cable gland, Non-armoured cable, Non-armoured gland, Polyamide 6, Increased safety, M40, Long thread
Product Name
Eaton Crouse-Hinds series Ex-i cable gland
Catalog Number
GHG9601955R0126
Product Length/Depth
54.5 mm
Product Height
46 mm
Product Width
46 mm
Product Weight
0.05 kg
EAN
4250217404054
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX
Ingress protection (IP) ratings
IP66 IP68
Protection type
Increased safety
Cable type
Non-armored Non-armoured
Gland type
Non-armoured
Type
Long thread
Thread Size
M40
Thread type
Metric
Material
Polyamide 6
Crouse-Hinds series CEAG GHG Non-metallic EX Cable Glands catalog page for North American applications
Enlargement Gland IECEx Certificate of Conformity
Enlargement Gland IECEx Certificate of Conformity
Enlargement Gland IECEx Certificate of Conformity
Eaton Specification Sheet - GHG9601955R0126
Feature: Intrinsic safety Ex-i design paired with a 14–17 mm cable sealing range → Business Impact: Minimizes ignition risk and ensures reliable termination in hazardous locations → Application: Chemical plants, oil & gas facilities, mining sites. Feature: IP66/IP68 ingress protection → Business Impact: Protects against water and dust ingress, reducing unexpected downtime → Application: Outdoor installations, washdown environments, offshore platforms. Feature: Long-thread M32×1.5 metric threading → Business Impact: Simplifies mechanical assembly with robust sealing in tight panels → Application: Control cabinets with space constraints. Feature: Polyamide material → Business Impact: High chemical resistance and stable performance across temperature extremes → Application: Harsh process industries and evolving regulatory environments. Feature: IECEx/ATEX certification → Business Impact: Facilitates global project compliance and faster multi-site approvals → Application: Projects spanning Europe, the Middle East, and Asia. Feature: Compact footprint (50.5 mm length, 36 mm height, 36 mm width) and light weight (0.029 kg) → Business Impact: Easier installation and reduced panel crowding, enabling scalable installations → Application: Panels with limited space in automation rooms.
Get a Quick Quote for a Eaton Crouse-Hinds GHG9601955R0126
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG9601955R0126?
Enquire Now
FAQs
Begin by confirming the cable sealing range of 14–17 mm and the M32×1.5 metric thread. Tighten to the manufacturer’s recommended torque, ensuring the gland is fully seated and the seal is compressed. Verify IECEx/ATEX compliance and IP66/IP68 protection after installation, and conduct a functional test under operating conditions to confirm integrity in hazardous locations.
The gland is IECEx and ATEX certified for explosion-protection, and delivers IP66/IP68 ingress protection. It is designed for hazardous/classified locations, enabling global deployment across chemical plants, refineries, and mining facilities while meeting international safety standards.
The GHG9601955R0125 is an Ex-i intrinsic-safety gland designed for hazardous locations with a long-thread M32×1.5. While it is compatible within the Crouse-Hinds Ex gland family, verify project-specific gland mating requirements before mixing with non Ex-i or non-metallic glands to avoid compromising intrinsic safety or IP ratings.
The gland operates from -20°C to +70°C and provides IP66/IP68 protection, guarding against water, dust, and washdown conditions. It uses a polyamide body with a 14–17 mm sealing range and M32×1.5 threading to maintain sealing integrity across harsh industrial environments.
By combining intrinsic safety, robust IP protection, and a compact footprint, the gland reduces risk, lowers field rework, and accelerates commissioning. Global IECEx/ATEX certification supports multi-site deployments, while the long-thread design and sealing range enable faster, reliable terminations in space-constrained panels.
