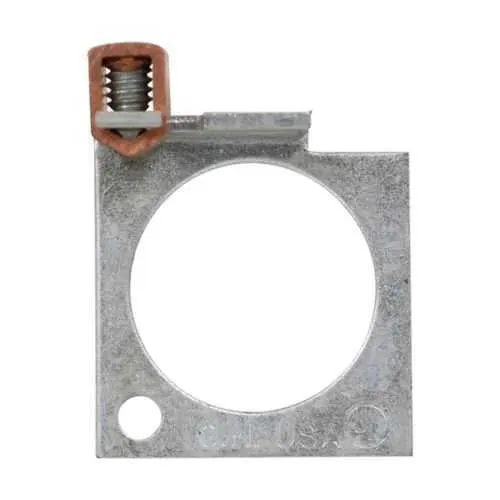

Eaton GP1 Grounding Plate - 1/2" Trade Size, Ordinary Locations
Part Number: GP1
Quick Summary
GP1 grounding plate provides a reliable grounding path for electrical enclosures in industrial settings. This solution addresses the common pain point of inconsistent grounding contacts and corrosion at mounting points, which can lead to intermittent faults and unsafe conditions. The GP1 carries an area classification for Ordinary/Non-Hazardous Locations and is constructed from durable steel to withstand routine industrial environments. By leveraging a compact 1/2" trade-size design, this grounding plate simplifies installation, improves compatibility with GP series components, and helps reduce maintenance costs while ensuring dependable electrical safety for your equipment and personnel.
Product Information
Extended Description
GP1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GP grounding plate, Steel, 1/2"
Product Name
Eaton Crouse-Hinds series GP grounding plate
Catalog Number
GP1
Product Weight
0.05 lb
UPC
782274088549
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1/2"
Material
Steel
Feature: Material and construction — Business Impact: Steel construction delivers long-term durability and corrosion resistance in harsh environments, reducing replacement cycles and maintenance costs. Application: Ideal for outdoor or indoor enclosures where robust grounding paths are required. Feature: Trade size — Business Impact: 1/2" trade size aligns with standard grounding hardware, facilitating quick connections and consistent contact reliability. Application: Quick field installs with minimal parts proliferation, lowering installation time and labor costs. Feature: Catalog identity GP1 — Business Impact: Clear part traceability supports accurate procurement and part compatibility across Eaton Crouse-Hinds GP series. Application: Streamlined purchasing and reduced risk of mismatched components. Feature: Area classification — Business Impact: Suitable for Ordinary/Non-Hazardous Locations, supporting compliance without added enclosure modifications. Application: Use in standard industrial rooms, panels, and equipment housings. Feature: Weight and handling — Business Impact: At 0.05 lb, the plate is easy to handle and install, reducing crane or assistance needs on site. Application: Field deployments and retrofit projects where weight savings matter. Feature: Documentation availability — Business Impact: Access to catalog pages and datasheets supports design verification and quality control. Application: Procurement and engineering review ease, ensuring proper specification adherence.
Get a Quick Quote for a Eaton Crouse-Hinds GP1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GP1?
Enquire Now
FAQs
GP1 is designed for electrical enclosures in industrial settings requiring a reliable grounding path. Install by aligning with the enclosure mounting surface, securing with compatible hardware, and connecting the grounding conductor to the plate as specified in the Eaton GP1 datasheet. The 1/2" trade size matches standard grounding components for quick, secure connections.
GP1 is a steel grounding plate with a 1/2" trade size and a weight of 0.05 lb. Its steel construction provides durability and stable electrical contact, while the compact form supports easy integration with GP series components. The UPC is 782274088549, supporting product verification during procurement.
GP1 is certified for Ordinary/Non-Hazardous Locations. For hazardous environments, consult the official GP1 specification page or Eaton engineering to confirm suitability or to identify an alternative product with appropriate certifications.
Yes. Refer to the Crouse-Hinds series Grounding Plates and Grounding Bushings catalog page and the Eaton GP1 datasheet. These documents provide installation guidance, compatibility notes, and certified performance details to ensure compliance and correct integration.
GP1’s steel construction and small form factor reduce installation time and physical wear on mounting points, improving reliability and reducing downtime. Clear part traceability (GP1) simplifies replenishment, and the lack of complex components lowers ongoing maintenance and replacement costs over the life of the enclosure system.
