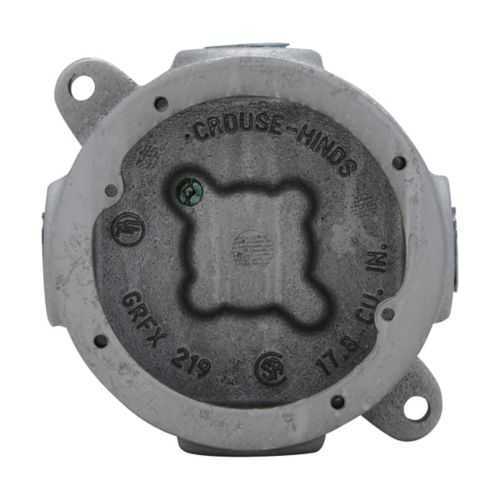

Eaton GRFX219 Condulet GRF Tapped Outlet Box - NEC/CEC
Part Number: GRFX219
Quick Summary
GRFX219 is a tapped Condulet GRF outlet box for surface-mounted electrical installations. Engineers often struggle to find a rugged, code-compliant enclosure that fits shallow depths and supports multiple feeds. This GRF box is rated for Ordinary/Non-Hazardous Locations under NEC/CEC, with Canadian certification references, providing cross-border compliance confidence. With Feraloy iron alloy construction, 6.13 in length, 4.56 in height, and 1.38 in width, it enables compact yet capable panel designs. The combination of solid construction, 4 hubs and 3 plugs, and a 3/4 in tap offers fast, reliable installations while reducing rework and maintenance in demanding industrial settings.
Product Information
Extended Description
GRFX219 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GRF tapped outlet box with lugs, 1-3/8" inside depth, Feraloy iron alloy, Surface mount, 4 hubs, 3 plugs, Blank back boss, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet GRF tapped outlet box with lugs
Catalog Number
GRFX219
Product Length/Depth
6.13 in
Product Height
4.56 in
Product Width
1.38 in
Product Weight
3 lb
UPC
782274449005
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of hubs
4
Number of plugs
3
Mounting method
Surface
Material
Feraloy iron alloy
Inside depth
1-3/8"
Tap size
3/4"
Special features
Blank back boss
Crouse-Hinds series VXF and GRF catalog page
VXF and GRF Conduit Outlet Boxes Canadian certification (GRF)
VXF and GRF Conduit Outlet Boxes Canadian certification (GRF)
Eaton Specification Sheet - GRFX219
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy housing provides robust protection against impact, abrasion, and environmental exposure. Benefit: Reduces replacement costs and downtime in harsh manufacturing environments. Application: Ideal for surface-mounted conduit outlets on outdoor equipment and in harsh indoor plants. Feature: Inside depth of 1-3/8" and tap size of 3/4" support standard conduit fittings. Benefit: Minimizes need for adapters and field modifications, speeding up installation. Application: Suitable for common conduit configurations in control panels and equipment housings. Feature: Four hubs and three plugs enable multiple feeds with fewer components. Benefit: Cuts material costs and assembly time while improving reliability. Application: Complex machine controls and process panels with multiple power and signal runs. Feature: Surface mounting with a blank back boss. Benefit: Easy mounting in tight spaces and room for future customization without redesign. Application: Enclosures on equipment faces where back access is limited. Feature: Compact footprint with 6.13 in length, 4.56 in height, 1.38 in width and a 3 lb weight. Benefit: Space-efficient installation that simplifies cabinet planning and handling. Application: Space-constrained industrial installations and retrofit projects. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Locations rating. Benefit: Ensures code-adherent performance across US/Canada without multiple SKUs. Application: General industrial deployments in non-hazardous environments.
Get a Quick Quote for a Eaton Crouse-Hinds GRFX219
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GRFX219?
Enquire Now
FAQs
GRFX219 is designed for surface mounting and features four hubs and three plugs to accommodate multiple feeds. It accepts standard 3/4" taps and provides a 1-3/8" inside depth, making it compatible with common conduit fittings and fast-panel integration in non-hazardous environments.
Key dimensions are 6.13 inches in length, 4.56 inches in height, and 1.38 inches in width, with an approximate weight of 3 pounds. These specs support compact enclosure layouts while maintaining mechanical strength for industrial use.
Yes. GRFX219 is specified for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards, with cross-border certification references for Canada and the US, making it suitable for multinational facilities.
The GRFX219 carries NEC/CEC compliance for non-hazardous locations and is supported by Canadian certification references. This reduces compliance risk when integrating into multi-region automation systems.
The blank back boss allows for future modifications or additional knockouts without replacing the enclosure, enabling scalable upgrades as wiring schemes evolve, while keeping current installations intact and compliant.
