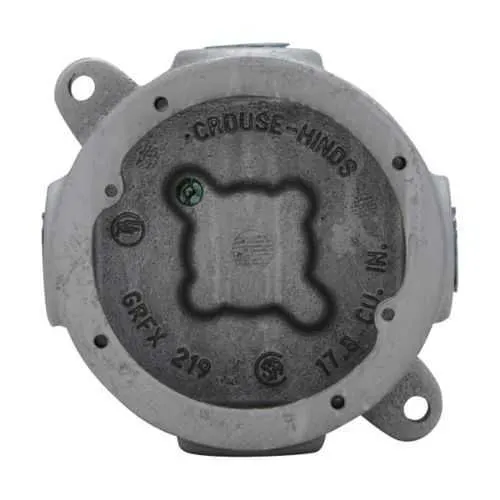

Eaton Crouse-Hinds GRFX229 Condulet - 4 Hubs NEC/CEC
Part Number: GRFX229
Quick Summary
GRFX229 is a Condulet tapped outlet box used in surface-mounted electrical enclosures for industrial machinery and process lines. Downtime and retrofit complexity slow projects; this unit delivers built-in lugs and a surface-mount design for fast, reliable terminations. It supports NEC/CEC compliance and is rated for Ordinary/Non-Hazardous Locations, with UL certification references documented in the catalog. The rugged Feraloy iron alloy housing resists wear in harsh environments, while its compact footprint simplifies panel layouts. With surface mounting and four conduit hubs, it reduces assembly steps and helps maintain protection ratings in busy industrial facilities. This box is ideal for control panels, machine wiring, and process equipment.
Product Information
Extended Description
GRFX229 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GRF tapped outlet box with lugs, 2-1/16" inside depth, Feraloy iron alloy, Surface mount, 4 hubs, 3 plugs, Blank back boss, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet GRF tapped outlet box with lugs
Catalog Number
GRFX229
Product Length/Depth
6.13 in
Product Height
4.56 in
Product Width
2.06 in
Product Weight
3.5 lb
UPC
782274449203
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of hubs
4
Number of plugs
3
Mounting method
Surface
Material
Feraloy iron alloy
Inside depth
2-1/16"
Tap size
3/4"
Special features
Blank back boss
Crouse-Hinds series VXF and GRF catalog page
VXF and GRF Conduit Outlet Boxes Canadian certification (GRF)
VXF and GRF Conduit Outlet Boxes Canadian certification (GRF)
Eaton Specification Sheet - GRFX229
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Four hubs, three plugs and a 3/4 in tap size. Business Impact: Enables multi-conduit terminations and flexible feed-through, reducing the need for adapters and cutting installation time in panels. Application: Control panels and machine enclosures in process lines. Feature: Inside depth of 2-1/16 inches with overall 6.13 inch length, 4.56 inch height, and 2.06 inch width. Business Impact: A compact footprint preserves valuable enclosure space while maintaining ample clearance for conductors and lugs. Application: Retrofit projects where space is constrained. Feature: Feraloy iron alloy housing. Business Impact: Delivers superior durability and corrosion resistance for rugged industrial environments, lowering maintenance costs. Application: Outdoor or washdown areas and high-wrequency vibration zones. Feature: Surface mounting with a blank back boss. Business Impact: Simplifies installation and allows future accessory entry without redesign, reducing rework. Application: New builds and upgrades in electrical distribution within control rooms and equipment rooms. Feature: Certifications and standards: Ordinary/Non-Hazardous Locations; NEC/CEC compliance. Business Impact: Ensures regulatory alignment and smoother equipment approvals, supporting procurement and project timelines. Application: Industrial facilities in North America seeking compliant conduit outlet solutions.
Get a Quick Quote for a Eaton Crouse-Hinds GRFX229
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GRFX229?
Enquire Now
FAQs
GRFX229 uses surface mounting and provides four hubs with three plugs, plus a 3/4 inch tapping option. This configuration supports multiple independent conduit runs within a single enclosure, reducing the need for adapters and simplifying the wiring scheme for control panels and machine enclosures.
GRFX229 is specified for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. It is UL-listed as noted in Eaton’s catalog, making it suitable for North American facilities that require reliable conduit outlet boxes in non-hazardous environments such as control panels and process equipment housings.
The GRFX229 measures 6.13 inches in length, 4.56 inches in height, and 2.06 inches in width, with an inside depth of 2-1/16 inches. It weighs 3.5 pounds. These dimensions support compact installation in standard enclosures while maintaining conduit access and space for terminations.
A 3/4 inch tap size allows practical feeding from established conduit runs, while four hubs enable parallel wiring for multiple circuits. The configuration supports future expansions or changes in control panels without reworking the enclosure, reducing downtime and total cost of ownership.
Plan conduit routing to align with the four hub positions, use the built-in lugs to streamline terminations, and leverage the blank back boss for future accessory entries. Confirm NEC/CEC compliance and ensure surface mounting fits the enclosure footprint to minimize panel modification and commissioning time.
