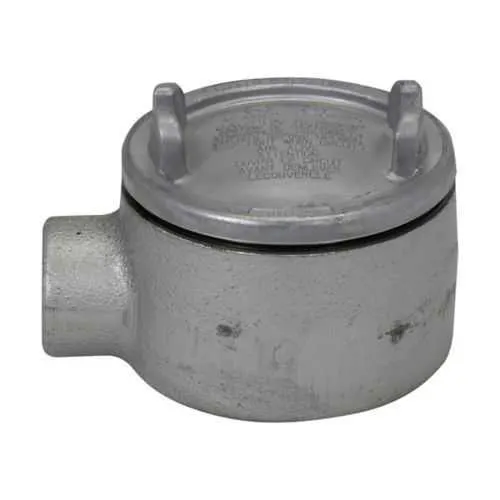

Eaton GUA26 Condulet Outlet Box - Hazardous Locations
Part Number: GUA26
Quick Summary
GUA26 Condulet conduit outlet box provides rugged, weather-resistant terminations for hazardous locations in industrial facilities. Engineers and installers often struggle to safely enclosure classified-area wiring while meeting tight timelines and long-term maintenance needs. This enclosure delivers NEC/CEC compliance and multiple hazardous location ratings, plus NEMA protections 3, 4, 7, 9 to support safe, code-conforming installations. With a compact footprint and a 3 in cover opening for 3/4 in fittings, it integrates easily with existing Condulet systems, reducing project risk and field rework. The Feraloy iron alloy body resists impact and corrosion, lowering lifecycle costs in chemical, oil & gas, and mining environments. Clear cataloging (GUA26) and UPC support fast procurement and asset control.
Product Information
Extended Description
GUA26 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUA26
Product Length/Depth
4.38 in
Product Height
3.5 in
Product Width
2 in
Product Weight
2.3 lb
UPC
782274744834
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Trade size
3/4"
Cover opening diameter
3"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUA26
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feraloy iron alloy housing delivers rugged durability and corrosion resistance in aggressive atmospheres. This translates to extended service life and lower maintenance costs in harsh environments such as chemical plants and refineries. The result is fewer field replacements and more reliable process terminations for critical equipment. The 3 inch cover opening and 3/4 inch trade-size fittings simplify conduit selection, reducing installation time and field adaptation costs while maintaining a compact profile for wired control panels in hazardous areas. The enclosure’s compact dimensions (4.38 in depth, 3.5 in height, 2 in width) fit tight enclosures and crowded installations, helping lower cabinet costs and material waste. NEC/CEC compliance and Hazardous Location ratings (Class I Div 1 & 2, Class II Div 1 & 2, Class III) provide assurance that installations meet code requirements, minimizing regulatory risk. NEMA ratings 3, 4, 7, 9 extend protection against dust, water ingress, and explosive atmospheres, enabling outdoor and demanding indoor use. Catalog number GUA26 and UPC 782274744834 streamline procurement, inventory control, and asset tagging, supporting faster maintenance cycles and reduced downtime. Compatibility with the Condulet family improves retrofit potential and simplifies upgrade paths in existing facilities.
Get a Quick Quote for a Eaton Crouse-Hinds GUA26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUA26?
Enquire Now
FAQs
When installing the GUA26 in Class I/II/III hazardous locations, follow the IF 1730 Condulet installation guidelines and use only conduit connectors rated for hazardous environments. Ensure proper grounding and enclosure sealing per the installation sheet. The 3/4 in trade size satisfies common conduit runs, while the 3 in cover opening provides ample access for wiring while maintaining enclosure integrity.
GUA26 uses a Feraloy iron alloy body for high durability and corrosion resistance in aggressive atmospheres. It supports a 3/4 in trade size and a 3 in cover opening diameter, with overall dimensions of 4.38 in length, 3.5 in height, and 2 in width. The enclosure carries NEC/CEC hazardous location ratings and NEMA ratings 3, 4, 7, 9 for robust protection.
Yes. GUA26 is designed for hazardous locations and is compatible with Condulet installations common in oil & gas and chemical processing plants. Its Class I, II, and III ratings cover Division 1 and Division 2 scenarios, while NEMA 3/4/7/9 ratings support outdoor exposure, dust, water, and ignition-protected environments, making it a versatile choice for process enclosures and control stations.
GUA26 provides NEC/CEC compliance for hazardous locations and Class I/II/III ratings, along with NEMA 3, 4, 7, 9 protection. The UL certification page confirms explosion-proof suitability for hazardous environments. This combination ensures code-conforming installations, safer operation, and reduces regulatory risk during audits and inspections.
The rugged Feraloy alloy housing minimizes corrosion-related maintenance, extending service life and reducing replacement intervals. Its standardized 3/4 in trade size and 3 in cover opening simplify sourcing and spares management. Procurement efficiency is aided by the GUA26 cataloging and UPC, while reliable protection in hazardous areas reduces downtime and supports a lower total cost of ownership over the system lifecycle.
