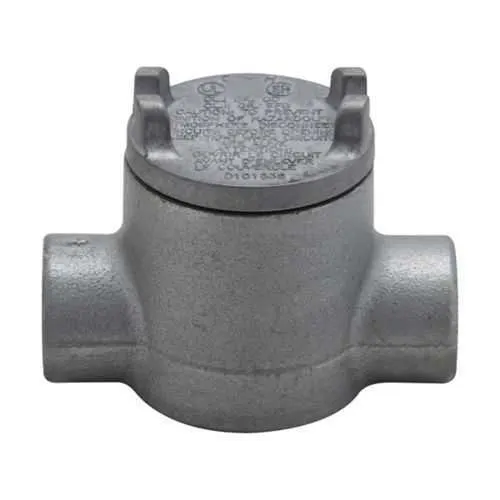

Eaton GUAC16 Condulet GUA Outlet Box - Hazardous Locations
Part Number: GUAC16
Quick Summary
GUAC16 is an Eaton Condulet GUA conduit outlet box used to protect conduits in hazardous locations. In hazardous environments, incorrect enclosure selection can lead to costly downtime and noncompliance. This box meets NEC/CEC requirements for Hazardous/Classified Locations, including Class I Division 1 and II and Class III, and carries NEMA ratings 3, 4, 7, and 9. With a 5.25 in depth and a 3 in cover opening, it supports compact, space-efficient installations in tight spaces. From installation efficiency to regulatory adherence, the combination delivers durable protection and reduces lifecycle costs for industrial control panels and hazardous-area projects.
Product Information
Extended Description
GUAC16 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, C shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAC16
Product Length/Depth
5.25 in
Product Height
3.5 in
Product Width
2 in
Product Weight
3.09 lb
UPC
782274462103
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
C
Trade size
1/2"
Cover opening diameter
3"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAC16
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction provides high strength and corrosion resistance, delivering long-term reliability in harsh environments. Business Impact: reduces maintenance cycles and replacement costs in hazardous locations. Application: suitable for oil, gas, chemical, and dirty industrial facilities where enclosure durability is critical. Feature: 1/2" trade size supports standard conduit fittings and easy integration with existing systems. Business Impact: accelerates field terminations and minimizes project lead times. Application: useful for electrical feeders and control circuits in industrial automation panels. Feature: 3" cover opening diameter enables straightforward access for wiring, testing, and cable management. Business Impact: simplifies installation and serviceability, reducing downtime during maintenance windows. Application: ideal for conduit connections and device mounting in compact control boxes. Feature: C-shaped Condulet GUA design optimizes internal layout and mounting in constrained spaces. Business Impact: improves enclosure density and reduces panel footprint. Application: preferred for wall-mounted and frame-integrated control stations. Feature: NEC/CEC compliance and NEMA ratings (Class I/II/III, 3, 4, 7, 9) provide regulatory certainty. Business Impact: streamlines approvals and lowers risk of nonconformance. Application: essential for hazardous-location projects and compliant industrial infrastructure. Feature: Manageable weight at approximately 3.09 lb supports safe handling by technicians. Business Impact: reduces installation fatigue and drop-risk in field operations. Application: suitable for overhead, wall-mounted, or cabinet-side installation. Feature: Compatibility with IF 1730 installation sheets and UL/UL certification resources. Business Impact: supports proven installation procedures and external documentation for audits. Application: aligns with standard maintenance programs and OEM manuals for Condulet GUA boxes.
Get a Quick Quote for a Eaton Crouse-Hinds GUAC16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAC16?
Enquire Now
FAQs
GUAC16 supports Class I/II/III hazardous locations per NEC/CEC and NEMA ratings 3/4/7/9. For best results, follow IF 1730 installation sheets, use appropriate sealing and gaskets, and verify conduit entries are sized for the 1/2 inch trade connections. This minimizes ingress protection issues and ensures compliant field terminations.
GUAC16 is designed for NEC/CEC compliance and Hazardous/Classified Locations. It carries Class I, Division 1 and 2, Class II Division 1 and 2, and Class III ratings, along with NEMA 3, 4, 7, 9. UL certification references are available via the provided data sheets and UL listing pages, simplifying regulatory audits and safety approvals.
GUAC16 uses a 1/2" trade size and 3" cover opening, aligning with common conduit fittings and standard enclosure practices. Its compact 5.25" depth and 2" width allow mounting in tight spaces, while the 3.09 lb weight facilitates one-person handling in field installations and panel retrofits.
Yes. The Feraloy iron alloy construction reduces corrosion-related maintenance and replacement costs, while NEC/CEC compliance and NEMA ratings streamline approvals and inspections. The result is lower lifecycle costs, faster installation, and reduced downtime in critical process areas such as refining, chemical plants, and offshore facilities.
Eaton provides installation sheets (IF 1730), UL certification references, and specification datasheets for GUAC16. These documents support ongoing maintenance, audits, and regulatory compliance, ensuring technicians have clear guidance for field terminations, sealing, and routine checks.
