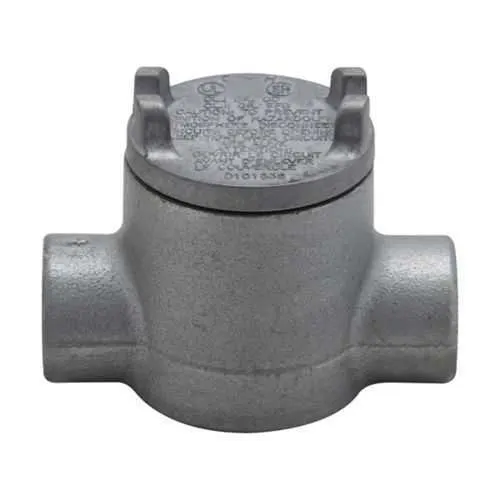

Eaton GUAC24 Conduit Outlet Box - Hazardous Locations
Part Number: GUAC24
Quick Summary
GUAC24 conduit outlet box provides rugged protection for wiring in hazardous locations. Engineers and procurement teams struggle with noncompliant enclosures that slow installs and raise risk. It carries NEC/CEC compliance and hazardous-location ratings (Class I, Div 1/2; Class II Div 1/2; Class III) and a NEMA 3, 4, 7, 9 rating. With a 3/4 in trade size and a 2 in cover opening, GUAC24 supports fast, reliable field assembly. Built from Feraloy iron alloy, it delivers durability with a compact footprint, reducing total installation and maintenance costs.
Product Information
Extended Description
GUAC24 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 2" cover opening diameter, Feraloy iron alloy, C shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAC24
Product Length/Depth
4.25 in
Product Height
2.5 in
Product Width
2 in
Product Weight
1.76 lb
UPC
782274462202
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
C
Trade size
3/4"
Cover opening diameter
2"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAC24
Industrial Fittings Bend Radius and Cubic Capacity Chart
Material and construct: Feraloy iron alloy construction provides rugged durability and high resistance to impact and corrosion in harsh environments. This translates to reduced maintenance cycles and fewer replacements in chemical processing and petrochemical facilities. The Condulet GUA family enclosure is designed for hazardous locations, enabling long service life with minimal downtime. Conduit and cover geometry: A 2 inch cover opening and 3/4 inch trade size simplify wiring and conduit access, reducing installation time and on-site adjustments. This is particularly valuable in tight panels and cramped installations common in refineries and chemical plants. Compliance scope: NEC/CEC compliance, hazardous-location ratings (Class I/Div 1 and 2; Class II/Div 1 and 2; Class III), and a NEMA 3/4/7/9 rating provide comprehensive regulatory coverage. Businesses benefit from smoother audits and verified safety. Compact footprint: At 4.25 inches long, 2 inches wide, and 2.5 inches high, with a weight of 1.76 pounds, the GUAC24 fits compact control panels and minimizes mounting stress. Documentation and installation support: Installation sheets and UL certifications are available (IF1730 series), helping technicians install correctly the first time. Compatibility and ecosystem: Specifically designed for Condulet GUAC/GUA installations and standard 3/4 inch conduits, it integrates with Eaton’s accessory catalog for streamlined replacements and upgrades.
Get a Quick Quote for a Eaton Crouse-Hinds GUAC24
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAC24?
Enquire Now
FAQs
GUAC24 is designed for a 3/4 inch trade size conduit and uses standard Condulet mounting for compatible fit within Eaton’s GUA/GUAC family. This enables straightforward integration into existing enclosures and panels. The 2 inch cover opening provides easy access for wiring and splices, while keeping a compact footprint. For step-by-step mounting, refer to IF 1730 installation sheets and the GUAC24 data page.
GUAC24 carries NEC/CEC compliance and hazardous-location ratings: Class I, Division 1; Class I, Division 2; Class II, Division 1; Class II, Division 2; Class III. It also has a NEMA rating of 3, 4, 7, 9. These ratings support safe operation in oil and gas, chemical processing, and other classified areas, simplifying regulatory compliance and audits.
GUAC24 is well-suited for oil and gas facilities, chemical processing plants, mining operations, and any environment requiring robust enclosure protection in hazardous locations. Its Feraloy iron alloy construction, coupled with rigorous NEC/CEC and NEMA ratings, makes it a reliable choice for protecting wiring in demanding, high-risk industrial settings.
Installation guidance is provided via Eaton’s IF1730 instruction sheets and the GUAC24 data sheet. Additional certification references include UL reports and the Crouse-Hinds catalog pages detailing the GUA/GUAC conduit outlet boxes. Access to these documents helps ensure proper mounting, sealing, and compliance during commissioning and maintenance.
The rugged Feraloy iron alloy construction and sealed design reduce corrosion-related maintenance and field repairs, lowering downtime in hazardous environments. Although the upfront cost is higher than generic enclosures, the extended service life, reduced maintenance cycles, and smoother regulatory compliance contribute to a favorable total cost of ownership over the equipment lifecycle.
