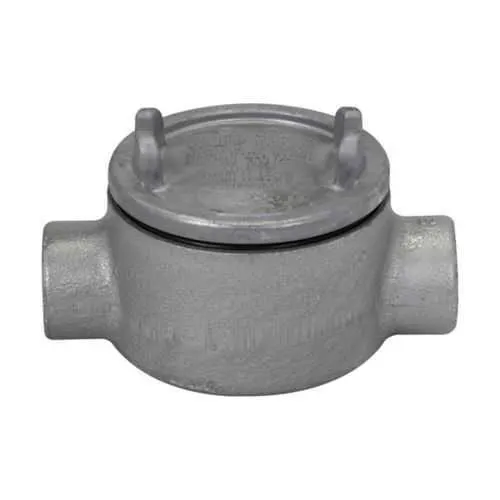

Eaton Crouse-Hinds GUAC69 Conduit Outlet Box - Hazardous Locations
Part Number: GUAC69
Quick Summary
Conduit Outlet Box is a rugged enclosure for protecting splices and terminations in hazardous-area electrical installations. Engineers often struggle with moisture ingress, dust, and regulatory pressure when locating enclosures in hazardous zones. It carries NEC/CEC compliance along with hazardous-location ratings (Class I Division 1, Class I Division 2, Class II Division 1, Class II Division 2, and Class III) and durable outdoor-ready NEMA constructions for reliable service. Designed with compatibility in mind, it integrates with Condulet GUA fittings and standard installation practices, delivering dependable protection while reducing field rework and downtime for critical processes.
Product Information
Extended Description
GUAC69 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 5" cover opening diameter, Feraloy iron alloy, C shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAC69
Product Length/Depth
7.88 in
Product Height
5.75 in
Product Width
4.03 in
Product Weight
9.6 lb
UPC
782274462806
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
C
Trade size
2"
Cover opening diameter
5"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAC69
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy housing delivers exceptional corrosion resistance and mechanical strength in exposure to salt spray, moisture, dust, and chemicals. Business Impact: extends service life, lowers maintenance and replacement costs, reduces unplanned downtime in mission-critical systems. Application: ideal for outdoor enclosures, chemical plants, offshore platforms, and battery facilities where exposure to harsh environments and vibration is routine. Feature: 2 inch trade size with a 5 inch cover opening diameter provides robust wiring access and flexible termination options. Business Impact: reduces installation time and minimizes wiring congestion, improving panel density and testability. Application: fits standard conduits and Condulet GUA configurations, enabling quick retrofits, scalable control cabinets, and easier field wiring transitions. Feature: C-shaped Condulet GUA conduit outlet box with cover simplifies mounting, inspection, and servicing. Business Impact: lowers field labor, rework, and risk of improper sealing during maintenance. Application: widely used in hazardous locations where quick access to splices is essential, including motor control centers and safety-critical feeders. Feature: NEC/CEC certification and NEMA ratings 3, 4, 7, 9 ensure regulatory compliance and durable performance in a broad range of hazardous and outdoor environments. Business Impact: mitigates risk of non-compliance penalties, reduces downtime, and enhances asset protection. Application: suitable for Class I/II/III, hazardous and classified locations per NEC guidelines, with UL certification support. Feature: Clear identification, model GUAC69, and compatibility with Eaton Crouse-Hinds Condulet products. Business Impact: streamlines procurement and integration across plant-wide conduit systems, reducing SKU fragmentation. Application: use in new builds and retrofits across industrial facilities, including hazardous-area panels, switchgear, and instrumentation enclosures.
Get a Quick Quote for a Eaton Crouse-Hinds GUAC69
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAC69?
Enquire Now
FAQs
GUAC69 is designed to work with Condulet GUA fittings, using a 2 in trade size and a 5 in cover opening to enable seamless integration into existing GUA conduit systems. The C-shaped housing and standardized dimensions simplify retrofits, reduce field customization, and support quick commissioning. For best results, pair with matching GUA gaskets and mounting hardware from Eaton.
GUAC69 carries NEC/CEC compliance and hazardous-location ratings: Class I Division 1, Class I Division 2, Class II Division 1, Class II Division 2, and Class III. It also meets NEMA ratings 3, 4, 7, and 9, providing robust protection for outdoor and hazardous-area installations. These specifications help ensure regulatory alignment and reliable performance in challenging environments.
Refer to IF 1730 and the Eaton GUAC69 specification sheet for installation guidance. Typical steps include selecting the correct 2 in trade size, mounting the box to the enclosure surface or backing, sealing with the appropriate Condulet GUA gasket, routing conductors through knockouts, and securing the cover to maintain enclosure integrity in hazardous locations. Follow all local codes for final commissioning.
Yes, GUAC69 is designed for hazardous and classified locations per NEC requirements, including Class I, II, and III environments. It is built from a corrosion-resistant Feraloy iron alloy, suitable for outdoor, chemical, and industrial settings where exposure to moisture, dust, and chemicals is common. It provides reliable protection for splices and terminations in demanding conditions.
The GUAC69 conduit outlet box can reduce maintenance cycles and field rework due to its durable construction and compatibility with Condulet GUA fittings. Its robust materials and ratings lower the risk of corrosion-related failures, while NEC/CEC compliance minimizes regulatory risk. Over time, this translates to lower downtime, fewer spare parts, and a lower total cost of ownership.
