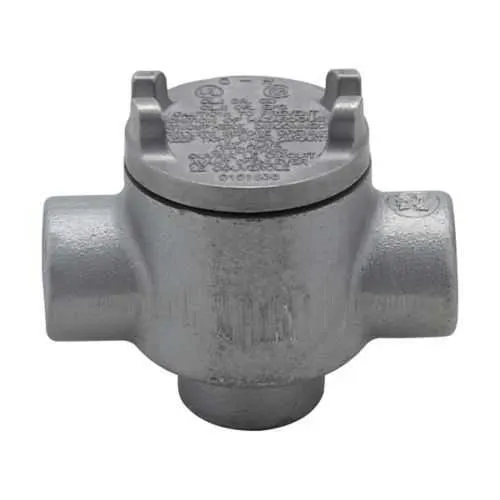

Eaton GUAD16 Condulet GUA Outlet Box - Hazardous Locations
Part Number: GUAD16
Quick Summary
GUAD16 Condulet GUA conduit outlet box provides a rugged enclosure for hazardous-location electrical terminations in industrial controls and machinery. Facility teams often wrestle with unsafe splices, cramped panels, and noncompliant enclosures that slow startups and raise risk in harsh environments. This Condulet GUA unit carries NEC/CEC compliance and hazardous-location ratings, including Class I Division 1 and Division 2, Class II Division 1 and 2, Class III, along with NEMA 3, 4, 7, 9 protection. Built to endure vibration, corrosion, and impact, it supports 1/2" trade size conduits and a 3" cover opening, delivering reliable terminations, easier installation, and longer service life for critical industrial systems.
Product Information
Extended Description
GUAD16 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, D shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAD16
Product Length/Depth
5.25 in
Product Height
3.5 in
Product Width
2.88 in
Product Weight
2.43 lb
UPC
782274744889
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
D
Trade size
1/2"
Cover opening diameter
3"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAD16
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feraloy iron alloy construction delivers rugged durability that withstands impact and harsh chemical environments, reducing maintenance needs and extending service life in hazardous location installations. This translates to lower lifecycle costs and fewer field repairs for control panels in mining, refining, or chemical processing facilities. The D-shaped body optimizes panel space while maintaining a compact footprint, and the 1/2" trade size conduit compatibility simplifies field terminations and inventory management. A 3" cover opening provides ample wiring access, which minimizes rework and accelerates commissioning in tight enclosures. With dimensions of 5.25 in length, 3.5 in height, and 2.88 in width (weight 2.43 lb), GUAD16 fits standard cutouts and supports quick mounting. Compliance with NEC/CEC and NEMA ratings gives confidence for hazardous-area projects while installation resources (IF 1730 and datasheets) streamline setup. This enclosure also aligns with UL certification expectations and installation best practices, reducing risk and ensuring long-term reliability.
Get a Quick Quote for a Eaton Crouse-Hinds GUAD16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAD16?
Enquire Now
FAQs
For safe, compliant installations, follow the IF 1730 guidance and use proper enclosure seals and gaskets. Ensure the box is mounted in a location with appropriate clearance and that wiring entries are rated for hazardous areas. Verify conduit fits are 1/2 in trade size and that the cover is properly torqued to maintain enclosure integrity.
Yes, GUAD16 is designed for 1/2 inch trade size conduits. The cover opening diameter is 3 inches, providing ample space for safe wiring and terminations. This combination supports efficient field terminations while preserving a compact enclosure footprint suitable for restricted panel spaces.
GUAD16 carries NEC/CEC compliance with NEC hazardous ratings for Class I Division 1 and 2, Class II Division 1 and 2, and Class III. It also features NEMA ratings 3, 4, 7, 9, and is suited for hazardous/classified locations. This combination supports regulatory adherence and safer installation across diverse industrial sectors.
The rugged Feraloy iron alloy enclosure resists corrosion and impact, reducing field failures. Its compact D-shaped form simplifies panel mounting, while the 3" opening and 1/2" conduit compatibility speed wiring and terminations. Together with documented installation guidelines, the unit shortens commissioning time and lowers maintenance frequency in hazardous-location systems.
Key resources include the Crouse-Hinds GUA catalog page, the GUAD16 specification sheet, and IF 1730 installation sheets. Additional UL certification references and technical service bulletins are available through Eaton’s documentation library, helping engineers verify compliance, wiring methods, and installation best practices for hazardous-location enclosures.
