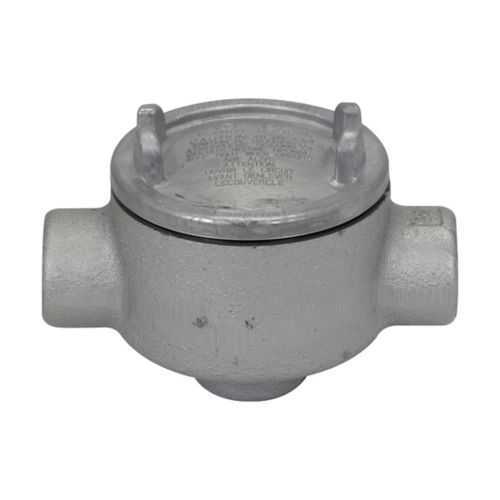

Eaton GUAD26 Condulet GUA Outlet Box - Hazardous
Part Number: GUAD26
Quick Summary
The Eaton GUAD26 Condulet GUA conduit outlet box protects electrical connections in hazardous locations while delivering quick, accessible wiring access. This enclosure helps reduce downtime and errors during maintenance by offering a rugged, clearly labeled space for terminations. It carries NEC/CEC compliance and hazardous-location ratings, along with NEMA configurations 3, 4, 7 and 9 to withstand challenging environments. In practice, engineers value the 3/4" trade size, 3" cover opening, and compact D shape for fast, scalable installations across projects, improving standardization and long-term reliability. This combination also supports streamlined procurement and service across multiple automation initiatives.
Product Information
Extended Description
GUAD26 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, D shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAD26
Product Length/Depth
5.25 in
Product Height
3.5 in
Product Width
2.88 in
Product Weight
2.5 lb
UPC
782274463209
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
D
Trade size
3/4"
Cover opening diameter
3"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAD26
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feraloy iron alloy construction provides superior durability and corrosion resistance in harsh industrial environments, delivering lower maintenance costs and extended service life for outdoor and washdown applications. The rugged body enables reliable performance in hazardous locations, reducing replacement and downtime while meeting stringent NEC/CEC requirements. The D-shaped profile simplifies mounting in tight panels and awkward orientations, improving field fit and reducing installation time. A 3/4" trade size and a 3" cover opening offer straightforward wiring access for splices and terminations, accelerating commissioning and servicing while preserving enclosure integrity. NEMA ratings 3, 4, 7, and 9 ensure protection against dust, water ingress, and impact in demanding facilities such as chemical plants and refineries. The 5.25" length, 3.5" height, and 2.88" width keep the unit compact without compromising serviceability, while a 2.5 lb weight aids in handling during installation. Compatibility with standard conduit fittings from the Condulet GUA family supports scalable projects and reduces inventory complexity. Industry-standard data pages and installation sheets from Eaton further simplify procurement and field installation, addressing common objections about installation time and compliance risk. This design also supports cost-of-ownership benefits by standardizing components across multiple sites, enabling faster repairs and easier spares management.
Get a Quick Quote for a Eaton Crouse-Hinds GUAD26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAD26?
Enquire Now
FAQs
GUAD26 installs like other Condulet GUA boxes: mount to a suitable enclosure or wall, connect 3/4" trade size conduits, insert splices or terminations in the 5.25" L x 3.5" H x 2.88" W body, then seal with the 3" cover opening. Use appropriate hardware and follow IF 1730 guidance to ensure a compliant, gasketed enclosure suitable for Class I/II, Division 1 and 2 conditions.
GUAD26 features a 3/4" trade size, 3" cover opening, D-shaped profile, and a Feraloy iron alloy body. Dimensions are 5.25" (L) x 3.5" (H) x 2.88" (W); weight is 2.5 lb. It carries NEC/CEC compliance, Hazardous/Classified Locations ratings, and NEMA ratings 3, 4, 7, 9, making it suitable for harsh industrial environments.
Yes. GUAD26 is designed for hazardous locations and aligns with Class I, II, and III classifications, making it appropriate for oil & gas upstream/downstream facilities and chemical processing plants. Its rugged Feraloy body, protective NEMA ratings, and a compact, conduit-friendly footprint support reliable control wiring in demanding environments.
GUAD26 supports NEC/CEC compliance and hazardous-location ratings with NEMA 3, 4, 7, 9. The GUA conduit outlet boxes also have UL certification documentation available, reinforcing compliance with industry safety standards and explosion-protection requirements for hazardous-area installations.
The Feraloy iron alloy body extends service life in tough environments, reducing replacement cycles and downtime. Standardized 3/4" conduits and 3" covers simplify stocking and spares, lowering inventory costs. The enclosure’s robust protection minimizes corrosion and water ingress, improving uptime across sites and delivering measurable ROI through lower maintenance and faster repairs.
