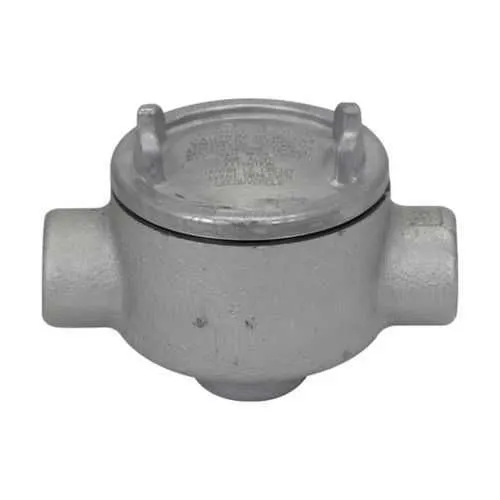

Eaton GUAD36 Condulet GUA Outlet Box - Hazardous
Part Number: GUAD36
Quick Summary
The GUAD36 Condulet GUA conduit outlet box from Eaton Crouse-Hinds protects wiring in hazardous locations. Field technicians often struggle with ensuring enclosure integrity and leak-proof seals in explosive atmospheres. It carries NEC/CEC compliance, UL explosion-protection certification, and NEMA ratings 3, 4, 7, and 9, giving installers confidence and uptime. Coupled with its rugged Feraloy iron alloy body and 1" trade size, this box supports fast field installs and reliable long-term performance. By integrating with Eaton's Condulet ecosystem, it reduces wiring errors and simplifies maintenance—ideal for industrial enclosures and hazardous-location applications. Its 5.5 in length and 3.5 in height fit compact spaces while offering ample internal volume.
Product Information
Extended Description
GUAD36 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, D shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAD36
Product Length/Depth
5.5 in
Product Height
3.5 in
Product Width
3.31 in
Product Weight
3.83 lb
UPC
782274463308
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
D
Trade size
1"
Cover opening diameter
3"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAD36
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy body and D-shaped design provide rugged enclosure protection. Benefit: High impact resistance and corrosion protection translate to longer service life in harsh environments. Application: Chemical plants, mining, and offshore installations where enclosure integrity is critical. Feature: NEC/CEC compliance, UL explosion-protection certification, and NEMA ratings 3, 4, 7, 9. Benefit: Concrete regulatory alignment reduces risk of non-compliance penalties while supporting safe operation. Application: Refineries, paint booths, and other hazardous-area facilities requiring proven protection. Feature: 1" trade size, 3" cover opening, and D-shaped body with 5.5" length x 3.5" height. Benefit: Standard conduit compatibility and generous internal space for conductors and terminations, enabling quick terminations. Application: New builds and retrofit projects where space constraints exist. Feature: Condulet GUA compatibility and IF 1730 installation guidance. Benefit: Streamlined installation with fewer field modifications and reliable sealing. Application: Wiring in Eaton embedded ecosystems for faster commissioning. Feature: Weight of 3.83 lb and solid construction. Benefit: Manageable handling during install and durable mounting over the project lifecycle. Application: On-site mounting in constrained spaces, reducing service time and maintenance costs.
Get a Quick Quote for a Eaton Crouse-Hinds GUAD36
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAD36?
Enquire Now
FAQs
GUAD36 is designed as part of the Eaton Condulet GUA family, compatible with standard Condulet mounting footprints and 1" trade-size conduits. The IF 1730 instruction sheet provides step-by-step guidance for quick, code-compliant installations, minimizing field modifications and ensuring proper gland sealing and termination.
The GUAD36 supports NEC/CEC compliance, UL explosion-protection certification for Condulet GUA, and NEMA ratings 3, 4, 7, and 9. It is suitable for Hazardous/Classified Locations with Class I, II, and III ratings, delivering regulatory assurance for critical process areas.
This box excels in hazardous locations across chemical plants, oil and gas facilities, mining, and offshore operations. Its 1" trade size and 3" cover opening accommodate standard conduits while maintaining a compact footprint for tight install spaces.
With NEC/CEC alignment, UL certification, and rugged Feraloy iron alloy construction, the GUAD36 reduces risk of non-compliance and corrosion-related maintenance. Its compatibility with the Condulet ecosystem simplifies replacements, inspections, and long-term service planning.
Yes. The IF 1730 installation sheet, the Crouse-Hinds GUA catalog page, and the Eaton specification sheet for GUAD36 provide installation steps, dimensional data, and wiring guidelines. These resources help ensure correct sealing, termination, and code-compliant mounting in hazardous environments.
