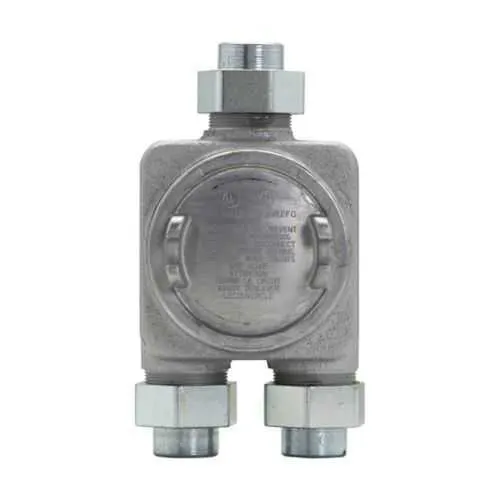

Eaton GUAG6775 Junction Box - Hazardous/Classified Locations
Part Number: GUAG6775
Manufacturer
Eaton Crouse-Hinds
Part number
GUAG6775
Quick Summary
Eaton GUAG6775 junction box is a rugged enclosure that protects field connections in hazardous locations. In harsh environments, users often contend with dust ingress, corrosion, and strict code requirements that drive costly rework and downtime. This model meets NEC/CEC standards for Hazardous/Classified Locations with Class I Division 1 and 2, Class II Division 1 and 2, and Class III ratings, enabling safer operation in oil, gas, chemical processing, and mining settings. Its 8.5 in length, 5.7 in height, and 3 in width, combined with a 3-hub layout and durable Feraloy iron alloy, support fast, reliable installs and long-term reliability. For engineers and procurement teams, GUAG6775 integrates smoothly into existing Eaton enclosure ecosystems to streamline compliance and maintenance workflows.
Product Information
Extended Description
GUAG6775 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GUAG junction box, 3/4" bottom hub, Feraloy iron alloy, 3 hubs, 1/2" top hub
Product Name
Eaton Crouse-Hinds series GUAG junction box
Catalog Number
GUAG6775
Product Length/Depth
8.5 in
Product Height
5.7 in
Product Width
3 in
Product Weight
8.38 lb
UPC
782274463704
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Number of hubs
3
Bottom hub size
3/4"
Top hub size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Explosionproof Junction Boxes with Union Hubs catalog page
GUA Explosionproof Junction Boxes with Union Hubs UL certification
Eaton Specification Sheet - GUAG6775
Feature: Three-hub configuration with bottom 3/4 inch and top 1/2 inch hubs enables versatile conduit routing and reduces field modifications. Benefit: Speeds wiring and minimizes on-site fabrication, lowering installation costs and project risk in constrained spaces. Application: Suitable for complex plant layouts where conduit routing flexibility is essential. Feature: Feraloy iron alloy construction delivers robust durability in harsh environments. Benefit: Improves resistance to impact and corrosion in hazardous locations, reducing maintenance costs and unplanned downtime. Application: Ideal for chemical processing, mining, and refineries where enclosure integrity is critical. Feature: Precise dimensions—8.5 in L, 5.7 in H, 3 in W—with a total weight of 8.38 lb. Benefit: Predictable fit in equipment rooms and on-mounting surfaces, simplifying layout planning and handling. Application: Best for retrofit projects and new installations with limited mounting space. Feature: NEC/CEC compliance and explicit Class I, II, III ratings. Benefit: Ensures compliance with regulatory requirements, streamlining inspections and reducing certification risk. Application: Essential for projects in hazardous locations requiring documented certifications. Feature: 3 hubs for multi-conduit convenience and top/bottom hub sizing. Benefit: Facilitates scalable wiring schemes and easier future expansions. Application: Supports modular upgrades to accommodate evolving process needs.
Get a Quick Quote for a Eaton Crouse-Hinds GUAG6775
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAG6775?
Enquire Now
FAQs
GUAG6775 provides a three-hub configuration with bottom 3/4" and top 1/2" hubs, enabling flexible conduit routing. When installing in hazardous areas, ensure compatible conduits and seal covers meet local codes. The enclosure uses Feraloy iron alloy for durability, supporting safe wiring in Class I, II, and III environments.
GUAG6775 is aligned with NEC/CEC standards for hazardous/classified locations and carries NEC hazardous ratings that cover Class I, Division 1 and 2, Class II Division 1 and 2, and Class III. These certifications help ensure compliance during inspections, reduce project risk, and enable safe operation in oil, gas, and chemical processing facilities.
Yes, GUAG6775 supports 3 hubs with a bottom 3/4" hub and a top 1/2" hub, allowing common conduit sizes to be used in hazardous locations. This configuration minimizes field adapters and streamlines installation, while the three-hub design supports more complex wiring schemes typical in industrial plants.
The GUAG6775 enclosure measures 8.5 inches in length, 5.7 inches in height, and 3 inches in width, with a product weight of 8.38 pounds. These specifications help in mounting calculations, space planning, and ensuring adequate clearance for wiring and connectors in control rooms or outdoor enclosures.
By combining NEC/CEC compliance with Hazardous/Classified Location ratings and a durable Feraloy iron alloy body, GUAG6775 reduces inspection findings and maintenance cycles. The three-hub design simplifies future expansions, cutting wiring time and enabling quicker project delivery, which translates to lower lifecycle costs and improved ROI for high-risk industrial facilities.
