Eaton GUAL16 Conduit Outlet Box - Hazardous/Classified
Part Number: GUAL16
Quick Summary
GUAL16 Conduit Outlet Box by Eaton Crouse-Hinds safely houses conduit connections for hazardous location installations. Engineers often struggle with durable enclosures that withstand Class I/II/III environments while keeping wiring accessible. This box delivers NEC/CEC compliance with Hazardous/Classified Locations, and it offers NEMA ratings 3, 4, 7 and 9 to ensure dependable protection in demanding conditions. Its compact 4.38 in length, 4.38 in height, and 2 in width, combined with a rugged Feraloy iron alloy construction, help reduce maintenance costs and accelerate installation in space-constrained equipment rooms.
Product Information
Extended Description

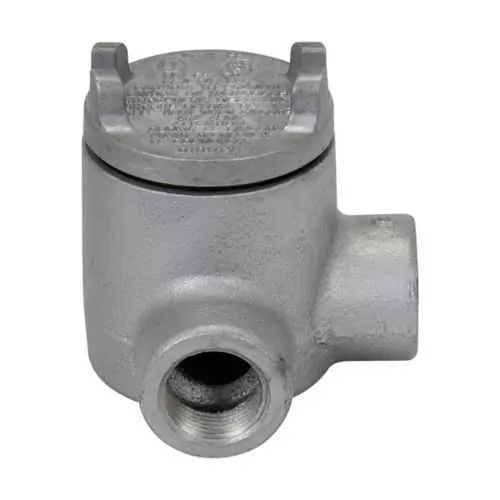

GUAL16 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, L shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAL16
Product Length/Depth
4.38 in
Product Height
4.38 in
Product Width
2 in
Product Weight
2.25 lb
UPC
782274464800
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
L
Trade size
1/2"
Cover opening diameter
3"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAL16
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature → Business Impact → Application: The Feraloy iron alloy body provides rugged, corrosion-resistant protection for wiring in harsh environments, extending service life and lowering replacement costs in chemical plants and offshore facilities. This translates into fewer field repairs and safer operations in hazardous locations. Feature → Regulatory compliance → Application: NEC/CEC compliance paired with Hazardous/Classified area ratings and NEMA 3/4/7/9 minimizes risk of non-compliance penalties and unplanned downtime across industrial plants. Feature → Layout compatibility → Application: A compact L-shaped enclosure with a 3" cover opening and 1/2" trade size supports quick wiring access and standard conduit fittings, ideal for tight machine cabinets and control panels in automation systems. Feature → Installation efficiency → Application: The 4.38 in length/depth and 2 in width enable easier mounting in tight spaces, reducing install time and labor costs on new builds or retrofits. Feature → Documentation and standards → Application: Access to IF 1730 installation sheets and Eaton specification data sheets streamlines commissioning and ensures correct use in critical applications like process automation and hazardous-area control rooms. Feature → Long-term reliability → Application: Continuous protection from dust, moisture, and chemical exposure with proven enclosure materials supports uptime in demanding industrial environments.
Get a Quick Quote for a Eaton Crouse-Hinds GUAL16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAL16?
Enquire Now
FAQs
GUAL16 is designed for hazardous/classified locations and provides a robust enclosure for conduit terminations. It supports NEC/CEC compliance, NEMA ratings 3/4/7/9, and Class I/II/III environments, making it suitable for chemical plants, refineries, and other harsh-industrial settings.
Key specs include a 4.38 in length/depth, 4.38 in height, and 2 in width; a 3 in cover opening diameter; 1/2 in trade size; and a Feraloy iron alloy body. It is built as an L-shaped Condulet box suitable for tight spaces and standard conduit fittings.
Yes. With hazardous area ratings and NEC/CEC compliance, the GUAL16 is well-suited for chemical plants and other process facilities where protection from dust, moisture, and corrosive exposure is critical.
The unit carries NEC/CEC compliance, Hazardous/Classified Locations ratings, and NEMA ratings 3/4/7/9. It is typically used alongside UL-listed Condulet boxes for explosion-proof or hazardous-location applications.
The combination of rugged construction, compact dimensions, and clearly documented installation instructions reduces field labor, minimizes downtime, and provides reliable long-term protection for wiring in hazardous areas, enabling faster commissioning and lower maintenance costs.
