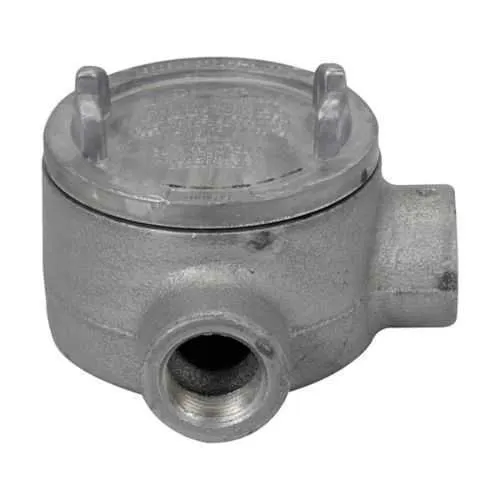

Eaton Crouse-Hinds GUAL36 Condulet Outlet Box - Hazardous Locations
Part Number: GUAL36
Quick Summary
The Eaton Crouse-Hinds GUAL36 Condulet outlet box provides rugged enclosure protection for conduit terminations in hazardous locations. Contractors often struggle to maintain safety and regulatory compliance when mounting enclosures in demanding environments, leading to inspection delays and costly retrofits. This model aligns with NEC/CEC standards and supports Class I, II, and III hazardous locations, along with NEMA ratings 3, 4, 7 and 9 for broad protection. By delivering a ready-to-install solution with a 1" trade size and a 3" cover opening, it reduces field errors and downtime. The combination of robust materials and established installation guidelines supports reliable, compliant operations while aligning with maintenance workflows and procurement priorities.
Product Information
Extended Description
GUAL36 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, L shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAL36
UPC
782274465104
Product Length/Depth
4.5 in
Product Height
4.5 in
Product Width
2.31 in
Product Weight
3.6 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
L
Trade size
1"
Cover opening diameter
3"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAL36
Industrial Fittings Bend Radius and Cubic Capacity Chart
Material strength meets harsh environment demands with Feraloy iron alloy construction, delivering corrosion and impact resistance critical for chemical plants and mining sites. Business impact: longer service life and lower maintenance costs; Application: outdoor andIEC-exposed hazardous locations. The 1" trade size with a 3" cover opening simplifies wiring and access, reducing installation time and labor costs on control panels in restricted spaces. Application: retrofits and new builds in hazardous zones. L-shaped GUA geometry optimizes mounting in tight panels, enabling easier routing of conduits and faster project completion. Business impact: lower installation risk and improved reliability; Application: compact enclosures in limited-clearance panels. Dimensions of 4.5 in L and H with a 2.31 in width create a compact footprint that fits standard electrical layouts, reducing cabinet footprint and material costs. Application: panel design in process industries. Certified for hazardous locations with NEC/CEC, Class I/II/III ratings and NEMA 3/4/7/9 protection, ensuring compliance and safer operation. Business impact: minimizes risk of non-compliance penalties and accelerates approvals; Application: regulated environments. Catalog pages and installation sheets (IF 1730) streamline procurement and field installation, cutting project timelines and improving on-site accuracy. Application: project planning and field deployment. Insight: leveraging Condulet GUA series provides continuity with existing Eaton Crouse-Hinds infrastructure, ensuring compatibility across components and reducing total cost of ownership.
Get a Quick Quote for a Eaton Crouse-Hinds GUAL36
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAL36?
Enquire Now
FAQs
GUAL36 is designed for a 1 in trade size and a 3 in cover opening, enabling straightforward wiring in restricted spaces. For field installs, refer to IF 1730 installation sheets and the Crouse-Hinds catalog page to ensure compatible fittings and correct sealing methods in hazardous locations.
GUAL36 carries NEC/CEC compliance with Class I, II, and III hazardous location ratings and NEMA configurations 3, 4, 7, 9. These certifications guarantee suitability for hazardous environments, provide regulatory confidence, and support safe operation under explosion-prone and outdoor conditions.
Best for chemical processing, oil and gas, mining, and other hazardous-location facilities where reliable conduit terminations are essential. Its Feraloy iron alloy shell, 1 in trade size, and 3 in cover opening support durable field installations in tough environments with stringent safety requirements.
The combination of corrosion-resistant Feraloy alloy, compact L-shape, and certified hazardous-location ratings reduces maintenance frequency and replacement costs. The installation aids and documentation also shorten project timelines, lowering labor costs and enabling quicker ROI in industrial plants.
Key documents include the Crouse-Hinds Conduit Outlet Boxes catalog page, IF 1730 installation sheet, and the Eaton specification sheet for GUAL36. UL certification information and the GUA GUAL series catalogs further support compliance and design validation during supplier selection.
