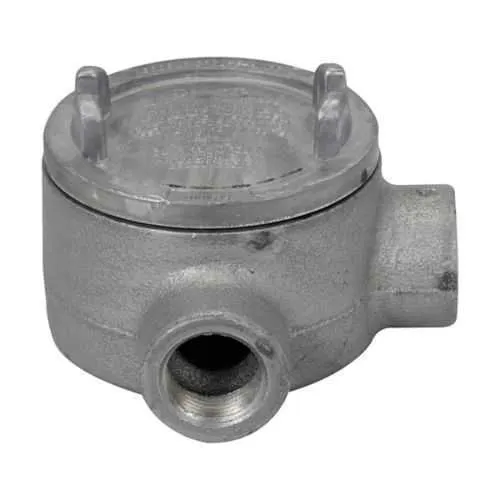

Eaton Crouse-Hinds GUAL47 Condulet Outlet Box - Hazardous
Part Number: GUAL47
Quick Summary
GUAL47 is a Condulet GUA conduit outlet box designed for hazardous locations. This enclosure protects cables and connections in challenging environments, reducing risk of exposure and downtime. Designed for NEC and CEC compliance, it carries Class I, Division 1 and 2 ratings, Class II Division 1 and 2, and Class III, along with NEMA ratings 3, 4, 7, and 9, ensuring suitability for a wide range of hazardous-area installations. The rugged Feraloy iron alloy housing, combined with a compact L-shape and 1-1/4 in trade size, simplifies routing and mounting in confined spaces. In practical terms, engineers gain faster installation, fewer field modifications, and improved audit readiness, while maintenance teams benefit from durable protection that lowers total cost of ownership. This aligns with broader enclosures & electrical infrastructure strategies.
Product Information
Extended Description
GUAL47 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3-5/8" cover opening diameter, Feraloy iron alloy, L shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAL47
UPC
782274465203
Product Length/Depth
5.25 in
Product Height
5.25 in
Product Width
2.69 in
Product Weight
4.75 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
L
Trade size
1-1/4"
Cover opening diameter
3-5/8"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAL47
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feraloy iron alloy construction delivers corrosion resistance and mechanical strength, reducing maintenance cycles and replacement costs in aggressive environments. In hazardous locations such as chemical plants or oil/gas facilities, this rugged enclosure improves reliability and uptime. The 1-1/4 in trade size with dimensions of 5.25 in length/depth, 5.25 in height, and 2.69 in width, plus a 3-5/8 in cover opening, enables compact routing and quicker assembly in tight spaces. The L-shaped design provides mounting flexibility, allowing conduit routing to align with existing infrastructure and minimizing field modifications. NEC/CEC compliance, Class I, II, and III ratings, and NEMA 3/4/7/9 protection simplify qualification and reduce compliance risk during audits. Availability of official installation sheets and datasheets supports fast, error-free installation and long-term maintenance planning.
Get a Quick Quote for a Eaton Crouse-Hinds GUAL47
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAL47?
Enquire Now
FAQs
The GUAL47 is designed for hazardous/classified locations with a compact L-shaped form, 1-1/4 in trade size, and dimensions of 5.25 in L and H by 2.69 in W. Use in NEC/CEC-compliant installations is supported by Class I, II, and III ratings and NEMA 3/4/7/9 protection, making it suitable for rugged environments and tight mounting spaces.
Yes. It is rated for NEC/CEC hazardous locations and carries Class I, Division 1 and 2, Class II Division 1 and 2, and Class III classifications, along with NEMA Ratings 3, 4, 7, and 9. UL certification resources are available for Condulet GUA/GUR boxes to support compliance documentation.
Key dimensions are 5.25 in length/depth, 5.25 in height, and 2.69 in width, with a cover opening of 3-5/8 in. The enclosure weighs 4.75 lb. These specs support compact routing in confined spaces while providing robust protection, reducing the need for additional mounting hardware and simplifying alignment with conduits.
The GUAL47 is ideal for hazardous/classified locations in oil & gas, chemical processing, power generation, and other industrial facilities requiring explosion-protected enclosures. Its Feraloy iron alloy construction, combined with NEC/CEC and NEMA certifications, supports safe, compliant operation in demanding environments.
Official resources include the Crouse-Hinds GUA Conduit Outlet Boxes catalog page, IF 1730 installation sheets, the Eaton specification sheet for GUAL47, and UL certification references. These documents support correct installation, wiring methods, and compliance verification for hazardous-location applications.
