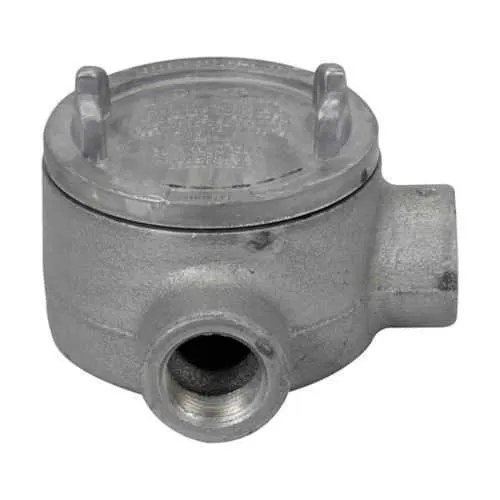

Eaton GUAL59 Condulet GUA conduit outlet box - Hazardous Locations
Part Number: GUAL59
Quick Summary
GUAL59 conduit outlet box from Eaton Crouse-Hinds securely terminates and protects conduit connections in hazardous locations. In harsh environments, field terminations are vulnerable to corrosion, moisture ingress, and miswiring, driving costly downtime and maintenance. This enclosure carries NEC/CEC compliance with Class I, II, and III ratings and supports NEMA 3, 4, 7, 9 protection, giving engineers confidence for rugged sites. Designed for a 1-1/2 inch trade size with a 5 inch cover opening, it integrates with standard fittings and reduces installation time, delivering measurable uptime and long-term cost savings for industrial facilities.
Product Information
Extended Description
GUAL59 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 5" cover opening diameter, Feraloy iron alloy, L shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAL59
UPC
782274465401
Product Length/Depth
6.81 in
Product Height
6.81 in
Product Width
4.03 in
Product Weight
10.55 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
L
Trade size
1-1/2"
Cover opening diameter
5"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAL59
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature → Business Impact → Application: Feraloy iron alloy construction delivers exceptional durability and corrosion resistance in harsh environments, reducing replacement frequency and maintenance costs while extending service life in chemical plants, mining sites, and outdoor installations. This rugged material choice translates to lower total cost of ownership and safer terminations in hazardous areas. Feature → Business Impact → Application: L-shaped enclosure with 6.81 in length/depth and 6.81 in height, plus 4.03 in width, provides compact mounting and straightforward alignment in restricted spaces, speeding panel assemblies and reducing field retrofit time for control rooms and process lines. Feature → Business Impact → Application: 5 inch cover opening and 1-1/2 inch trade size enable fast, reliable cable entry with compatible fittings, minimizing misfits and rework during panel wiring at plant sites. Feature → Business Impact → Application: NEC/CEC compliance and NEMA ratings 3, 4, 7, 9 offer compliant protection in hazardous and classified locations, simplifying procurement and installation qualification for oil & gas, chemical processing, and power generation facilities. Feature → Business Impact → Application: Included installation resources and documentation streamline onboarding, cutting field support calls and enabling maintenance teams to accelerate service windows. Feature → Business Impact → Application: Clear traceability with catalog, UPC, and UL/certification references enhances supplier confidence and reduces procurement risk in long-term asset management plans.
Get a Quick Quote for a Eaton Crouse-Hinds GUAL59
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAL59?
Enquire Now
FAQs
The GUAL59 is designed for a 1-1/2 inch trade size and features a 5 inch cover opening, allowing common conduit fittings to be used without adapters. Its Feraloy iron alloy construction provides robust protection in hazardous environments, while the enclosure's L-shape and dimensions enable straightforward mounting in restricted spaces. Ensure proper sealing and grounding per IF 1730 guidelines.
Key specifications include an overall footprint of 6.81 in length/depth and 6.81 in height, 4.03 in width, and a weight of 10.55 lb. The enclosure carries NEC/CEC standards, Class I/II/III hazardous-area ratings, and NEMA ratings 3, 4, 7, 9, making it suitable for demanding industrial environments with rigorous protection requirements.
GUAL59 is ideal for oil and gas facilities, chemical processing plants, mining operations, and water treatment sites where hazardous-location compliance is mandatory. Its rugged construction and standard dimensions help engineers standardize terminations across multiple lines, reducing part diversity and facilitating easier field troubleshooting and maintenance.
The enclosure conforms to NEC/CEC requirements and provides NEC hazardous ratings Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III. It also carries NEMA ratings 3, 4, 7, 9, confirming suitability for a range of environmental conditions. These certifications simplify regulatory approval, procurement, and installation in hazardous locations.
GUAL59 reduces maintenance frequency due to its durable Feraloy construction and robust protection ratings, lowering lifecycle costs. Availability of installation instructions, catalogs, and UL-related certification references accelerates commissioning and ongoing service. The enclosure’s standardized dimensions and fittings also minimize spare-part inventory and accelerate ROI in asset-heavy facilities.
