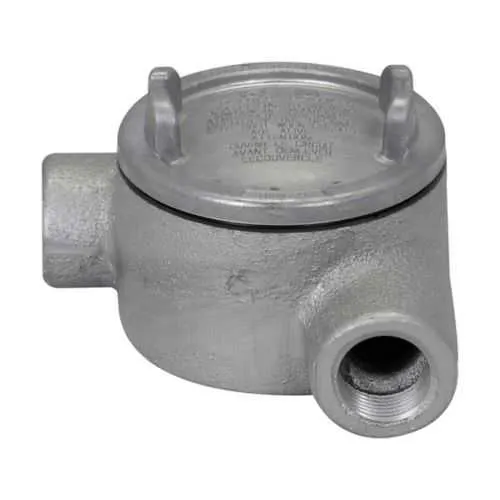

Eaton GUAN26 Condulet GUA Outlet Box - Hazardous Locations
Part Number: GUAN26
Quick Summary
The Eaton GUAN26 Condulet GUA outlet box provides rugged enclosure for conduit terminations in hazardous industrial locations. Many engineers struggle to maintain safety and compliance in hazardous areas amid corrosion, moisture ingress, and certification complexities. It carries NEC/CEC compliance and hazardous-area ratings including Class I, Division 1 and 2; Class II, Division 1 and 2; Class III with NEMA 3, 4, 7 and 9 protections. Designed for 3/4 in trade-size conduits with a 3 in cover opening, it supports fast installation and long-term reliability in industrial plants. This combination helps reduce field rework, lowers maintenance costs, and supports ongoing regulatory compliance for hazardous-location installations.
Product Information
Extended Description
GUAN26 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, N shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAN26
UPC
782274466507
Product Length/Depth
4.38 in
Product Height
4.38 in
Product Width
2 in
Product Weight
3.2 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
N
Trade size
3/4"
Cover opening diameter
3"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAN26
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature → Business Impact → Application: Feature: Feraloy iron alloy housing delivers rugged durability and corrosion resistance in hostile environments. Business Impact: reduces enclosure degradation and replacement costs while extending service life. Application: ideal for chemical plants, refineries, and mining where harsh chemicals, dust, and vibration are common. Feature: NEC/CEC compliance with hazardous ratings (Class I, Division 1 & 2; Class II, Division 1 & 2; Class III) and NEMA ratings 3, 4, 7, 9. Business Impact: simplifies regulatory approvals and enhances installation safety. Application: installations in oil & gas, power generation, and chemical processing facilities. Feature: 4.38 in length/depth, 4.38 in height, 2 in width with a 3 in cover opening. Business Impact: compact, space-efficient design enabling conduit terminations in tight spaces; Application: retrofit projects and new builds with limited enclosure room. Feature: 3/4 in trade size compatibility and straightforward mounting. Business Impact: speeds field wiring and reduces labor costs; Application: standard conduit terminations in hazardous locations per IF 1730 guidelines. Feature: Ready documentation and support ecosystem. Business Impact: accelerates procurement, reduces risk, and streamlines audits; Application: project engineering, maintenance planning, and inspections.
Get a Quick Quote for a Eaton Crouse-Hinds GUAN26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAN26?
Enquire Now
FAQs
GUAN26 is a 3/4" trade size Condulet GUA outlet box designed to drop into standard GUA configurations. It shares the same mounting pattern as other Condulet GUA boxes, accepts conventional conduit fittings, and aligns with Eaton’s IF1730 installation guidance. Use the included spec sheet and catalog pages to verify box-to-box compatibility for seamless retrofits or new installations.
The GUAN26 carries NEC/CEC compliance and hazardous-area ratings including Class I, Division 1 and 2; Class II, Division 1 and 2; Class III, along with NEMA 3, 4, 7, 9 protections. UL certification support is available in the referenced reports. These certifications support regulatory approvals, audits, and safer field installations in oil, gas, mining, and chemical environments.
Industries with hazardous-location requirements such as oil and gas, chemical processing, mining, water treatment, and food/beverage processing benefit most. The GUAN26 accommodates 3/4" conduit terminations with a 3" cover opening and a rugged Feraloy iron alloy body, delivering long-term reliability in corrosive and vibration-prone facilities.
The compact 4.38" x 4.38" x 2" form factor, combined with a 3" cover opening and 3/4" trade size, enables faster access and easier wiring in tight spaces. Its durable Feraloy alloy reduces maintenance needs, while the standardized dimensions align with Eaton’s installation sheets and catalog references, minimizing field engineering changes and potential rework.
Documentation is available through Eaton’s download pages: Condulet GUA catalog pages, IF 1730 installation sheets, GUAN26 specification sheet, UL certification reports, and the bend-radius/cubic-capacity chart. Accessing these resources accelerates procurement, compliance checks, and on-site installation, helping keep projects on schedule and within code.
