Eaton GUAT24 Condulet Outlet Box - Hazardous Locations
Part Number: GUAT24
Quick Summary
GUAT24 conduit outlet box from Eaton Crouse-Hinds provides rugged, compliant enclosure for hazardous locations. Engineers often struggle to secure enclosures that meet stringent safety rules while fitting into tight spaces and maintaining cable integrity. This Condulet box delivers a 2" cover opening and a 3/4" trade size, built from Feraloy iron alloy for superior strength and corrosion resistance. The design aligns with NEC/CEC standards and supports hazardous location ratings Class I Div 1/2, Class II Div 1/2, and Class III, along with NEMA ratings 3, 4, 7, 9. By combining robust protection with straightforward installation, it reduces rework, speeds commissioning, and helps maintain regulatory compliance in chemical plants, refineries, and mining operations.
Product Information
Extended Description

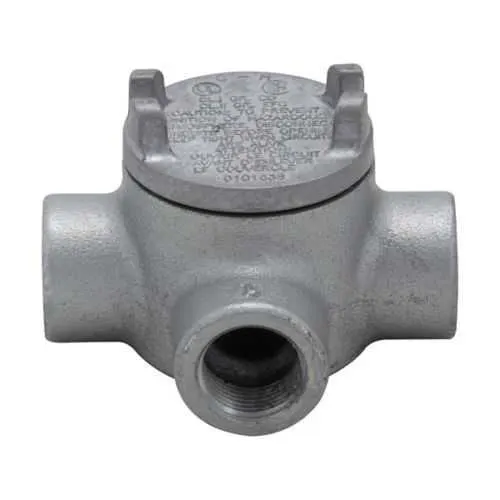

GUAT24 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 2" cover opening diameter, Feraloy iron alloy, T shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAT24
UPC
782274467405
Product Length/Depth
4.25 in
Product Height
3.38 in
Product Width
2 in
Product Weight
1.75 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
T
Trade size
3/4"
Cover opening diameter
2"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAT24
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: The Condulet GUA GUAT24 is forged from Feraloy iron alloy, delivering exceptional strength, impact resistance, and enhanced corrosion protection. Business Impact: This reduces unplanned maintenance and extends service life in tough industrial settings, lowering total cost of ownership. Application: Ideal for hazardous locations where equipment endures daily wear, chemical exposure, and moisture. Feature: A 2" cover opening diameter enables versatile cable entries and easier gland seal configurations. Business Impact: Streamlined wiring schemes cut installation time and labor costs. Application: Particularly valuable in space-constrained panels and retrofit projects in hazardous environments. Feature: 3/4" trade size compatibility aligns with standard conduit systems. Business Impact: Eliminates unnecessary adapters and simplifies procurement, accelerating project timelines. Application: Common in switchgear rooms, MCCs, and sensor housings. Feature: NEC/CEC compliance with Class I Div 1/2, Class II Div 1/2, and Class III hazardous location ratings. Business Impact: Enhances regulatory confidence and reduces risk of nonconforming installations. Application: Use in chemical processing, oil & gas, mining, and other high-risk facilities. Feature: NEMA ratings 3, 4, 7, 9 provide robust protection against dust, water, and corrosive vapors. Business Impact: Improves reliability in indoor and outdoor installations, lowering maintenance cycles. Application: Suitable for harsh environments, including outdoor switchgear and industrial enclosures. Feature: Installation resources and reference sheets (IF 1730, catalog pages, specification sheets) support quick, correct mounting. Business Impact: Minimizes field errors and warranty issues, accelerating commissioning. Application: Essential for field technicians and specifiers handling hazardous-location projects.
Get a Quick Quote for a Eaton Crouse-Hinds GUAT24
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAT24?
Enquire Now
FAQs
GUAT24 supports a 3/4" trade size conduit with a 2" cover opening and complies with IF 1730 installation guidelines. Use compatible glands and seals rated for Class I, Division 1 or 2, and Class II environments. Following Eaton's installation sheet ensures proper sealing, grounding, and enclosure integrity in hazardous locations.
GUAT24 carries NEC/CEC standards and NEC hazardous ratings for Class I Division 1 and 2, Class II Division 1 and 2, and Class III. It also meets NEMA ratings 3, 4, 7, 9, providing protection against dust, water, and explosion-risk conditions. These certifications support compliance across chemical plants, refineries, mining, and related facilities.
Yes. GUAT24 is part of the Condulet GUA family and is designed to integrate with standard GUA conduits and covers. Refer to the Crouse-Hinds catalog page for compatible accessories, and use the IF 1730 instruction sheet to ensure correct assembly, sealing, grounding, and mounting in hazardous-location applications.
GUAT24 is manufactured from Feraloy iron alloy, delivering high strength and corrosion resistance. With NEMA ratings 3, 4, 7, 9, it is suitable for indoor and outdoor use in harsh environments, including exposure to dust, moisture, and certain chemical vapors typical in chemical plants, refineries, and mining sites.
Key resources include the IF 1730 installation sheet, the Crouse-Hinds GUA catalog page, and the Eaton GUAT24 specification sheet. These documents provide mounting guidelines, wiring methods, sealing requirements, and compliance details to support safe, code-compliant installations in hazardous locations.
