Eaton GUAT59 Condulet GUA Outlet Box - Hazardous Locations
Part Number: GUAT59
Quick Summary
GUAT59 Condulet GUA conduit outlet box provides rugged enclosure for hazardous-location electrical installations. End-users often struggle with durable, code-compliant enclosures that withstand harsh atmospheres and maintain safe, accessible splices. It meets NEC/CEC compliance, and NEMA ratings 3, 4, 7, 9, plus hazardous-location approvals (Class I, II, III), for diverse hazardous settings. This combination delivers installation flexibility and long-term cost savings by reducing field rework and downtime across projects.
Product Information
Extended Description

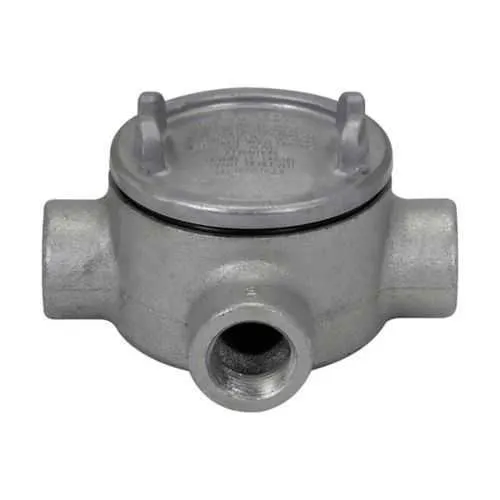

GUAT59 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 5" cover opening diameter, Feraloy iron alloy, T shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAT59
UPC
782274468006
Product Length/Depth
7.88 in
Product Height
6.81 in
Product Width
4.03 in
Product Weight
10.75 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
T
Trade size
1-1/2"
Cover opening diameter
5"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAT59
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feraloy iron alloy enclosure construction provides exceptional strength and corrosion resistance for Condulet GUA outlet boxes used in harsh industrial environments. This durability translates into fewer field replacements and longer service life, improving plant uptime and safety. In chemical processing, oil and gas, and mining facilities, the rugged metal withstands temperature swings, impact, and exposure to corrosive atmospheres while protecting splices and terminations. The T-shaped Condulet GUA geometry supports flexible mounting and efficient conduit routing. This design enables quick alignment and reduces installation complexity, especially in control panels and feeder enclosures where space is tight. A 5 inch cover opening facilitates rapid wiring and maintenance, speeding field termination and reducing downtime during commissioning and servicing. Feature 1-1/2 inch trade size compatibility aligns with common conduit fittings, lowering part counts and inventory costs across standard industrial wiring schemes. NEC/CEC compliance and NEMA ratings 3, 4, 7, 9, plus Class I, II, III hazardous-location approvals meet global and local regulations, enabling safer installs and smoother inspections in petrochemical, mining, and power-generation environments. Installation resources, including IF 1730 instructions and Eaton specification sheets, streamline field setup and reduce commissioning risk for technicians on site.
Get a Quick Quote for a Eaton Crouse-Hinds GUAT59
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAT59?
Enquire Now
FAQs
When installing GUAT59 in hazardous locations, ensure compatibility with 1-1/2 inch trade fittings and maintain the enclosure’s integrity by using proper gaskets and hardware designed for Class I, II, III environments. Follow IF 1730 instructions for correct mounting orientation, enclosure sealing, and conduit routing to preserve NEMA ratings and prevent ingress. Plan for routine inspection during plant maintenance to verify seals and labeling across shifts.
GUAT59 aligns with NEC/CEC standards for Hazardous/Classified Locations and carries NEMA ratings 3, 4, 7, and 9, enabling safe operation in extreme conditions. The enclosure uses Feraloy iron alloy for robust protection against corrosion and impact. This combination reduces regulatory risk, simplifies audits, and ensures compliance during inspections in petrochemical, mining, and power-generation facilities.
Yes. GUAT59 is designed for a 1-1/2 inch trade size and a 5 inch cover opening, enabling standard conduit fittings and straightforward wiring. The T-shaped Condulet GUA design supports flexible mounting in tight spaces and diverse panel configurations. Installation can be optimized by referencing the IF 1730 instruction sheet and the Eaton specification resources for mounting diagrams and recommended fasteners.
Industries such as chemical processing, oil and gas, mining, and power generation benefit most from the GUAT59 due to its HazLoc ratings and rugged build. Typical applications include control panels, junction boxes, and outdoor substations where splices require protection, frequent access for maintenance, and compliance with NEC/CEC and NEMA standards.
The GUAT59 reduces maintenance burden by providing a durable enclosure that resists corrosion and impact, lowering frequency of field replacements. Its regulatory compliance minimizes inspection risk and potential shutdowns. Although initial costs are higher than non-HazLoc enclosures, lifecycle cost analysis typically shows lower total cost of ownership due to longer service life and reduced downtime in demanding environments.
