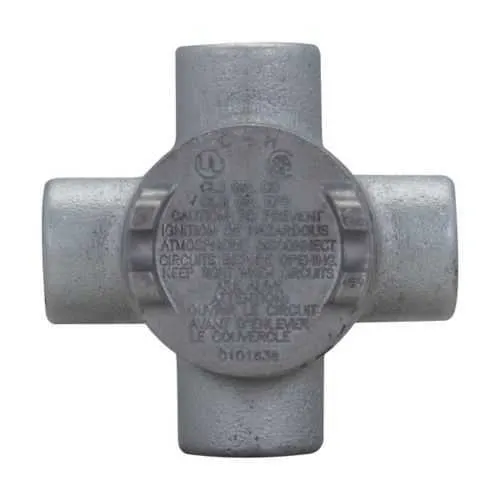

Eaton GUAX16 Condulet GUA Outlet Box - Hazardous Locations
Part Number: GUAX16
Quick Summary
GUAX16 Condulet GUA outlet box protects electrical connections in hazardous locations across industrial facilities. This enclosure helps engineers avoid enclosure leaks, failed terminations, and noncompliant installations in tight spaces. It is NEC/CEC compliant and rated for Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III environments, with a NEMA 3, 4, 7, and 9 rating. The sturdy Feraloy iron alloy construction and a 1/2" trade size support durable service in demanding environments. By combining rugged protection with standard conduit compatibility, it reduces downtime, simplifies maintenance, and speeds field installations while meeting critical safety and compliance requirements.
Product Information
Extended Description
GUAX16 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, X shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAX16
UPC
782274468709
Product Length/Depth
5.25 in
Product Height
5.25 in
Product Width
2 in
Product Weight
2.55 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
X
Trade size
1/2"
Cover opening diameter
3"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAX16
Industrial Fittings Bend Radius and Cubic Capacity Chart
Rugged construction using Feraloy iron alloy delivers superior impact resistance and long-term durability in harsh environments. This material choice reduces corrosion and wear in chemical plants, oil and gas, and heavy machinery settings, translating into fewer unit replacements and lower lifecycle costs. In practice, technicians install GUAX16 as a drop-in enclosure for 1/2" conduit connections with 3" cover openings, fitting compact control panels without sacrificing protection. The enclosure is NEC/CEC compliant and rated for hazardous/classified locations with NEMA ratings 3, 4, 7, 9, providing safety and code assurance across audits. Its compatibility with Condulet accessories enables straightforward integration with standard conduits and fittings, accelerating installation and reducing commissioning time. The 5.25 in length and 5.25 in height create a compact footprint for space-constrained panels, while the 2 in width supports versatile mounting options. Installation instructions IF 1730 and the included Eaton specification sheet streamline field work, minimizing questions and downtime. This design also addresses common objections about rugged enclosures by combining proven protection with lightweight handling (2.55 lb) and readily available replacement components, ensuring predictable maintenance costs and steady operational availability.
Get a Quick Quote for a Eaton Crouse-Hinds GUAX16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAX16?
Enquire Now
FAQs
GUAX16 is designed for a 1/2" trade size and Condulet GUA configurations, enabling use with standard conduit fittings and typical panel-mount layouts. Its dimensions (5.25 in length and height, 2 in width) support compact installations, while the 3" cover opening accommodates common termination assemblies. For field routing in tight spaces, refer to the IF 1730 installation sheet and the Eaton specification sheet for recommended mounting patterns and accessory compatibility.
GUAX16 is intended for Hazardous/Classified Locations with NEC/CEC compliance and a NEMA rating of 3, 4, 7, and 9. It supports Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III environments, providing robust protection for electrical terminations in exposed industrial settings. These certifications help ensure safety, regulatory compliance, and audit readiness.
This Condulet GUA outlet box is well-suited for chemical plants, refineries, mining operations, and other facilities with hazardous locations. Its Feraloy iron alloy body, 1/2" conduit capability, and 3" cover opening enable reliable protection for field wiring terminations while meeting NEC/CEC requirements. The compact footprint also makes it ideal for space-constrained control panels and equipment housings.
In addition to NEC/CEC compliance and NEMA ratings, GUAX16 documentation includes UL certification for Condulet GUA and GUR explosion-proof configurations, catalog pages, installation instructions (IF 1730), and the Eaton specification sheet. These resources facilitate regulatory reviews, procurement traceability (UPC 782274468709), and installation accuracy, reducing nonconformances and rework.
Available resources include the Crouse-Hinds GUA catalog page, UL certification reports, IF 1730 installation sheets, and the Eaton GUAX16 specification sheet. These materials provide mounting guidance, wiring termination practices, bend radius, cubic capacity guidance, and component compatibility to accelerate field deployment and simplify ongoing maintenance.
