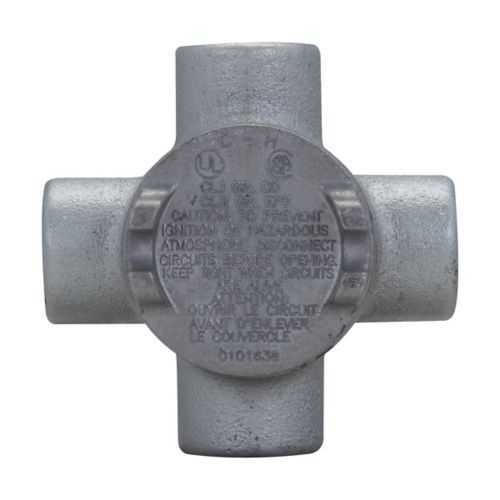

Eaton GUAX24 Condulet GUA Conduit Outlet Box - Class I Div 1
Part Number: GUAX24
Quick Summary
The Condulet GUA conduit outlet box GUAX24 is designed for rugged hazardous-location enclosures in industrial plants. For engineers and maintenance teams, ensuring safe, code-compliant connections without frequent box replacements can be a challenge, especially in moist or dusty environments. The unit carries NEC/CEC standards and NEMA ratings 3, 4, 7, 9, with Class I, Division 1 and Division 2 hazard classifications, offering robust protection against dust, moisture, and explosions. In practice, this translates to reduced maintenance downtime, easier inventory planning, and improved system reliability. By combining durable feraloy construction with a compact footprint, it supports quick installation and long service life in harsh environments while enabling scalable enclosure sizing and compliant wiring practices.
Product Information
Extended Description
GUAX24 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 2" cover opening diameter, Feraloy iron alloy, X shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAX24
UPC
782274468808
Product Length/Depth
4.25 in
Product Height
4.25 in
Product Width
2 in
Product Weight
2.29 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
X
Trade size
3/4"
Cover opening diameter
2"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAX24
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction provides high strength and corrosion resistance. Business Impact: Delivers long service life in demanding environments, reducing replacement costs and downtime. Application: Ideal for chemical processing, oil and gas, and mining facilities where exposure to corrosive atmospheres is common. Feature: 2" cover opening diameter supports standard conduits and fittings, accelerating installation. Business Impact: Shorter lead times and fewer field adaptations. Application: Control panels and junctions in hazardous locations needing readily accessible terminations. Feature: X-shaped, 3/4" trade size design enhances mounting versatility. Business Impact: Simplifies retrofit projects and ensures a secure fit with common enclosure hardware. Application: Retrofitting legacy systems in compact spaces. Feature: Dimensions 4.25" L Ă— 4.25" H Ă— 2" W and weight 2.29 lb provide a compact yet robust enclosure footprint. Business Impact: Easier handling in confined plant spaces, safer transport, and predictable field logistics. Application: Panel enclosures in tight electrical rooms and field installations. Feature: NEC/CEC compliance with NEMA ratings 3, 4, 7, 9 and Hazardous/Classified Location ratings. Business Impact: Full regulatory coverage and hazard protection reduce compliance risk and inspection cycles. Application: Environments requiring certified protection against dust, water, corrosion, and explosive atmospheres. Feature: UL certification for explosion-proof and hazardous location use (Condulet GUA/GUR). Business Impact: Validates safety and performance to procurement and QA teams, smoothing audit trails. Application: Industries pursuing UL-listed hazardous-location enclosures. Feature: Support resources including IF 1730 installation sheets and Eaton catalog pages. Business Impact: Improves install quality and knowledge transfer to field technicians. Application: On-site installations and training sessions for maintenance teams.
Get a Quick Quote for a Eaton Crouse-Hinds GUAX24
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAX24?
Enquire Now
FAQs
The GUAX24 supports a 2 inch cover opening and a 3/4 inch trade size, enabling compatibility with common conduit fittings used in hazardous-area enclosures. This simplifies field wiring, reduces the need for adapters, and speeds up panel mounting while maintaining NEC/CEC compliance. Always verify the specific conduit schedule and sealant requirements for your installation to ensure optimal performance.
GUAX24 is designed for Class I, Division 1 and Division 2 environments and carries NEC/CEC standards compliance with NEMA ratings of 3, 4, 7, and 9. It is UL-certified for explosion-proof use in hazardous locations, providing assurance for safe operation in oil, gas, and chemical processing facilities. The combination of material, shape, and certification helps meet stringent regulatory and safety requirements.
Key dimensions are 4.25 inches in length and height with a 2 inch width, and it weighs 2.29 pounds. This compact footprint fits tight enclosures and facilitates one-person installation in crowded panels. The weight remains manageable for field technicians, reducing handling risk while maintaining structural integrity for reliable conduit connections.
GUAX24 meets NEC/CEC standards, has NEMA ratings of 3, 4, 7, 9, and carries hazardous-location classifications including Class I, Division 1 and Division 2. These certifications indicate suitability for dust, water, corrosion, and explosion-protected enclosures. For procurement and compliance teams, this means reduced audit findings and smoother project approvals.
Installation guidance is available via Eaton resources, including IF 1730 installation sheets and the GUAX24 specification sheet. Catalog pages provide dimensional data and mounting guidance, while UL certification references can be accessed through UL’s listing pages. These documents help ensure correct assembly, wiring, and code-compliant installation in hazardous locations.
