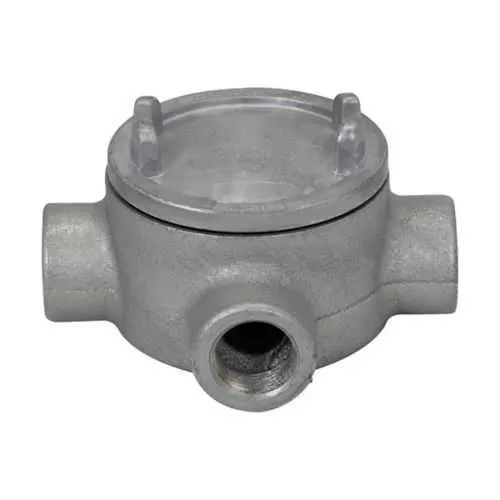

Eaton GUAX36 Conduit Outlet Box - Hazardous Locations
Part Number: GUAX36
Quick Summary
The Eaton GUAX36 Conduit Outlet Box is a rugged enclosure designed for Condulet installations in hazardous environments. Engineers and maintenance teams grapple with enclosure integrity, corrosion resistance, and compliance in Class I/II/III locations, especially during service intervals. This unit meets NEC/CEC standards and carries NEMA ratings 3, 4, 7, and 9, supporting hazardous area classifications from Class I Division 1 and 2 to Class II/III. With a 1-inch trade size, 3-inch cover opening, and a Feraloy iron alloy body, it integrates with standard fittings and installation practices while delivering reliable protection. The design also aligns with Eaton’s installation guidelines (IF 1730) to help reduce downtime and total cost of ownership.
Product Information
Extended Description
GUAX36 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, X shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAX36
UPC
782274469003
Product Length/Depth
5.5 in
Product Height
5.5 in
Product Width
2.31 in
Product Weight
4.14 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
X
Trade size
1"
Cover opening diameter
3"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAX36
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy body provides exceptional strength and corrosion resistance. Benefit: Extends service life in aggressive environments, reducing replacement costs and downtime in chemical plants, refineries, and mining operations. Application: Hazardous location enclosures requiring durable metals that resist harsh chemicals and moisture. Feature: 1" trade size with 3" cover opening diameter. Benefit: Streamlines wiring and cable access using standard fittings, accelerating installation and facilitating easier maintenance in space-constrained panels. Application: Control cabinets and junctions in confined spaces across oil, gas, and manufacturing sites. Feature: X-shaped Konduit GUA design and 2.31" width, 5.5" height, 5.5" length. Benefit: Enhanced structural rigidity and weathering performance while preserving enclosure footprint. Application: Outdoor or indoor hazardous-location installations with frequent access needs. Feature: NEC/CEC compliance and NEMA ratings 3, 4, 7, 9. Benefit: Regulatory alignment minimizes audit risk and avoids additional enclosures, lowering total cost of ownership. Application: Projects requiring formal certification for hazardous locations and rugged service. Feature: Availability of installation literature (IF 1730) and specification sheets. Benefit: Reduces install risk, standardizes approach, and speeds up procurement and commissioning. Application: System integrators and distributors triaging documentation for field teams.
Get a Quick Quote for a Eaton Crouse-Hinds GUAX36
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAX36?
Enquire Now
FAQs
GUAX36 is designed for Condulet installations in hazardous locations and integrates with standard conduit fittings. Follow IF 1730 installation guidance and Eaton’s catalogs to ensure proper mounting, gasket seating, and cover retention. The unit supports Class I/II/III classifications and is compatible with common field wiring practices used in chemical plants and oil & gas facilities.
Key specifications include a 5.5 in length, 5.5 in height, 2.31 in width, 1 in trade size, and a 3 in cover opening diameter. It is made from Feraloy iron alloy and is rated for hazardous locations under NEC/CEC with NEMA ratings 3, 4, 7, and 9, making it suitable for demanding industrial environments.
Yes. The GUAX36 supports hazardous location applications and carries NEMA ratings 3, 4, 7, and 9, enabling use in outdoor or harsh indoor environments. It is designed to withstand moisture, dust, and corrosive atmospheres typical of outdoor industrial spaces while maintaining enclosure integrity.
GUAX36 belongs to the Eaton Condulet GUA family which supports NEC/CEC standards and hazardous location classifications. It aligns with Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III requirements, with corresponding NEMA ratings 3, 4, 7, 9 for robust compliance in hazardous environments.
Useful documents include the IF 1730 installation sheet for GUA/EAB/EAJ Condulet Outlet Boxes, the Crouse-Hinds Conduit Outlet Boxes catalog page, and the Eaton specification sheet for GUAX36. These resources, along with standard catalog pages, support accurate field assembly, wiring practices, and compliant installation.
