Eaton GUAX47 Conduit Outlet Box - Hazardous Locations
Part Number: GUAX47
Quick Summary
The Eaton GUAX47 conduit outlet box protects wiring in hazardous locations by housing connections and providing a weather-tight cover. For engineers and maintenance teams, downtime and regulatory risk are costly, so a rugged, compliant enclosure helps prevent unplanned outages. This box carries NEC/CEC compliance and hazardous-location ratings, including Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III, with corresponding NEMA 3, 4, 7, 9 protection. Built to accommodate a 1-1/4 in trade size and a 3-5/8 in cover opening, it easily integrates with standard conduits and supports streamlined procurement and installation across industrial sites.
Product Information
Extended Description

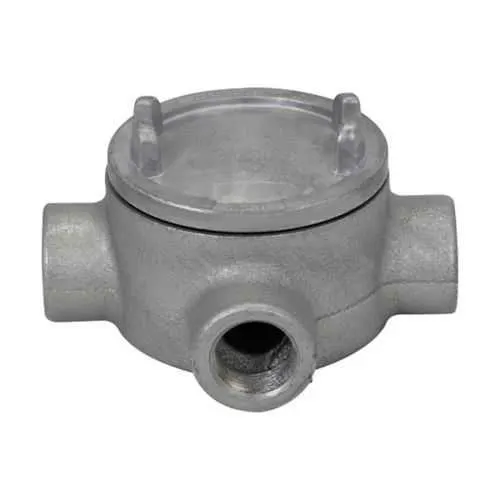

GUAX47 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3-5/8" cover opening diameter, Feraloy iron alloy, X shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover
Catalog Number
GUAX47
UPC
782274469201
Product Length/Depth
6.25 in
Product Height
6.25 in
Product Width
2.69 in
Product Weight
5.25 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
X
Trade size
1-1/4"
Cover opening diameter
3-5/8"
Material
Feraloy iron alloy
Crouse-Hinds series GUA Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - GUAX47
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy enclosure with an X-shaped Condulet design provides rugged mechanical protection in harsh environments. Business Impact: reduces corrosion and impact risk, extending service life and lowering maintenance costs. Application: chemical processing plants, oil refineries, mining sites. Feature: 1-1/4 inch trade size and 3-5/8 inch cover opening simplify wiring access and cable management. Business Impact: speeds installations, minimizes wiring errors, and improves compatibility with standard conduit fittings. Application: plant shutdowns, new installations, and retrofit projects in hazardous areas. Feature: NEC/CEC compliance with Hazardous/Classified Locations ratings and NEMA 3, 4, 7, 9 protection. Business Impact: regulatory alignment and safer operations, reducing inspection findings and liability. Application: industrial facilities subject to strict code requirements. Feature: Installation resources including IF 1730 instruction sheets and the Eaton specification page. Business Impact: accelerates correct installation and reduces field rework. Application: enterprise-wide rollouts and technician training. Feature: Dimensions and weight (6.25 in L, 6.25 in H, 2.69 in W; 5.25 lb) offer a robust yet manageable enclosure. Business Impact: easier handling during install and service with secure mounting. Application: compact spaces and retrofit scenarios in hazardous zones.
Get a Quick Quote for a Eaton Crouse-Hinds GUAX47
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUAX47?
Enquire Now
FAQs
Yes. The GUAX47 is designed for a 1-1/4 inch trade size and features a 3-5/8 inch cover opening, making it compatible with standard conduit fittings used in hazardous environments. Installation sheets (IF 1730) and the Eaton GUAX47 specification page provide step-by-step guidance to ensure correct mounting and wiring.
The GUAX47 carries NEC/CEC compliance for hazardous locations (Class I, Division 1 and 2; Class II, Division 1 and 2; Class III) and a NEMA rating of 3, 4, 7, and 9. It is intended for Hazardous/Classified Locations, aligning with typical industrial safety and regulatory requirements.
Technical data and installation resources are available through Eaton’s catalogs and datasheets, including the Crouse-Hinds GUA Conduit Outlet Boxes catalog page, IF 1730 instruction sheets, and the Eaton specification sheet for GUAX47. These documents support proper installation, sizing, and compliance checks.
GUAX47 is ideal for hazardous-location applications in chemical plants, oil and gas facilities, mining operations, and other environments requiring robust enclosures for conduit wiring. Its Class I/II/III and NEMA 3–9 ratings support both electrical safety and long-term reliability in harsh industrial settings.
The rugged Feraloy iron alloy enclosure, combined with proven NEC/CEC compliance and easy installation, reduces maintenance frequency and downtime. Standardized components and clear installation guidance help shorten project timelines, lower field rework, and improve lifecycle ROI in hazardous-area installations.
