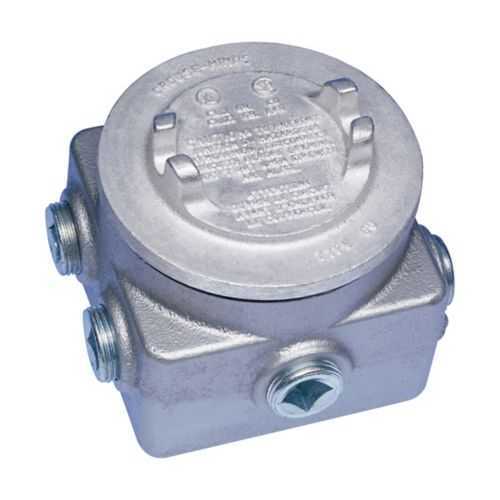

Eaton Crouse-Hinds GUP214 Junction Box - Hazardous Locations
Part Number: GUP214
Quick Summary
The GUP214 junction box from Eaton Crouse-Hinds protects electrical connections in hazardous locations by providing a rugged, explosion‑proof enclosure for industrial installations. Engineers often struggle to find enclosures that meet strict regulatory requirements while fitting tight spaces and complex conduit layouts. This GUP214 is NEC/CEC compliant with Class I, II, and III hazardous area ratings and UL certified for explosion‑proof service, giving teams confidence in both safety and compliance. Its compact 4.13 in by 4.13 in by 2.75 in footprint, combined with a 4.95 lb weight, supports reliable installation in confined equipment rooms or outdoor plants. Choosing this enclosure translates to faster installation, longer service life, and lower maintenance costs in chemical plants, oil and gas facilities, and mining operations.
Product Information
Extended Description
GUP214 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GUP junction box, (4) 3/4" back hub, (2) 3/4" bottom hub, Feraloy iron alloy, (1) 3/4" side hub, (2) 3/4" top hub
Product Name
Eaton Crouse-Hinds series GUP junction box
Catalog Number
GUP214
UPC
782274477305
Product Length/Depth
4.13 in
Product Height
4.13 in
Product Width
2.75 in
Product Weight
4.95 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Top hub size
(2) 3/4"
Bottom hub size
(2) 3/4"
Side hub size
(1) 3/4"
Back hub size
(4) 3/4"
Material
Feraloy iron alloy
Crouse-Hinds series GUP Compact Explosionproof Junction Boxes catalog page
GUP Compact Explosionproof Junction Boxes UL certification
IF 1497 - GUP Series Junction Box
Eaton Specification Sheet - GUP214
Material strength and durable protection drive long-term reliability in tough environments. The GUP214 uses a Feraloy iron alloy body, delivering superior resistance to corrosion and impact, which translates to reduced replacement cycles and lower lifecycle costs for ongoing hazardous-location projects. This translates to a measurable business impact: less downtime due to enclosure failures and more consistent operation in refinery, chemical processing, and mining facilities where exposure to harsh chemicals and physical wear is common. The enclosure’s configuration matters: with four back hubs plus additional top, bottom, and side hubs, wiring layouts become flexible and installation faster, minimizing field modifications and commissioning time for multi-conduit installations. In practice, that means engineers can route cables cleanly in tight spaces without compromising sealing integrity or safety, enabling compliant installations in compact control rooms and outdoor installations.
Get a Quick Quote for a Eaton Crouse-Hinds GUP214
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUP214?
Enquire Now
FAQs
GUP214 is designed for NEC/CEC compliant hazardous locations with Class I, II, and III ratings and UL certification for explosion‑proof service. Its hub configuration (4 back hubs plus top, bottom, and side hubs) supports flexible conduit layouts, reducing field modifications while maintaining enclosure integrity and gasketing performance in demanding environments.
The enclosure provides four 3/4 inch back hubs, two 3/4 inch top hubs, two bottom hubs, and one 3/4 inch side hub. This enables back-to-back and multi-conduit installations, simplifies cable management, and minimizes the need for additional fittings. The result is quicker installations and cleaner wiring in limited spaces without sacrificing protection.
Yes, the GUP214 is UL certified for explosion-proof service and NEC/CEC compliant. It carries hazardous area ratings including Class I, Division 1 and 2, Class II Division 1 and 2, and Class III, with area classification for Hazardous/Classified Locations. These certifications support regulatory compliance and safer operation in demanding industrial settings.
Resources include the IF 1497 installation sheet, the Crouse-Hinds GUP catalog page, and the Eaton specification sheet for GUP214. These materials provide wiring guidance, mounting recommendations, and verified installation practices to speed up field work and ensure correct enclosure use in hazardous locations.
The GUP214 combines certified safety, robust material performance, and flexible hub options, which lowers risk of noncompliance and field rework. Its compact footprint supports space-constrained installations, while the durable Feraloy iron alloy body extends service life, reducing maintenance costs and downtime in challenging environments such as chemical plants, oil & gas facilities, and mining operations.
