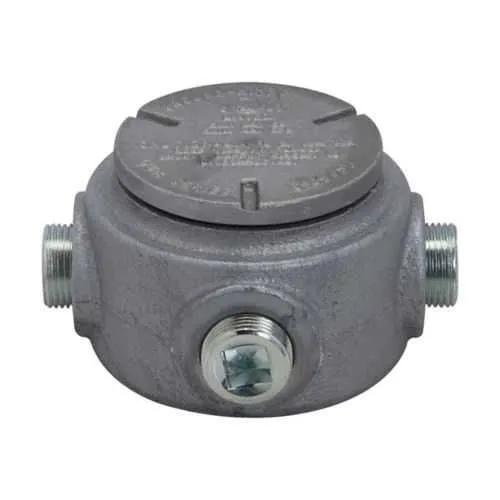

Eaton GUR1 Condulet GUR Conduit Outlet Box - NEMA 4
Part Number: GUR1
Quick Summary
GUR conduit outlet box by Eaton Crouse-Hinds provides rugged enclosure housing for secure conduit terminations in hazardous environments. Installers struggle with corrosion, ignition risks, and code-compliance pressure; GUR1 helps simplify hazardous-location installs with robust protection and clear documentation. It offers NEC/CEC compliance with Class I, Division 1, Zone 1, Class I, Division 2, Zone 2 and a NEMA 4 rating, ensuring reliable protection across varied industrial atmospheres. From install efficiency to ongoing maintenance, this enclosure reduces rework and downtime, while still fitting 1/2" trade-size fittings and standard conduits. This combination supports safer field wiring, faster panel builds, and long-term cost containment for plant-wide electrical infrastructure projects.
Product Information
Extended Description
GUR1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet GUR conduit outlet box with cover, Feraloy iron alloy, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet GUR conduit outlet box with cover
Catalog Number
GUR1
UPC
782274099187
Product Length/Depth
4.13 in
Product Height
4.13 in
Product Width
2.68 in
Product Weight
3.4 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series GUR Conduit Outlet Boxes catalog page
Condulet GUA and GUR Explosionproof Conduit Outlet Boxes UL certification
Eaton Specification Sheet - GUR1
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction provides exceptional durability and corrosion resistance in harsh environments. Business Impact: Reduces the risk of enclosure damage and costly downtime, leading to improved uptime. Application: Suitable for harsh chemical plants and outdoor installations where ignition sources may be present. Long-tail keywords: hazardous locations enclosure, explosion-proof conduit box, durable metal enclosure. Feature: 1/2 inch trade size compatibility standardizes terminations and simplifies design planning. Business Impact: speeds up wiring and reduces misfits during installation. Application: Ideal for compact control panels and instrument drawings where space is tight. Long-tail keywords: 1/2 in trade size, conduit outlet box compatibility, standard conduit fittings. Feature: NEMA 4 rating delivers protection against dust and water ingress. Business Impact: Enables outdoor and washdown environments without enclosure compromise. Application: Outdoor substations, process plants, and shipyards. Long-tail keywords: NEMA 4 enclosure, washdown-rated box, outdoor electrical enclosure. Feature: Area classification support with NEC/CEC compliance for Class I/II/III locations. Business Impact: Ensures regulatory alignment, reduces certification delays, and lowers risk of non-compliance fines. Application: Chemical processing and oil/gas facilities requiring hazardous-location certification. Long-tail keywords: hazardous location certification, NEC/CEC compliance, Zone 1 enclosures. Feature: Compact dimensions (4.13 in L x 4.13 in H x 2.68 in W) with a 3.4 lb weight. Business Impact: Easier installation in tight spaces, lighter handling in the field, and minimized crane or lift requirements. Application: Control panels with limited mounting space. Long-tail keywords: compact conduit box, lightweight enclosure, control panel housing. Feature: Material: Feraloy iron alloy for strength and thermal performance. Business Impact: Maintains structural integrity under mechanical stress and temperature variations, reducing replacement cycles. Application: Industrial facilities with vibration and elevated temperatures. Long-tail keywords: Feraloy metal enclosure, rugged steel alloy, high-temperature enclosure.
Get a Quick Quote for a Eaton Crouse-Hinds GUR1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GUR1?
Enquire Now
FAQs
For GUR1 installations in hazardous locations, begin with verifying Class I/Division and Zone ratings to match the specific area classification. Ensure the conduit fittings are rated for explosion-proof environments and that the enclosure is mounted per NEC/CEC guidelines. Use appropriate seals and gaskets, tighten connectors to specifications, and confirm the cover is securely fastened to maintain NEMA 4 integrity during washdown and vibration.
Key specs include a 1/2 inch trade size, Feraloy iron alloy construction, dimensions of 4.13 in length and height with 2.68 in width, and a weight of 3.4 lb. It carries a NEMA 4 rating and is designed for Hazardous/Classified Locations under NEC/CEC. The UPC is 782274099187, and catalog number is GUR1.
Yes. The GUR1 is designed for hazardous locations and supports NEC hazardous ratings including Class I Division 1 and Zone 1, along with additional classifications. This makes it appropriate for applications in chemical processing, oil and gas, and other environments where ignition hazards must be mitigated while maintaining robust electrical protection.
GUR1 carries NEC/CEC standards alignment, NEMA 4 rating, and hazardous-location certifications (Class I Division 1/2, Zone 1/2, Class II, Class III). These certifications ensure the enclosure can safely protect wiring in rigorous environments, comply with regional electrical codes, and reduce the risk of equipment downtime due to non-compliance.
GUR1's rugged Feraloy iron alloy construction and sealed NEMA 4 enclosure minimize ingress and corrosion, reducing maintenance cycles. Its compact 1/2 in trade size supports quicker wiring, lowering labor time. Overall, the enclosure helps reduce downtime, extend service intervals, and improve ROI in facilities with frequent washdowns or harsh chemical exposure.
