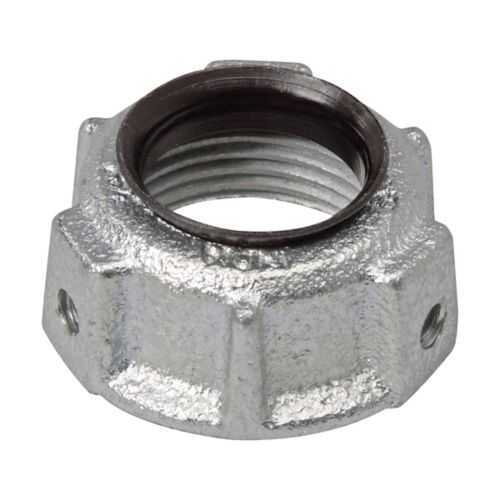

Eaton Crouse-Hinds H1032 throat bushing - NEC/CEC
Part Number: H1032
Quick Summary
Eaton Crouse-Hinds throat bushing H1032 provides insulated, threaded termination for rigid/IMC conduits in electrical enclosures. Engineers often struggle with slow install times and inconsistent insulation when retrofitting panels in tight spaces. This part is rated for 150°C and supports NEC/CEC compliance with Canadian certification documentation, improving reliability across diverse facilities. By combining malleable iron construction with an insulated design, it minimizes heat transfer and protects conductors while simplifying field installations, delivering measurable efficiency gains and safer, code-compliant wiring across industrial environments. Its compatibility with rigid/IMC conduits, insulated feature, and 3/4" trade size also helps procurement streamline purchasing and reduce maintenance costs.
Product Information
Extended Description
H1032 Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Insulated, Malleable iron, 150°C, Threaded, 3/4"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
H1032
UPC
784564112910
Product Length/Depth
2 in
Product Height
0.6 in
Product Width
1.3 in
Product Weight
0.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Insulator
Insulated
Thread
Threaded
Trade size
3/4"
Material
Malleable iron
Temperature rating
150°C
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC Canadian certification
Insulating and Throat Bushings - Rigid-IMC Canadian certification
Rigid/IMC compatibility enables secure, code-compliant terminations without needing adapters, reducing install time and potential leak paths in control panels. Insulated threading minimizes heat transfer and protects conductors in high-temperature environments, improving long-term reliability and reducing insulation failure risk. The malleable iron body delivers durable, vibration-resistant support in harsh manufacturing settings, extending service life. Threaded connections simplify field assembly and maintenance, fostering faster commissioning and easier replacements with standard tools. Certifications and standards support NEC/CEC compliance and UL Canadian certification, helping you meet regulatory requirements across North American facilities. With a compact 2 in length, 1.3 in width, and 0.6 in height, plus a light 0.1 lb weight, the H1032 fits tight enclosures and lightweight BOMs while maintaining structural integrity. This combination translates to lower maintenance costs and longer intervals between replacements.
Get a Quick Quote for a Eaton Crouse-Hinds H1032
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds H1032?
Enquire Now
FAQs
To install H1032, verify the conduit size is 3/4" and align the threaded male and female connections. Thread the bushing into the enclosure or knockout with standard conduit fittings until snug, ensuring a secure seal. Use appropriate hand-tightening techniques and verify there are no gaps or binding that could affect insulation or protection. No special sealant is required for normal environments.
H1032 is rated for 150°C insulation and designed for rigid/IMC conduit with a threaded 3/4" trade size. It conforms to NEC/CEC standards and includes UL Canadian certification documentation, supporting compliance for ordinary/non-hazardous locations. These certifications help ensure regulatory alignment across North American installations and reduce risk during audits.
Yes. H1032 carries UL Canadian certification and NEC/CEC compliance, making it suitable for Canadian electrical installations and industrial facilities in ordinary locations. Its insulated construction and malleable iron body provide durable performance in manufacturing environments where heat, vibration, and assembly variability are considerations.
The insulated, threaded design reduces heat transfer, protecting conductors and decreasing insulation wear over time, which lowers maintenance frequency. Its durable malleable iron body withstands vibration in industrial settings, reducing replacement costs. The compact size and light weight simplify BOM management and field replacements, accelerating maintenance workflows and shortening downtime.
H1032 is cataloged with UPC 784564112910 and a 3/4" trade size, 2 in length, 1.3 in width, and 0.6 in height, supporting precise BOM entries. Its fixed specifications and NEC/CEC compliance streamline sourcing, reducing part substitutions and ensuring consistent procurement across facilities that rely on rigid/IMC conduit fittings.
