Eaton H1033 throat-bushing - Rigid-IMC
Part Number: H1033
Quick Summary
The Eaton H1033 throat-bushing protects wiring at rigid-IMC conduit entries in industrial panels. Installers often struggle with insulation wear and fittings that corrode in harsh environments, leading to downtime. This part carries NEC/CEC compliance and UL listing for Rigid-IMC use, plus ordinary/non-hazardous area classification. With a 1" trade size, insulated design, and a 150°C rating, it delivers reliable performance while simplifying procurement and installation costs for industrial automation projects.
Product Information
Extended Description

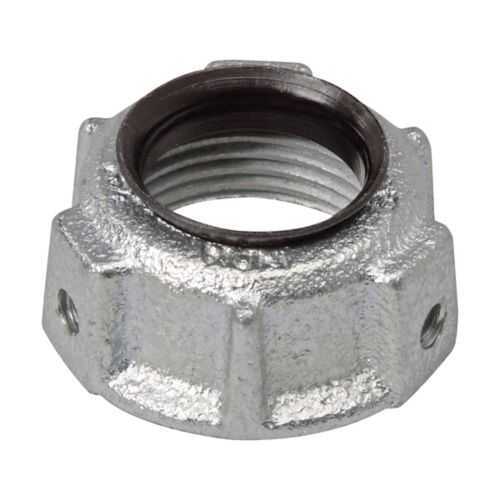

H1033 Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Insulated, Malleable iron, 150°C, Threaded, 1"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
H1033
UPC
784564112927
Product Length/Depth
2.1 in
Product Height
0.8 in
Product Width
1.3 in
Product Weight
0.02 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Insulator
Insulated
Thread
Threaded
Trade size
1"
Material
Malleable iron
Temperature rating
150°C
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC UL certification
Insulating and Throat Bushings - Rigid-IMC UL certification
Feature: Insulated, threaded throat bushing for rigid/IMC conduit. Benefit: Protects conductor insulation from abrasion and moisture ingress, reducing impedance and failure risk; Application: Control cabinets and equipment enclosures where moisture and dust are concerns. Feature: Malleable iron construction. Benefit: Provides robust mechanical protection against impact and vibration, extending service life in busy plant environments; Application: Industrial automation fittings and conduit terminations. Feature: Temperature rating 150°C. Benefit: Maintains insulation integrity in high-temperature environments, supporting reliability in motor drives and heat-generating equipment; Application: Enclosures with limited cooling or high ambient temps. Feature: 1" trade size, Threaded, Rigid/IMC compatibility. Benefit: Easy integration with standard conduit systems and fast, secure assemblies; Application: Common industrial conduit installations where speed matters. Feature: UL certification and NEC/CEC compliance. Benefit: Eases safety audits, simplifies regulatory approvals, and supports cross-border projects; Application: Canadian and US facilities spanning ordinary/non-hazardous locations. Feature: Compact dimensions (2.1 in L, 0.8 in H, 1.3 in W) and light weight (0.02 lb). Benefit: Reduces installation effort and inventory weight, improving on-site handling; Application: Field retrofits and multi-location deployments.
Get a Quick Quote for a Eaton Crouse-Hinds H1033
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds H1033?
Enquire Now
FAQs
H1033 installs like a standard 1" throat bushing for rigid/IMC conduit. Align the threaded exterior with the conduit entry, tighten with an appropriate wrench to the manufacturer’s torque spec, and verify insulation integrity before re-energizing. Its insulated design helps prevent arcing and moisture ingress at entry points, improving long-term reliability.
H1033 is made from malleable iron and rated for 150°C. The combination of sturdy material and high temperature rating maintains mechanical protection and insulation integrity in high-heat environments, such as near motor drives or enclosed electrical panels, reducing risk of insulation degradation and extending service life in demanding automation settings.
Yes. H1033 supports NEC/CEC standards and is certified for use in ordinary/non-hazardous locations. UL-listed for Rigid-IMC conduit ensures cross-border compliance, making it suitable for Canadian and US facilities where durable, code-compliant conduit fittings are required.
H1033 carries UL certification for Rigid-IMC conduits and NEC/CEC compliance. This certification streamlines safety audits by confirming a vetted, code-aligned component, reducing the need for additional testing and documentation during regulatory reviews and project handoffs.
Using H1033 yields measurable ROI through reduced maintenance, lower replacement costs, and faster installations. The insulated, threaded design minimizes rework from insulation damage, while UL/NEC/CEC compliance reduces audit risk. Its compact size and standard 1" trade size simplify stocking and field deployment across multiple sites.
