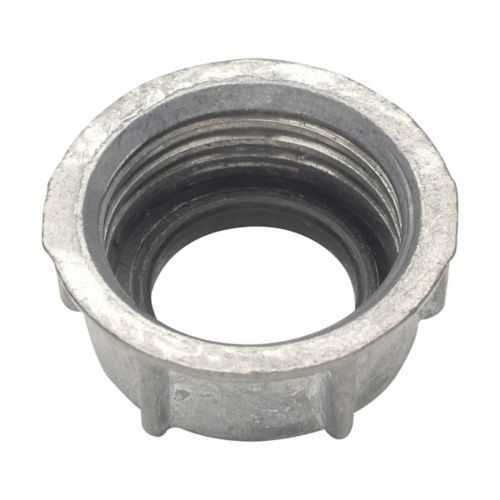

Eaton H1034DC Throat Bushing - Rigid/IMC Insulated
Part Number: H1034DC
Quick Summary
H1034DC throat bushing provides insulated protection for rigid/IMC conduit in panel enclosures. Choosing bushings that maintain electrical isolation while withstanding hot industrial environments is a common sourcing challenge. This H1034DC meets NEC/CEC standards for ordinary/non-hazardous locations and is Canadian-certified for added compliance. Designed for durable attachments in rigid/IMC runs, it delivers reliable insulation and a secure threaded connection, supporting faster installations and lower maintenance costs for electrical panels. This combination helps design engineers meet space constraints, reduce field rework, and simplify procurement by aligning with standard 1-1/4" fittings. Its 150°C temperature rating supports demanding automation environments where equipment heat and sun exposure challenge insulation.
Product Information
Extended Description
H1034DC Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Insulated, Zinc die cast, 150°C, Threaded, 1-1/4"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
H1034DC
UPC
662277003742
Product Length/Depth
3.58 in
Product Height
2.04 in
Product Width
2.04 in
Product Weight
0.07 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Insulator
Insulated
Thread
Threaded
Trade size
1-1/4"
Material
Zinc die cast
Temperature rating
150°C
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC Canadian certification
Insulating and Throat Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - H1034DC
Feature: Zinc die cast body with insulation and a threaded connection provides durable electrical isolation. Business Impact: Enhances protection against environmental contaminants and wear, reducing maintenance and failure risk. Application: Ideal for terminating rigid/IMC conduit in control panels and industrial enclosures. Feature: 150°C temperature rating maintains insulation performance in hot zones near motors and drives. Business Impact: Minimizes insulation breakdown and downtime in high-heat environments. Application: Suitable for automation equipment in demanding manufacturing settings. Feature: 1-1/4" trade size with a reliable threaded design. Business Impact: Enables fast, secure terminations with consistent preload and torque control. Application: Facilitates retrofit and new installations in standard conduit runs. Feature: NEC/CEC compliance and ordinary/non-hazardous area classification. Business Impact: Smooths approvals, reduces regulatory risk, and supports cross-border procurement. Application: Fits North American facilities needing standard conduit terminations. Feature: Compact dimensions and light weight (3.58 in length, 0.07 lb). Business Impact: Improves handling and reduces installation time in tight panel spaces. Application: Beneficial for panel upgrades and space-constrained installations. Feature: Insulated design combined with threaded connection ensures dependable terminations under vibration and temperature cycling. Business Impact: Delivers long-term reliability and lower maintenance needs. Application: Industrial automation, process control, and equipment housings with rigid/IMC conduits.
Get a Quick Quote for a Eaton Crouse-Hinds H1034DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds H1034DC?
Enquire Now
FAQs
H1034DC is designed specifically for rigid/IMC conduits. It uses a threaded connection and a 1-1/4" trade size, allowing straightforward field installation with standard torque. For best results, ensure threads are clean, apply appropriate thread sealant if required by the installation, and torque to the manufacturer’s specification to maintain insulation integrity.
Key specs include zinc die cast construction, insulated design, 1-1/4" trade size, threaded connection, and a 150°C temperature rating. It is intended for ordinary/non-hazardous locations under NEC/CEC standards, ensuring reliable operation in typical industrial settings.
Yes. The H1034DC carries NEC/CEC standards alignment and ordinary/non-hazardous location classification, with Canadian certification support illustrated by UL-based certification references. This makes it suitable for cross-border procurement and installations across North American facilities.
The insulated design plus a 150°C rating protects terminations from heat-related insulation degradation and voltage leakage. This reduces maintenance frequency, minimizes rework, and helps sustain uptime in control panels and equipment housings subjected to heat and vibration.
Key ROI drivers include quick, secure terminations due to the threaded 1-1/4" connection, compatibility with rigid/IMC conduit, and durable insulation that lowers replacement and rework costs. Its compact 3.58 inch length and light weight simplify handling in confined spaces, speeding project timelines.
