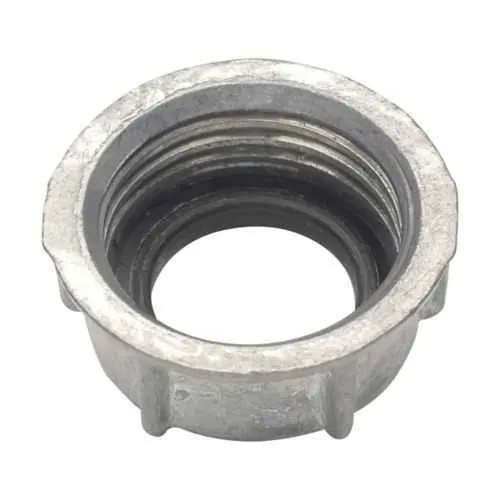

Eaton H1035DC Throat Bushing - Insulated 150°C
Part Number: H1035DC
Quick Summary
Eaton H1035DC throat bushing provides insulated protection for rigid/IMC conduit in industrial panels. Field installations often face heat buildup, abrasion, and misalignment, which can compromise enclosure integrity; this bushing helps mitigate those risks with a robust, threaded, insulated interface. It aligns with NEC/CEC standards for ordinary locations and carries UL Canadian certification, supporting cross-border projects. By enabling a 1-1/2" trade size connection and reliable 150°C performance, it delivers faster installations, reduced maintenance, and long-term reliability for control panels, machine enclosures, and automation cabinets.
Product Information
Extended Description
H1035DC Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Insulated, Zinc die cast, 150°C, Threaded, 1-1/2"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
H1035DC
UPC
662277003759
Product Length/Depth
4.37 in
Product Height
2.03 in
Product Width
2.9 in
Product Weight
0.09 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Insulator
Insulated
Thread
Threaded
Trade size
1-1/2"
Material
Zinc die cast
Temperature rating
150°C
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC Canadian certification
Insulating and Throat Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - H1035DC
Insulated zinc die-cast body delivers robust protection against arcing and heat transfer, directly improving insulation integrity. This reduces failure rates in high-temperature conduit entries and lowers maintenance costs, especially in continuous operation environments such as manufacturing lines and process automation panels. Rigid/IMC compatibility with a threaded connection simplifies installation and sealing, reducing field punch-list items and rework while ensuring a reliable conduit seal for industrial enclosures and control panels. The 1-1/2" trade size and threaded design provide a predictable, standard-fit interface, accelerating wiring and reducing installation time in busy automation environments. A 150°C temperature rating offers dependable performance in elevated-heat areas, ensuring insulation remains intact during peak loads and thermal cycling in panel bays and equipment rooms. NEC/CEC compliance and UL Canadian certification enable seamless cross-border procurement and regulatory acceptance, simplifying project documentation and audits for multinational automation projects. Compact dimensions and lightweight construction support retrofits and upgrades without compromising enclosure space or serviceability, making it ideal for upgrades in existing plants and new line builds.
Get a Quick Quote for a Eaton Crouse-Hinds H1035DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds H1035DC?
Enquire Now
FAQs
H1035DC is designed for rigid/IMC conduit with a threaded connection and a 1-1/2 in trade size. The combination of insulator and zinc die-cast construction provides a secure, temperature-rated interface that simplifies mounting in electrical panels and automation enclosures, reducing alignment issues and rework during field installs.
H1035DC carries NEC/CEC compliance for general-purpose, ordinary locations and UL Canadian certification. These certifications support cross-border procurement, regulatory audits, and installation acceptance in North American facilities, helping you meet documentation requirements and maintain consistent safety standards across sites.
Yes. The product’s UL Canadian certification and NEC/CEC compliance are specifically intended to support cross-border projects. This enables unified sourcing, reduces certification gaps, and streamlines validation during multi-site automation deployments in North America.
The 150°C rating ensures insulation integrity under elevated ambient temperatures and thermal cycling common in control cabinets and machine rooms. This reduces insulation degradation, arc risk at conduit entries, and maintenance downtime, contributing to higher system uptime and predictable performance in demanding automation applications.
The insulated, durable zinc die-cast design minimizes failure modes at conduit entries, reducing arcing risks and maintenance intervals. Its standard 1-1/2" threaded interface accelerates installation, lowers labor costs, and supports long service life in non-hazardous locations, delivering lower lifecycle costs and improved panel reliability for automation projects.
