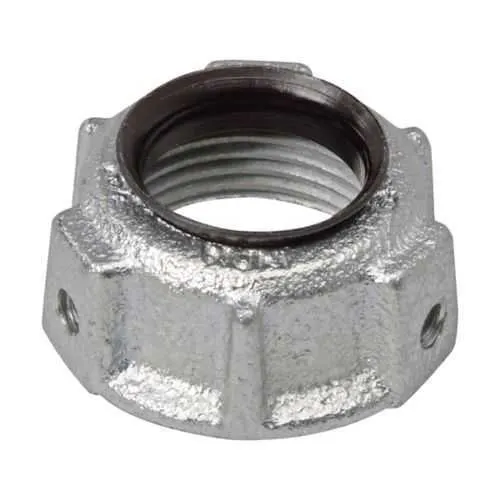

Eaton Crouse-Hinds H1036 throat bushing - NEC/CEC
Part Number: H1036
Quick Summary
Eaton Crouse-Hinds throat bushing H1036 provides insulated termination for rigid/IMC conduit in control panels and electrical enclosures. Professionals often face heat, misalignment, and insulation failures when installing threaded fittings in tight panel spaces. This bushing meets NEC/CEC standards and carries UL certification for rigid-IMC insulated terminations in Ordinary/Non-Hazardous Locations. With a 2" trade size and a 150°C rating, it delivers durable performance while the malleable iron construction supports long-term reliability. Using this solution helps streamline procurement, reduces panel rework, and supports scalable installations in industrial environments by pairing proven insulation with code-compliant design.
Product Information
Extended Description
H1036 Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Insulated, Malleable iron, 150°C, Threaded, 2"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
H1036
UPC
784564112958
Product Length/Depth
2 in
Product Height
0.8 in
Product Width
1.3 in
Product Weight
0.02 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Insulator
Insulated
Thread
Threaded
Trade size
2"
Material
Malleable iron
Temperature rating
150°C
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC UL certification
Insulating and Throat Bushings - Rigid-IMC UL certification
Feature: Insulated, threaded throat bushing for rigid/IMC conduit. Business Impact: Improves insulation integrity and reduces arcing risk in control panels, minimizing rework and warranty costs. Application: Ideal for electrical enclosures in industrial automation environments where insulation performance matters. Feature: 2 inch trade size with 150°C rating. Business Impact: Handles higher temperature environments around motors and drives, extending component life and reducing maintenance cycles. Application: Suitable for machinery areas with elevated heat sources. Feature: Malleable iron body. Business Impact: Delivers rugged durability and resistance to mechanical stress in harsh production floors, lowering replacement frequency. Application: Used in outdoor or dusty facilities where fittings endure physical impact. Feature: Insulated construction with threaded connection. Business Impact: Simplifies installation, ensures tight, code-compliant seals, and reduces leakage paths for dust and moisture. Application: Rapid terminations in control cabinets and junction boxes. Feature: NEC/CEC compliance with UL certification. Business Impact: Verifies regulatory alignment across US and Canada, streamlining approvals and procurement. Application: Suitable for Ordinary/Non-Hazardous Locations in diverse industrial plants. Insight: In real-world deployments, the H1036 aligns with standard conduit fittings ecosystems, enabling quicker onboarding of new technicians and reducing commissioning time in mid to large-scale automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds H1036
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds H1036?
Enquire Now
FAQs
H1036 is designed for insulated terminations of rigid/IMC conduit into electrical enclosures and control panels. It supports 2" trade size fittings, provides a threaded connection, and uses a malleable iron body rated at 150°C, making it ideal for industrial automation environments where robust, code-compliant conduit terminations are required.
H1036 aligns with NEC/CEC standards for rigid/IMC conduit fittings and carries UL certification for insulation in Ordinary/Non-Hazardous Locations. This combination simplifies regional compliance, supports Canada and US installations, and reduces certification risk during audits and inspections.
Yes. H1036 is specified as a rigid/IMC conduit throat bushing with a threaded connection, insulated construction, and a 2" trade size. It integrates smoothly with standard threaded rigid or IMC conduits, enabling reliable, leak-resistant terminations.
When selecting a 2" trade size throat bushing like H1036, ensure the conduit outer diameter matches the 2" trade size spec, use compatible threaded fittings, and observe the 150°C temperature rating for high-heat zones. Verify NEC/CEC compliance for non-hazardous locations and consider UL certification during procurement to meet regional requirements.
Using H1036 provides insulated, code-compliant terminations that streamline installation, reduce rework, and improve enclosure reliability. The combination of NEC/CEC compliance, UL certification, and robust malleable iron construction supports quicker approvals, lower maintenance costs, and dependable operation in normal industrial environments.
