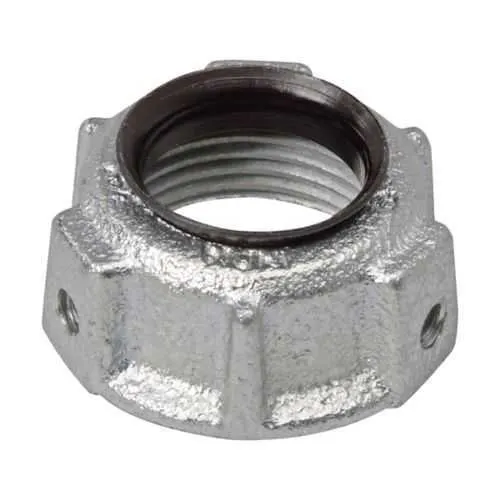

Eaton H1037 Throat Bushing - Rigid/IMC, Insulated, 150°C
Part Number: H1037
Quick Summary
The Eaton H1037 throat bushing is a threaded, insulated conduit adapter for rigid/IMC installations in electrical enclosures. It delivers reliable, tight seating to reduce ingress and insulation wear, addressing common field issues like loose fittings and arcing. This solution aligns with NEC/CEC standards and UL documentation, suitable for Ordinary/Non-Hazardous Locations, ensuring safe operation in standard industrial environments. Its malleable iron construction, 150°C temperature rating, and 2-1/2" trade size support long service life while minimizing maintenance costs. Its sturdy design and readily available documentation help procurement streamline sourcing, stocking, and field installation. In practice, the H1037 improves installation consistency, supports interchangeability across sites, and reduces downtime during conduit updates. The combination of robust material, insulation, and standard conformity delivers measurable business value in control panels and equipment housings.
Product Information
Extended Description
H1037 Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Insulated, Malleable iron, 150°C, Threaded, 2-1/2"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
H1037
UPC
784564112965
Product Length/Depth
3.31 in
Product Height
1 in
Product Width
3.31 in
Product Weight
0.51 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Insulator
Insulated
Thread
Threaded
Trade size
2-1/2"
Material
Malleable iron
Temperature rating
150°C
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC UL certification
Insulating and Throat Bushings - Rigid-IMC UL certification
Eaton Specification Sheet - H1037
Feature: Insulated, malleable iron throat bushing for sealed, durable threaded connections → Business Impact: Reduces arcing risk and core losses while extending component life in temperature-affected environments → Application: Ideal for control panels and electrical enclosures using rigid/IMC conduits. Feature: 2-1/2" trade size with 3.31 in length and 3.31 in width; weight 0.51 lb → Business Impact: Compact, easy-to-handle installation with predictable fitment and shipping efficiency → Application: Suitable for standard IMC conduit runs in machine rooms and racks. Feature: Temperature rating of 150°C → Business Impact: Maintains insulation and performance under thermal cycling common in industrial processes → Application: High-temperature environments like motor drives or transformers where heat buildup occurs. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous location suitability → Business Impact: Streamlines compliance workflows and reduces risk of non-conforming installations → Application: Preferred choice for non-hazardous industrial facilities and general-purpose conduit installations. Feature: Threaded conduit type for rigid/IMC compatibility → Business Impact: Fast, repeatable installations with secure connections and reduced torque variance → Application: Electrical panels, junction boxes, and equipment enclosures requiring reliable threaded fittings. Feature: Documentation and certification coverage (UL certification pages, specification sheet) → Business Impact: Supports audit trails and regulator verification, decreasing validation effort during procurement → Application: Procurement and QA teams benefit from clear, accessible compliance data. Note: This product aligns with standard industry practices for insulating throat bushings and is compatible with existing rigid/IMC infrastructure, aiding maintenance teams in achieving consistent performance across installations.
Get a Quick Quote for a Eaton Crouse-Hinds H1037
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds H1037?
Enquire Now
FAQs
To install H1037, thread the bushing into the enclosure or conduit opening until seated, ensure the IMC conduit threads engage cleanly, and torque to manufacturer recommendations. Verify insulation remains intact and the face sits flush against the enclosure to prevent ingress. The 2-1/2" trade size aligns with standard IMC fittings, simplifying stocking and interchangeability.
Key specs include a 150°C temperature rating, insulated construction, and malleable iron material. These features minimize insulation degradation and arcing risk during thermal cycling. The 3.31 in length and 3.31 in width provide a stable mounting footprint for secure, long-lasting connections in control panels and equipment housings.
Yes. The product is categorized for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, making it suitable for typical industrial facilities and non-hazardous parts of control cabinets where standard conduit fittings are required.
UL certifications for Rigid-IMC throat bushings are documented in the product downloads. Refer to the UL certification pages and Eaton’s specification sheet to confirm compliance for your region. This supports audit readiness and regulatory verification during procurement and installation.
The insulated, threaded design reduces insulation wear and arcing, lowering maintenance frequency and downtime. Its compact dimensions and compatibility with standard rigid/IMC fittings simplify stocking and field replacement, delivering lower total cost of ownership and faster repairs across diverse sites.
