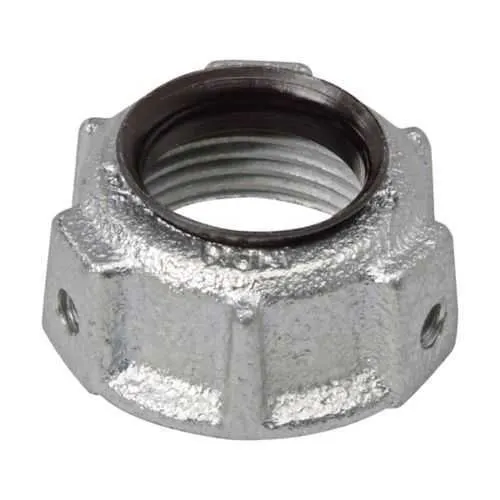

Eaton Crouse-Hinds H1041 Throat Bushing - Rigid/IMC 150°C
Part Number: H1041
Quick Summary
Eaton Crouse-Hinds throat bushing is a durable insulated fitting that enables secure termination for rigid/IMC conduit in electrical enclosures. Engineers often struggle with improper seals, insulation breakdown, and costly rework when using non-rated bushings. The H1041 supports NEC/CEC compliance and UL certification for rigid-IMC installations in ordinary/non-hazardous locations, with a 150°C temperature rating. Selecting this threaded, insulated throat bushing reduces installation time, protects conductors from abrasion, and minimizes downtime. This solution is compatible with 5 inch trade sizes and fits standard conduit fittings, delivering reliability and cost-efficient lifecycle performance for industrial facilities.
Product Information
Extended Description
H1041 Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Insulated, Malleable iron, 150°C, Threaded, 5"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
H1041
UPC
784564953810
Product Length/Depth
1.9 in
Product Height
0.8 in
Product Width
1.3 in
Product Weight
0.02 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Insulator
Insulated
Thread
Threaded
Trade size
5"
Material
Malleable iron
Temperature rating
150°C
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC UL certification
Insulating and Throat Bushings - Rigid-IMC UL certification
Feature: Malleable iron body with insulation provides robust mechanical protection and thermal resistance, reducing insulation damage and arcing risks in harsh environments. Business Impact: Fewer field failures and lower maintenance costs over the life of the installation. Application: Best suited for rigid/IMC conduit runs in factory floors and process areas where heat and vibration are present. Feature: Threaded connections offer secure, leak-free terminations. Business Impact: Faster installation with predictable torque and reliable sealing, cutting downtime during commissioning. Application: Suitable for panel enclosures and junction boxes that require dependable threaded bushings. Feature: 150°C temperature rating. Business Impact: Maintains insulation integrity in high-heat environments, preventing premature degradation. Application: Electrical rooms, motors, and equipment bays with elevated ambient temperatures. Feature: 5-inch trade size with rigid/IMC conduit compatibility. Business Impact: Easy integration into standard conduit circuits, reducing part variety and stocking needs. Application: Common industrial conduit networks and retrofit projects. Feature: NEC/CEC standards compliance and UL certification for rigid-IMC installations in ordinary locations. Business Impact: Regulatory alignment minimizes compliance risk and supports audit readiness. Application: Facility-wide electrical installations requiring certified conduit fittings. Feature: Lightweight construction (0.02 lb) and compact form. Business Impact: Safer handling and simpler installation in tight spaces, reducing installation labor. Application: Enclosures, panels, and crowded electrical rooms where space is at a premium.
Get a Quick Quote for a Eaton Crouse-Hinds H1041
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds H1041?
Enquire Now
FAQs
To install the H1041, ensure the conduit end is clean and beveled, thread the bushing onto the rigid/IMC conduit, and torque to the manufacturer's specification to achieve a proper seal. Use appropriate thread sealant if recommended, and verify insulation integrity after installation to prevent conductive exposure and arcing.
Key specs include a 5" trade size, rigid/IMC conduit compatibility, insulating/insulated construction, threaded connections, 1.9 in length, 0.8 in height, 1.3 in width, and weight of 0.02 lb. It is rated up to 150°C and complies with NEC/CEC standards, with UL certification for rigid-IMC use.
Yes. The H1041 is designed for ordinary/non-hazardous locations and conforms to NEC/CEC standards. It also carries UL certification for rigid-IMC conduit, providing regulatory assurance for standard industrial facilities.
The H1041 carries UL certification for Rigid-IMC conduit applications in both the US and Canada, as indicated by UL certification listings linked in the product data. This supports cross-border compliance in multinational facilities.
The H1041 offers reliable insulation, durable malleable iron construction, and a threaded design that speeds installation and reduces rework. Compliance with NEC/CEC and UL-certified US/Canada listings lowers regulatory risk, while its lightweight, compact form simplifies handling and inventory management.
