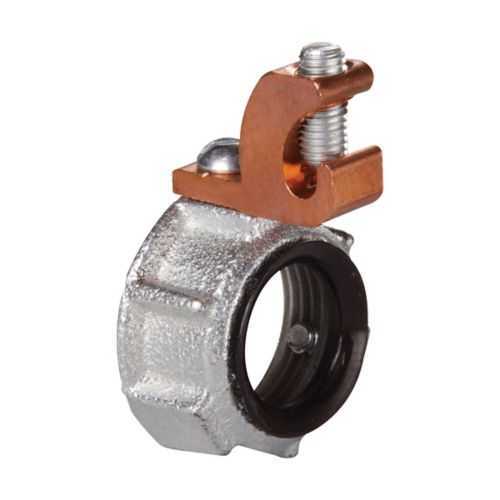

Eaton HGLL1C Grounding Bushing - Threaded 1/2 in - NEC/CEC
Part Number: HGLL1C
Quick Summary
HGLL1C grounding bushing provides a reliable ground path for rigid/IMC conduit installations in industrial panels and enclosures. Engineers frequently face inconsistent grounding and corrosion resistance in tight control cabinets, leading to safety and downtime concerns. This part aligns with NEC/CEC standards and is approved for Ordinary/Non-Hazardous Locations, with a robust 150°C rating for high temperature environments. The copper lug supports 4-14 AWG conductors and a 1/2 in trade size, simplifying wiring and reducing assembly time. Built from malleable iron, it combines durability with ease of OEM integration, helping maintain continuity across assemblies and improving overall system reliability for OEMs and end users.
Product Information
Extended Description
HGLL1C Eaton Crouse-Hinds: Eaton Crouse-Hinds series HGLL grounding bushing, Rigid/IMC, Copper lug, #4-14 AWG, Malleable iron, 150°C, Threaded, 1/2"
Product Name
Eaton Crouse-Hinds series HGLL grounding bushing
Catalog Number
HGLL1C
UPC
784564113351
Product Length/Depth
1.06 in
Product Height
0.69 in
Product Width
4.06 in
Product Weight
0.12 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Temperature rating
150°C
Lug material
Copper
Thread
Threaded
Trade size
1/2"
Lug size
#4-14 AWG
Material
Malleable iron
Eaton Crouse-Hinds HGLL1C 3D drawing
Crouse-Hinds series Grounding Bushings - Rigid-IMC catalog page
Grounding Bushings - Rigid-IMC Canadian certification
Grounding Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - HGLL1C
Feature: Threaded 1/2 in trade size provides a secure mechanical and electrical interface, enabling quick installation and reliable grounding in high vibration equipment. Business impact: reduces retrofit time and ensures consistent contact resistance. Application: control panels, motor starters, and junctions where rigid IMC grounds are required. Feature: Copper lug rated for 4-14 AWG conductors delivers low impedance grounding with minimal voltage drop, improving fault-clearing performance in compact enclosures. Application: panel grounds inside automation racks and MCCs. Feature: Malleable iron body offers high strength and durability in harsh industrial environments, resisting deformation under mounting loads and vibration. Application: outdoor enclosures and factory floors with exposure to handling. Feature: Temperature rating of 150°C supports operation in high temperature zones such as near motors or welding stations, ensuring stability and long life. Application: heat-affected areas and temperature-variable environments. Feature: Area classification Ordinary/Non-Hazardous Locations keeps installation costs down while meeting NEC/CEC compliance for typical manufacturing settings. Application: general-purpose industrial facilities. Feature: NEC/CEC standards alignment confirms regulatory compliance for design reviews, commissioning, and procurement.
