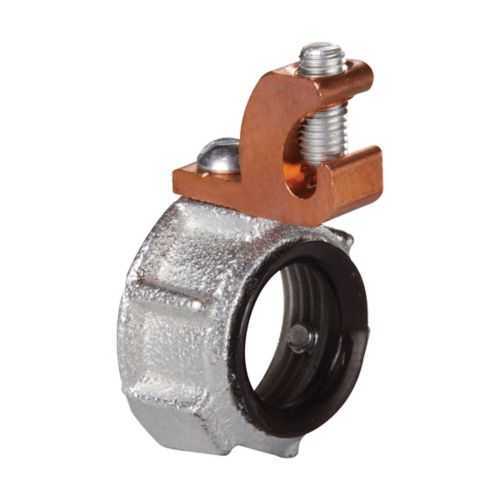

Eaton Crouse-Hinds HGLL2C Grounding Bushing - NEC/CEC
Part Number: HGLL2C
Quick Summary
HGLL2C grounding bushing terminates rigid/IMC conduit for equipment grounding in control panels. This minimizes field complexity by delivering a secure, threaded connection in tight spaces. The product aligns with NEC/CEC standards and UL Canada certifications, and it is rated to 150°C to withstand demanding environments. For engineers and procurement teams, it delivers reliable copper lug grounding with a malleable iron body, reducing installation time and ensuring dependable performance in ordinary/non-hazardous locations. By combining copper lug versatility with robust construction, this grounding solution supports compliant, low-impedance grounding across industrial automation projects and rigid/IMC conduit networks.
Product Information
Extended Description
HGLL2C Eaton Crouse-Hinds: Eaton Crouse-Hinds series HGLL grounding bushing, Rigid/IMC, Copper lug, #4-14 AWG, Malleable iron, 150°C, Threaded, 3/4"
Product Name
Eaton Crouse-Hinds series HGLL grounding bushing
Catalog Number
HGLL2C
UPC
784564113368
Product Length/Depth
1.25 in
Product Height
0.69 in
Product Width
1.25 in
Product Weight
0.14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Temperature rating
150°C
Lug material
Copper
Thread
Threaded
Trade size
3/4"
Lug size
#4-14 AWG
Material
Malleable iron
Eaton Crouse-Hinds HGLL2C 3D drawing
Crouse-Hinds series Grounding Bushings - Rigid-IMC catalog page
Grounding Bushings - Rigid-IMC Canadian certification
Grounding Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - HGLL2C
Rigid/IMC compatibility and threaded design deliver a secure mechanical and electrical connection that stays tight in vibration-prone environments. This reduces loosening and intermittent grounding issues, cutting maintenance calls and rework in busy panel shops. Ideal for control panels, motor control centers, and industrial enclosures where space is tight and connections must endure thermal cycling. Copper lug provides a low impedance grounding path for #4-14 AWG conductors, improving electrical continuity and reducing heat build-up in energized equipment. This translates to more reliable uptime and reduced energy losses across feeders and branch circuits. The malleable iron body withstands high temperatures with a 150°C rating, delivering lasting durability in harsh industrial environments and maintaining performance through thermal transients. The 3/4" trade size and threaded design ensure straightforward installation with standard IMC fittings, minimizing field fabrication and installation time. Certifications and compliance are built in, supporting NEC/CEC conformity and UL Canada listings for non-hazardous locations, which simplifies procurement and reduces risk during audits. This grounding solution is ready for integration with rigid conduit systems, offering proven reliability for control rooms, packaging lines, and automated processes.
Get a Quick Quote for a Eaton Crouse-Hinds HGLL2C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds HGLL2C?
Enquire Now
FAQs
HGLL2C uses a threaded connection to secure a copper lug for #4-14 AWG conductors on rigid/IMC conduit. Ensure the conduit is clean and aligned, thread the bushing onto the IMC enclosure or knockout, snug the connection with the appropriate wrench, and install the copper lug with the conductor, following NEC guidelines for torque and conductor termination. This minimizes loosening from vibration and ensures a solid electrical path.
HGLL2C is rated for 150°C and uses a copper lug suitable for #4-14 AWG conductors. It is designed for a 3/4 inch trade size and compatible withRigid/IMC conduit. The body is malleable iron, and the threaded design provides a secure, low-resistance grounding path appropriate for industrial grounding applications.
HGLL2C is specified for Ordinary/Non-Hazardous Locations per its area classification. For installations in hazardous areas, consult project-specific codes and certification listings, and verify if additional ratings or enclosures are required. NEC/CEC compliance and UL Canada certification support broad non-hazardous applications in typical industrial environments.
Yes. HGLL2C complies with NEC/CEC standards and is UL Canada certified for grounding bushings. Canadian listings are supported by UL certification pages, and the product is intended for ordinary/non-hazardous locations, simplifying regulatory approvals and audits in North American facilities.
The HGLL2C reduces installation time with a threaded, ready-to-use grounding path and a copper lug for reliable low-resistance connections. Its 150°C rating and durable malleable iron body extend service life in high-heat environments, improving uptime, reducing maintenance costs, and ensuring NEC/CEC compliance across rigid/IMC conduit networks in control panels and MCCs.
